| Specification | Details |
|---|---|
| Status Indicators | LEDs & LCD Display |
| Network Management | SNMP/Webcard |
| Maximum Operating Temperature | 40°C |
| Maximum Operating Elevation | 3 km |
| TAA Compliant | No |
| Energy Star | Yes |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Weight (Approximate) | 70.80 kg |
| Form Factor | Rack/Tower |
| Rack Height | 5U |
| Height | 217 mm |
| Width | 430 mm |
| Depth | 630 mm |
| Application/Usage | Banking, Business, Edge Computing, Financial, IoT Device, Healthcare, Telecommunication, Retail and Wholesale, Mission Critical Equipment, IT Equipment |
| Phase | Single Phase |
| Receptacle Type | IEC 60320 C19, IEC 60320 C13 |
| EMI/RFI Noise Filter | Yes |
| Transfer Time | 0 ns |
| Receptacle Detail | 2 x IEC 60320 C19, 6 x IEC 60320 C13 |
| Product Type | Double Conversion Online UPS |
| Manufacturer Part Number | GXT55000IRT5UXLN |
| Manufacturer | Vertiv |
| Product Model | GXT5-5000IRT5UXLN |

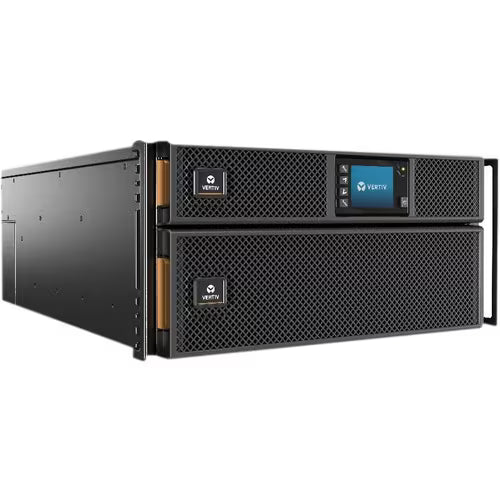

| Product Name | GXT5 UPS - 5000VA/5000W 230V Online Double Conversion UPS |
| Product Series | GXT5 |
| Brand Name | Vertiv Liebert |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Number of Batteries | 16 |
| Backup/Run Time (Half Load) | 19 Minute |
| Backup/Run Time (Full Load) | 7 Minute |
| Battery Characteristics | Valve-regulated, Non-spillable |
| Replaceable Battery | Yes |
| Number of External Battery Cabinets | 10 |
| Input Voltage | 230 V AC |
| Output Voltage | 208 V AC, 200 V AC, 240 V AC, 230 V AC, 220 V AC |
| Waveform Type | Pure Sine Wave |
| Input Voltage Range | 176 V AC - 288 V AC |
| Output Frequency | 60 Hz |
| Input Frequency | 70 Hz |
| Load Capacity (VA) | 5 kVA |
| Load Capacity (Watt) | 5 kW |
