Vertiv EDGE UPS In Line 750VA 230V Tower Less

Vertiv EDGE UPS In Line 750VA 230V Tower Less

Vendor: Vertiv
SKU: EDGE-750IMT
£223.37
£223.37
Subtotal: £223.37

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Vertiv EDGE UPS In Line 750VA 230V Tower Less

Vertiv EDGE UPS In Line 750VA 230V Tower Less

£223.37
Vertiv EDGE UPS In Line 750VA 230V Tower Less

Vertiv EDGE UPS In Line 750VA 230V Tower Less

£223.37
Description
Description
x

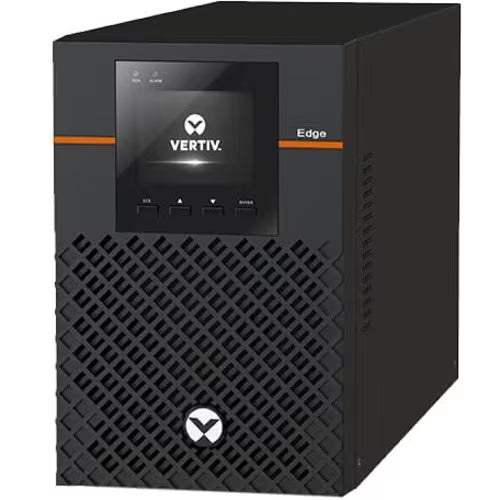

Vertiv EDGE UPS In Line 750VA 230V Tower The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. This 750VA UPS mini-tower offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and is available in multiple form factors: mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.
Features
Features
x
  • 750 VA UPS with advanced AVR for more stable output voltage regulation
  • Line-interactive UPS with 0.9 output power factor, providing more active power to protect larger loads
  • Plug-and-play battery backup that does not require installation or rack space
  • Add a communication card to this single-phase UPS for convenient remote device management
  • 5 total outlets, including 2 programmable outlets, to prioritize critical loads and achieve longer runtime
Technical Specs
Technical Specs
x
Specification Details
Network Management SNMP/Webcard
Maximum Operating Temperature 40°C
Maximum Operating Elevation 3 km
EPO Port Yes
USB (HID Compliant) Port Yes
Package Contents EDGE-750IMT 750VA Tower UPS; USB Cable; Printed Quick Installation and Safety Guide; Adjustable 4-post Rack Mounting Kit; Support Base for Tower Configuration; Input and Output Power Cables
Software Included Power Assist
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS); Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Weight (Approximate) 11 kg
Form Factor Tower
Rack Height 1U
Height 220 mm
Width 145 mm
Depth 370 mm
Application/Usage IoT Device; Business; Critical System; Data Center; Data Storage; Edge Computing; Server; Network; IT Equipment; Electronic
Plug/Connector Type IEC 60320 C14
Phase Single Phase
Receptacle Type IEC 60320 C13
AVR Yes
Transfer Time 6 ms
Receptacle Detail 5 × IEC 60320 C13
Product Type Line-interactive UPS
Manufacturer Part Number EDGE-750IMT
Manufacturer Vertiv
Product Model EDGE-750IMT
Product Name EDGE-750IMT 750VA Tower UPS
Product Line EDGE
Brand Name VERTIV
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Number of Batteries 2
Backup/Run Time (Half Load) 17 Minute
Backup/Run Time (Full Load) 5.90 Minute
Battery Characteristics Valve-regulated, Non-spillable
DC System Voltage 24 V DC
Typical Battery Recharge Time 3 Hour
Number of External Battery Cabinets 6
Input Voltage 230 V AC
Output Voltage 208 V AC; 200 V AC; 220 V AC; 240 V AC; 230 V AC
Surge Energy Rating 624 J
Waveform Type Sine Wave
Input Voltage Range 166 V AC - 278 V AC
Input Frequency 65 Hz
Load Capacity (VA) 750 VA
Load Capacity (Watt) 675 W
