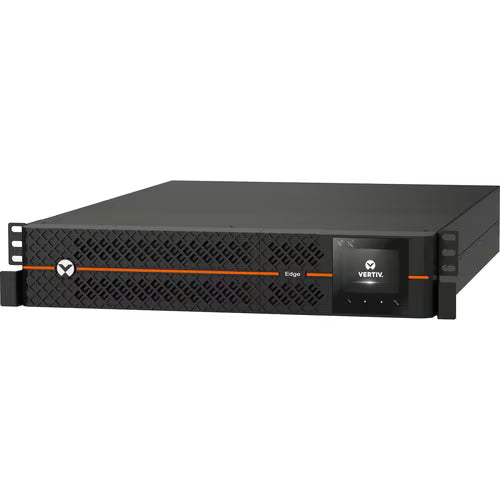

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

Vendor: Vertiv
SKU: EDGE-2200IRT2UXL
£538.89
£538.89
Subtotal: £538.89

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

£538.89
Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase

£538.89
Description
Description
x
Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount Battery Backup Single Phase |0.9 PF (EDGE-2200IRT2UXL) - Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty | Network Edge The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.
Features
Features
x
  • 2200 VA UPS with advanced AVR for more stable output voltage regulation
  • Line-interactive UPS with 0.9 output power factor, providing more active power to protect larger loads
  • Extended runtime capability with external battery cabinets featuring autodetection for hours of backup time
  • Add a communication card to this single-phase UPS for convenient remote device management
  • 6 total outlets, including 3 programmable outlets, to prioritize critical loads and achieve longer runtime
Technical Specs
Technical Specs
x
Specification Details
Status Indicators Color and graphic LCD
Alarm Yes
Sound Emission 45 dB
Maximum Operating Temperature 40°C
USB Yes
USB (HID Compliant) Port Yes
Plug/Connector Type IEC 60320 C20
Phase Single Phase
Receptacle Type IEC 60320 C13; IEC 60320 C19
Transfer Time 6 ms
Receptacle Detail 6 x IEC 60320 C13; 1 x IEC 60320 C19
Product Type Line-interactive UPS
Manufacturer Part Number EDGE-2200IRT2UXL
Manufacturer Vertiv
Product Model EDGE-2200IRT2UXL
Product Name EDGE EDGE-2200IRT2UXL 2200VA Tower UPS
Product Line EDGE
Brand Name VERTIV
Battery Chemistry Lead Acid
Hot Swappable Yes
Battery Size 12V
Battery Capacity 7000 mAh
Number of Batteries 6
Backup/Run Time (Half Load) 14 Minute
Backup/Run Time (Full Load) 4.40 Minute
Battery Characteristics Valve-regulated, Non-spillable
DC System Voltage 72 V DC
Typical Battery Recharge Time 3 Hour
Package Contents EDGE EDGE-2200IRT2UXL 2200VA Tower UPS; Support Base for Tower Configuration; USB Cable; Power Assist Software (free download from Vertiv.com); Safety Manual; Quick Installation Guide; Input and Output Power Cables (depending on rating and model type)
Software Included Power Assist
Country of Origin China
Environmentally Friendly Yes
TAA Compliant No
Energy Star No
Environmental Compliance Registration, Evaluation, Authorization and Restriction of Chemicals (REACH); Restriction of Hazardous Substances (RoHS)
Weight (Approximate) 27 kg
Form Factor Rack/Tower
Rack Height 2U
Height 88 mm
Width 438 mm
Depth 630 mm
Product Color Black
Color Family Black
Circuit Breaker Yes
Input Voltage 278 V
Output Voltage 220 V AC; 200 V AC; 208 V AC; 240 V AC; 230 V AC
Waveform Type Pure Sine Wave
Input Voltage Range 144 V AC - 290 V AC
Input Frequency 65 Hz
Load Capacity (VA) 2.20 kVA
Load Capacity (Watt) 1.98 kW
