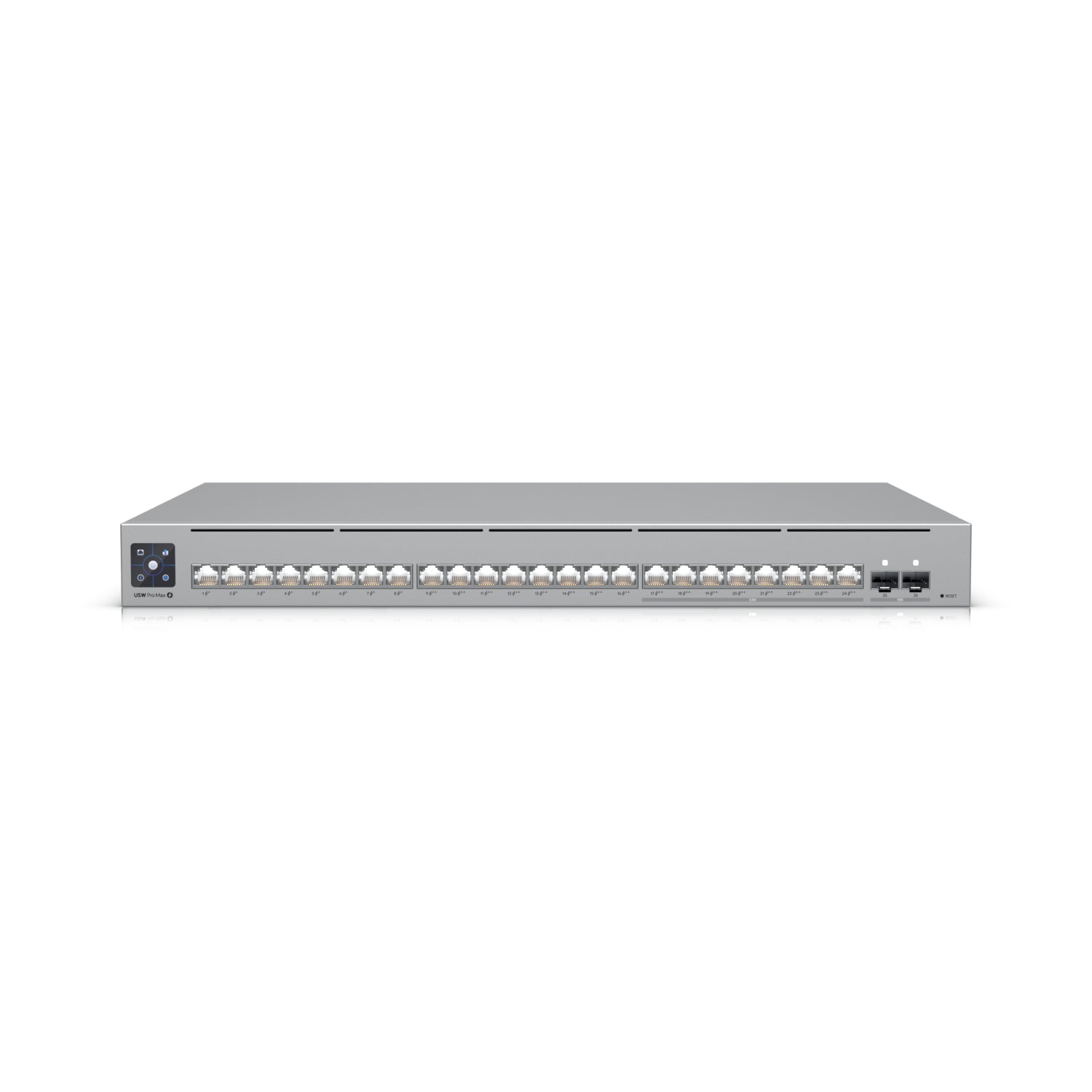

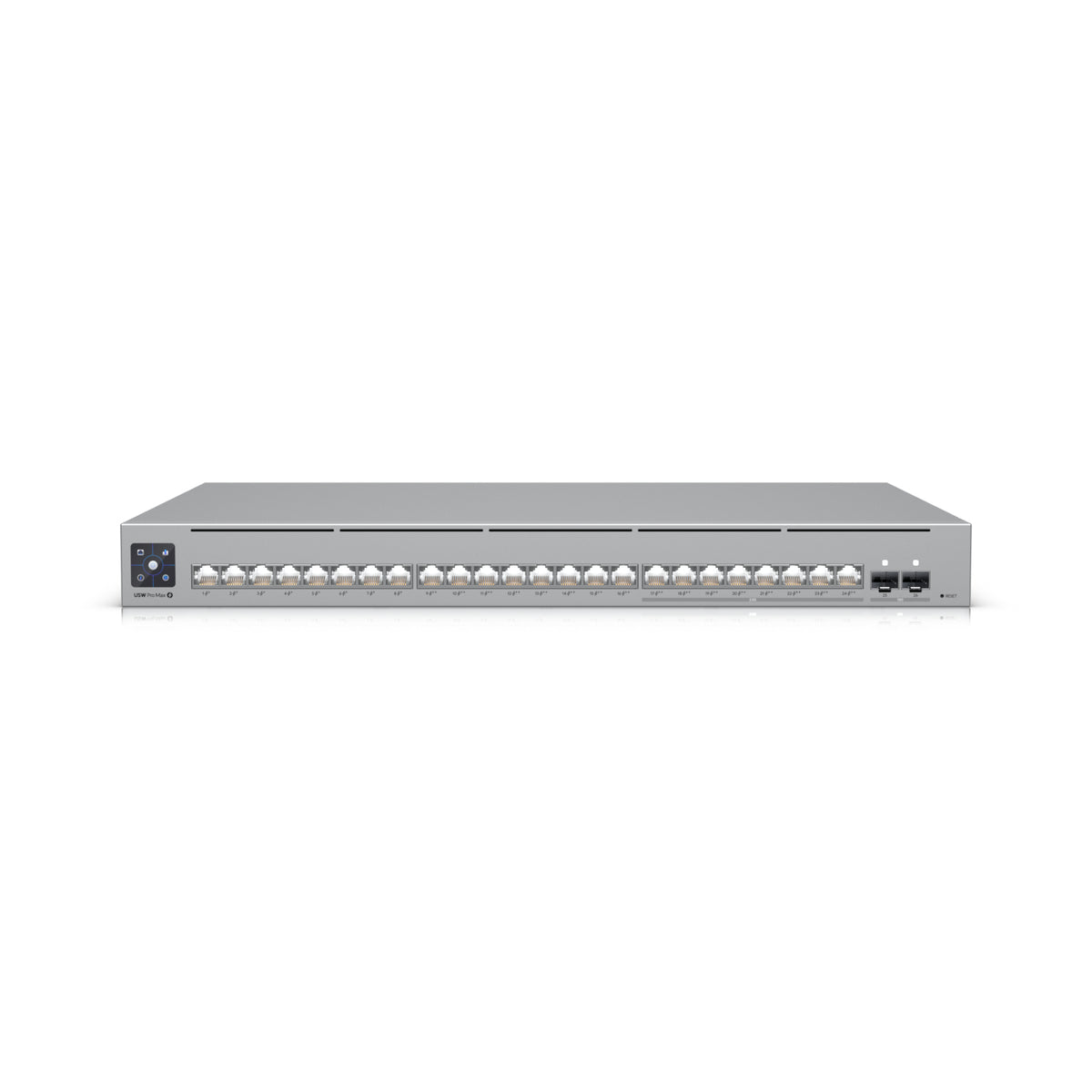

Ubiquiti USW-Pro-Max-24-PoE L3 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Grey
Vendor:
Ubiquiti
SKU:
USW-Pro-Max-24-PoE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xA 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| RJ-45 Ports | 24 × 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet Ports | 16 × Gigabit Ethernet |
| 2.5G Ethernet Ports | 8 × 2.5G Ethernet |
| 10G Ethernet Ports | 2 × 10G Ethernet |
| Installed SFP+ Modules | 2 |
| PoE Support | Yes |
| PoE Ports | 8 |
| PoE+ Ports | 8 |
| PoE++ (4PPoE) Ports | 8 |
| PoE Power per Port | Up to 15.4 W |
| PoE Voltage | 57 V |
| Total PoE Budget | 400 W |
| Switching Capacity | 112 Gbps |
| Throughput | 56 Gbps |
| VLAN Support | Yes |
| 10G Support | Yes |
| Reset Button | Yes |
| Display | LCM with Backlight |
| Stackable | Yes |
| Form Factor | Rack Mount |
| Rack Mountable | Yes |
| Housing Material | SGCC |
| Product Color | Grey |
| LED Indicators | Link, Network, Speed, Status |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Redundant Power Supply (RPS) | Yes |
| Power Consumption (Max) | 50 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442.4 × 325 × 43.7 mm |
| Weight | 5.1 kg |
| Package Contents | Rack Mount Kit, Power Cable |
| Sustainability Compliance | Yes |
| Compliance Certifications | CE, FCC |
