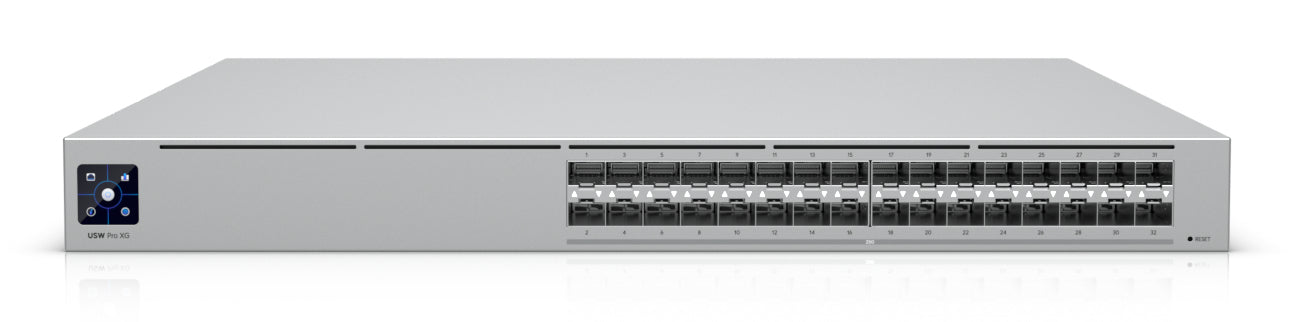

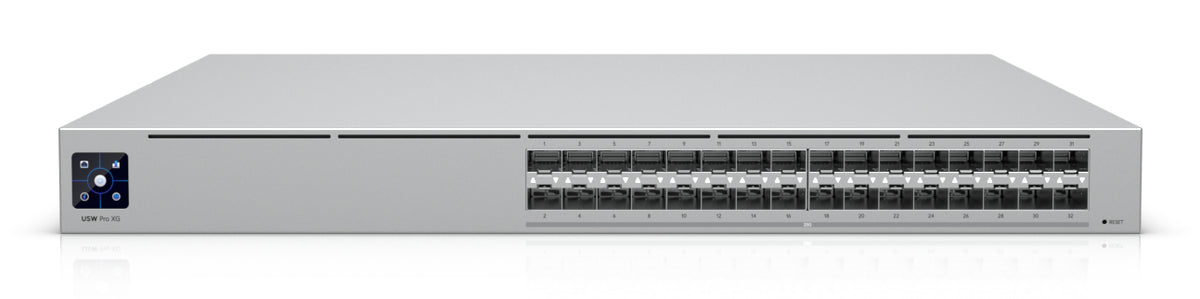

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

Vendor: Ubiquiti
SKU: USW-PRO-XG-AGGREGATION
£0.00
£0.00
Subtotal: £0.00

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

£0.00
Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi Pro XG Aggregation Managed L2/L3 1U Grey

£0.00
Description
Description
x
Professional-grade 32-port, Layer 3 Etherlighting™ switch for high-capacity 25G SFP28 connections.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Product Type Managed Ethernet Switch
Switch Type Managed
Switch Layer Layer 2 / Layer 3 (L2/L3)
RJ-45 Ports None
SFP28 Ports 32 × SFP28
PoE Support No
Switching Capacity 1600 Gbps
Forwarding Rate 1200 Mpps
Throughput 800 Gbps
Packet Buffer 8 MB
MAC Address Table 32,000 Entries
Jumbo Frames Supported
Static Routing Yes
VLAN Support Yes (Up to 1000 VLANs)
Interface-based VLAN Yes
Voice VLAN Yes
IPv4 Routes 256,000
IGMP Snooping Yes
Port Mirroring Yes
Rate Limiting Yes
Flow Control Yes
Broadcast Storm Control Yes
Loop Protection Yes
DHCP Features DHCP Guarding, DHCP Relay, DHCP Server, DHCPv6 Snooping
QoS Support Yes
Multicast Support Yes
10G Support Yes
Display LCM with Backlight
Reset Button Yes
Form Factor 1U Rack Mount
Rack Mountable Yes
Stackable Yes
Product Color Grey
Housing Material SGCC
Power Supply Included
Power Source AC/DC
Power Consumption (Max) 200 W
Redundant Power Supply (RPS) Yes
AC Input Voltage 100–240 V
AC Input Frequency 50/60 Hz
Operating Temperature -5°C to 40°C
Operating Humidity 10%–90% RH
Dimensions (W × D × H) 442.4 × 480 × 43.7 mm
Weight 7 kg
Rack Mount Kit Included
Cables Included Power Cable
Compliance Certifications CE, FCC, IC, NDAA
