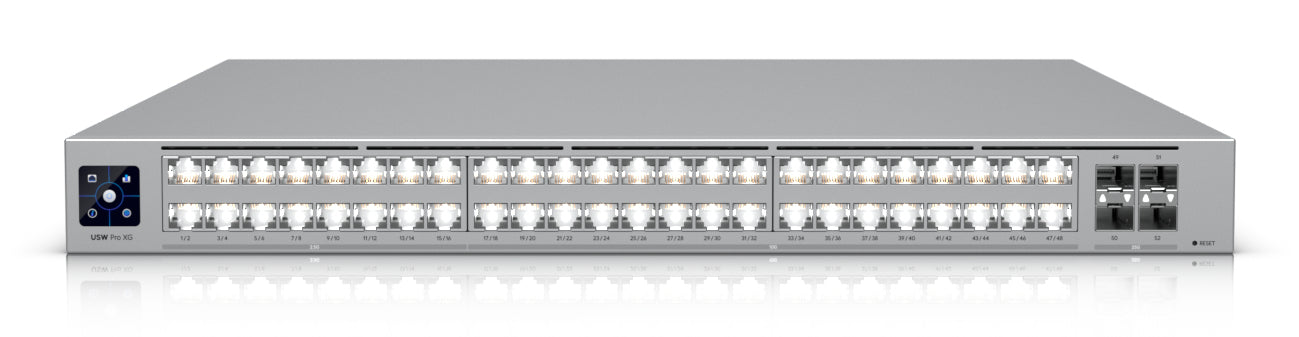

Ubiquiti UniFi Pro XG 48 Managed L2/L3 10G Ethernet (100/1000/10000) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-XG-48
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xProfessional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2 / Layer 3 (L2/L3) |
| RJ-45 Ports | 48 × 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet Ports | 16 |
| 10G Ethernet Ports | 32 |
| SFP28 Ports | 4 × SFP28 |
| PoE Support | No |
| PoE Power per Port | N/A |
| Total PoE Budget | N/A |
| Switching Capacity | 920 Gbps |
| Forwarding Rate | 684 Mpps |
| Throughput | 460 Gbps |
| Packet Buffer Memory | 8 MB |
| MAC Address Table | 128,000 Entries |
| Jumbo Frames | Yes |
| Static Routing | Yes |
| VLAN Support | Yes |
| Maximum VLANs | 1,000 |
| VLAN Features | Interface-based VLAN, Voice VLAN |
| IPv4 Routes | 256,000 |
| ACL IPv4 Entries | 256 |
| Port Mirroring | Yes |
| Flow Control | Yes |
| Rate Limiting | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| Loop Protection | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Server, DHCPv6 Snooping |
| Multicast Support | Yes |
| Quality of Service (QoS) | Yes |
| 10G Support | Yes |
| Display | LCM with Backlight |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Stackable | Yes |
| Product Color | Grey |
| Housing Material | SGCC |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Power Consumption (Max) | 250 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Redundant Power Supply (RPS) | Yes |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442 × 480 × 44 mm |
| Weight | 7.5 kg |
| Compliance Certifications | CE, FCC, IC, NDAA |
| Package Contents | Rack Mount Kit, Power Cable |
