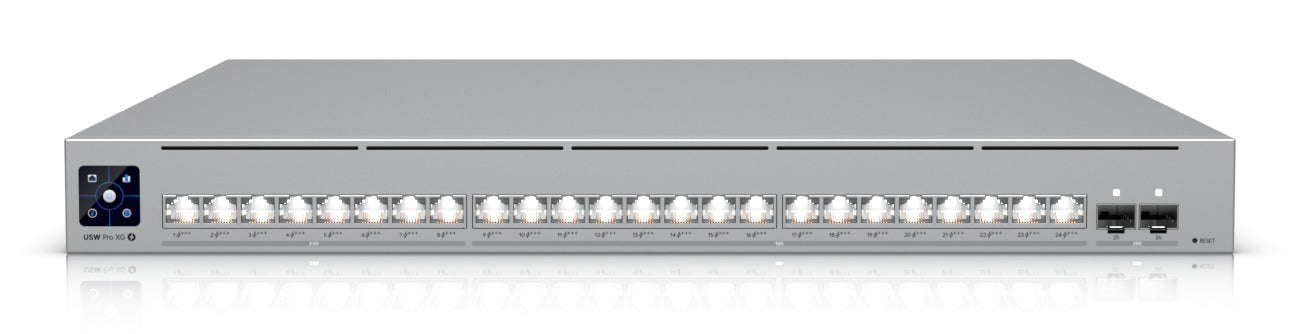

Ubiquiti UniFi Pro XG 24 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-XG-24-POE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xProfessional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2 / Layer 3 (L2/L3) |
| Quality of Service (QoS) | Yes |
| Multicast Support | Yes |
| RJ-45 Ports | 24 × 10G Ethernet (100/1000/10000) |
| 10G Ethernet (Copper) Ports | 16 |
| 2.5G Ethernet (Copper) Ports | 8 |
| SFP28 Ports | 2 × SFP28 |
| 10G Support | Yes |
| PoE Support | Yes |
| PoE Type | PoE+++ |
| PoE++ (4PPoE) Ports | 24 |
| PoE Power per Port | Up to 15.4 W |
| Total PoE Budget | 720 W |
| Switching Capacity | 460 Gbps |
| Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Packet Buffer Memory | 8 MB |
| MAC Address Table | 128,000 Entries |
| Jumbo Frames | Supported |
| Static Routing | Yes |
| VLAN Support | Yes |
| Number of VLANs | 1000 |
| VLAN Features | Interface-based VLAN, Voice VLAN |
| IPv4 Routes | 256,000 |
| ACL IPv4 Entries | 256 |
| IGMP Snooping | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| Loop Protection | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Server, DHCPv6 Snooping |
| Reset Button | Yes |
| Display | LCM with Backlight |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Stackable | Yes |
| Housing Material | SGCC |
| Product Color | Grey |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Power Consumption (Max) | 870 W |
| Redundant Power Supply (RPS) | Yes |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442 × 480 × 44 mm |
| Weight | 7.9 kg |
| Package Contents | Rack Mount Kit, Power Cable |
| Compliance Certifications | CE, FCC, Industry Canada (IC), National Defense Authorization Act (NDAA) |
