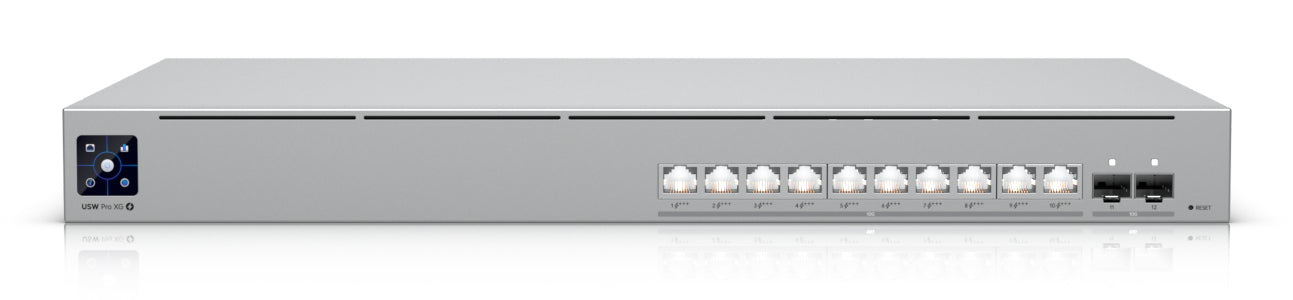

Ubiquiti UniFi Pro XG 10 PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-XG-10-POE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
x1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2 / Layer 3 (L2/L3) |
| RJ-45 Ports | 10 × 10G Ethernet (100/1000/10000) |
| 10G Ethernet Ports | 10 × 10G Ethernet |
| SFP+ Slots | 2 × SFP+ |
| PoE++ (4PPoE) Ports | 10 |
| PoE Support | Yes |
| PoE Power per Port | Up to 15.4 W |
| Total PoE Budget | 400 W |
| PoE Type Supported | PoE++ (4PPoE) |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 179 Mpps |
| Throughput | 120 Gbps |
| Packet Buffer | 2 MB |
| MAC Address Table | 32,000 Entries |
| Jumbo Frames | Supported |
| Static Routing | Yes |
| VLAN Support | Yes (Up to 1000 VLANs) |
| Interface-based VLAN | Yes |
| Voice VLAN | Yes |
| IPv4 Routes | 12,000 |
| IGMP Snooping | Yes |
| Port Mirroring | Yes |
| Rate Limiting | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| Loop Protection | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Server, DHCPv6 Snooping |
| QoS Support | Yes |
| Multicast Support | Yes |
| 10G Support | Yes |
| Display | LCM with Backlight |
| Reset Button | Yes |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Stackable | Yes |
| Product Color | Grey |
| Housing Material | SGCC |
| LED Indicators | System |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Power Consumption (Max) | 520 W |
| Redundant Power Supply (RPS) | Yes |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442.4 × 285 × 44 mm |
| Weight | 4.6 kg |
| Rack Mount Kit | Included |
| Manual | Included |
| Cables Included | Power Cable |
| Compliance Certifications | CE, FCC, IC, NDAA |
