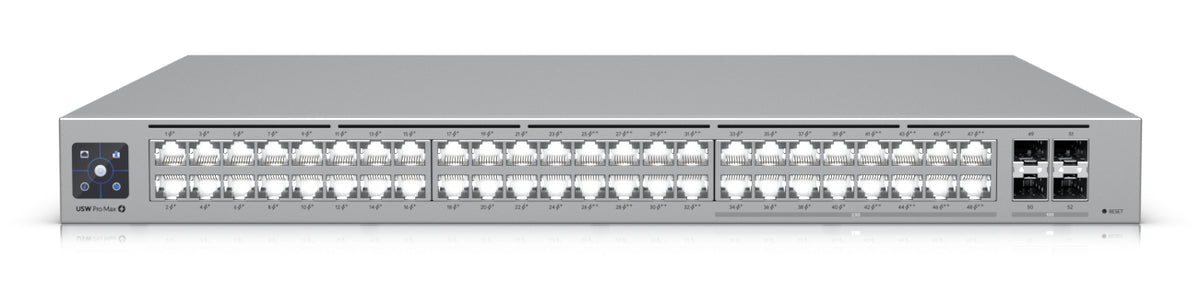

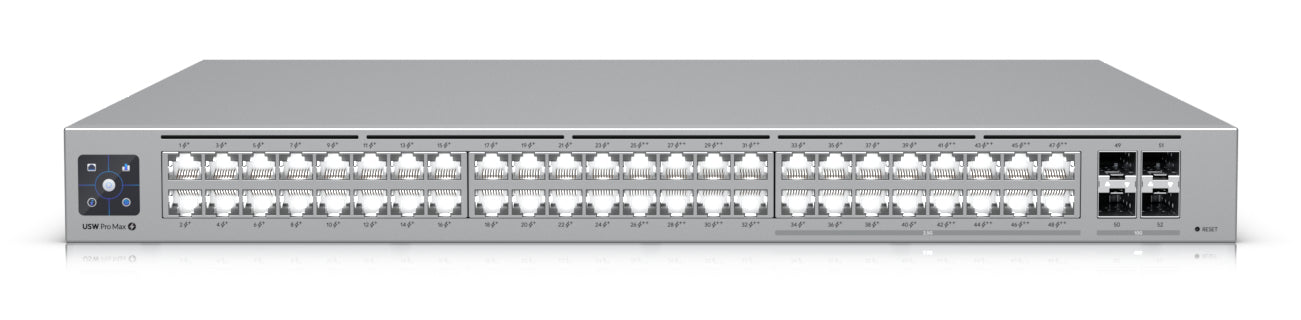

Ubiquiti UniFi Pro Max 48 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-Pro-Max-48-PoE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xA 48-port, Layer 3 Etherlighting™ switch with 2.5 GbE and PoE++ output.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| Quality of Service (QoS) | Yes |
| RJ-45 Ports | 48 × Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (Copper) Ports | 32 |
| 2.5G Ethernet (Copper) Ports | 16 |
| SFP+ Slots | 4 × SFP+ |
| 10G Support | No |
| PoE Support | Yes |
| PoE Type | PoE+, PoE++ (4PPoE) |
| PoE+ Ports | 32 |
| PoE++ (4PPoE) Ports | 16 |
| PoE Power per Port | Up to 15.4 W |
| PoE Voltage | 57 V |
| Total PoE Budget | 720 W |
| Switching Capacity | 224 Gbps |
| Throughput | 112 Gbps |
| Forwarding Rate | 167 Mpps |
| Packet Buffer Memory | 2 MB |
| MAC Address Table | 32,000 Entries |
| Jumbo Frames | Supported |
| Static Routing | Yes |
| VLAN Support | Yes |
| Number of VLANs | 1000 |
| VLAN Features | Voice VLAN |
| IPv4 Routes | 12,000 |
| IGMP Snooping | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| Loop Protection | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Server, DHCPv6 Snooping |
| Networking Standard | IEEE 802.1X |
| Reset Button | Yes |
| Display | LCM with Backlight |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Housing Material | SGCC |
| Product Color | Grey |
| LED Indicators | System |
| Power Supply | Included |
| Power Source | AC |
| Power Connector | AC-in Jack |
| Power Consumption (Max) | 820 W |
| Redundant Power Supply (RPS) | Yes |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Heat Dissipation | 341.2 BTU/h |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442.4 × 399.6 × 43.7 mm |
| Weight | 6.2 kg |
| Package Contents | Rack Mount Kit, Manual, Power Cable |
| Sustainability Compliance | Yes |
| Compliance Certifications | CE, FCC, Industry Canada (IC), National Defense Authorization Act (NDAA) |
