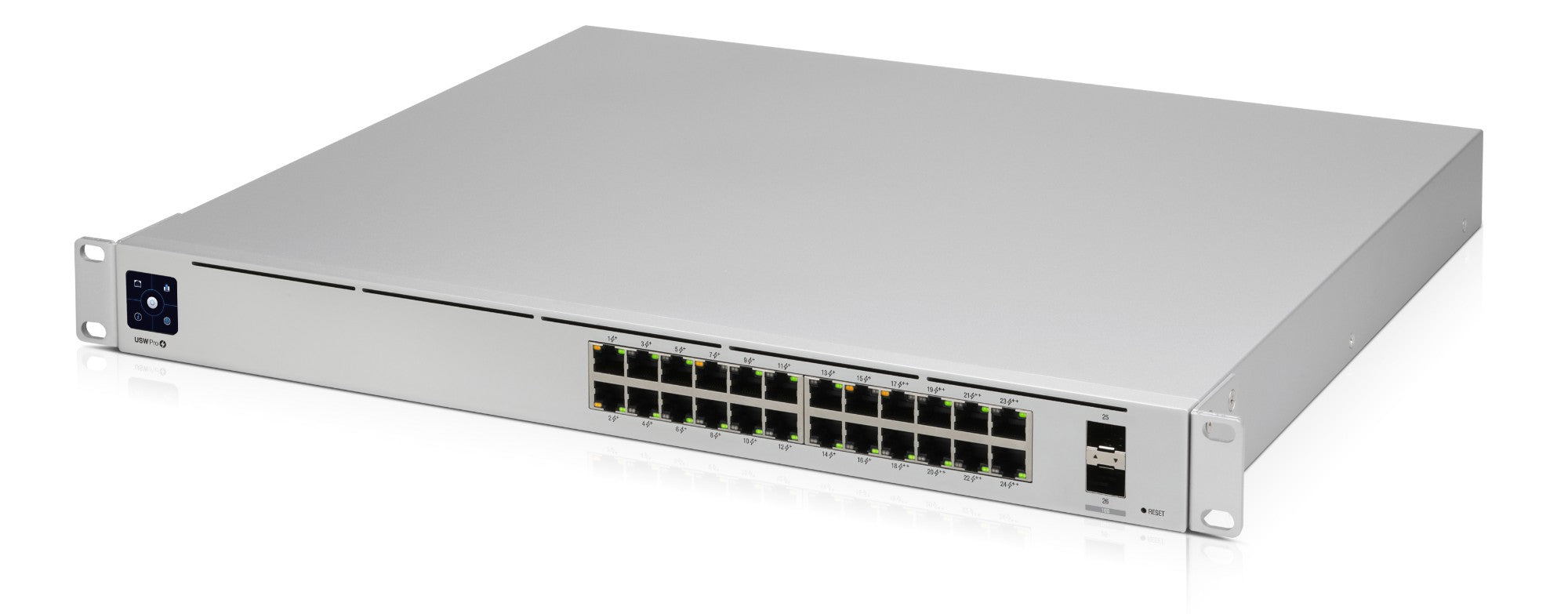

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Vendor: Ubiquiti
SKU: USW-PRO-24-POE
£0.00
£0.00
Subtotal: £0.00

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

£0.00
Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

Ubiquiti UniFi Pro 24-Port PoE Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Silver

£0.00
Description
Description
x
Second-Generation UniFi Switching We’ve redesigned our UniFi Switches from the ground up. Near Silent Cooling Our new airflow design reduces the need for fan usage. Powerful Hardware and Software UniFi Switches offer a variety of features, including 10G SFP+ ports, PoE+ or PoE++ support, and Layer 3* switching capabilities. Redundant Power System UniFi SmartPower RPS, USP-RPS, is our PSU failover system. Power Supply Failure In the event of a UniFi switch power supply failure, the USP-RPS automatically supplies redundant power to the failed device. UniFi SmartPower One UniFi SmartPower device can support up to 6 devices until the failed device is replaced. Touchscreen Display The 1.3" touchscreen display allows easy monitoring and quick troubleshooting.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Product Type Managed Ethernet Switch
Switch Type Managed
Switch Layer Layer 2 / Layer 3 (L2/L3)
Management Interface Web-based Management
Reset Button Yes
System Event Log Yes
Quality of Service (QoS) Supported
RJ-45 Ports 24 × Gigabit Ethernet (10/100/1000)
SFP+ Ports 2 × 10G SFP+
PoE+ Ports 16
PoE++ (4PPoE) Ports 8
PoE Support Yes
PoE Power per Port Up to 64 W
Total PoE Budget 400 W
Switching Capacity 88 Gbps
Forwarding Rate 65.472 Mpps
Throughput 44 Mpps
Packet Buffer Memory 2 MB
MAC Address Table 16,000 Entries
10G Support Yes
Static Routing Yes
IPv4 Routes 64
VLAN Support Yes
Maximum VLANs 1,000
Link Aggregation Yes
Port Mirroring Yes
Flow Control Yes
Rate Limiting Yes
Broadcast Storm Control Yes
IGMP Snooping Yes
Authentication IEEE 802.1X, RADIUS
DHCP Features DHCP Relay, DHCP Server, DHCP Snooping
Networking Standards IEEE 802.3af, IEEE 802.3at
Full Duplex Yes
Form Factor 1U Rack Mount
Rack Mountable Yes
Display LCM Display
Product Color Silver
LED Indicators Activity, Link, PoE, Speed, System
Power Source AC
Power Connector AC-in Jack
Power Supply 1 × Internal Power Supply Included
Redundant Power Supply (RPS) Supported
Maximum Power Consumption 450 W
AC Input Voltage 100–240 V
AC Input Frequency 50–60 Hz
Operating Temperature -5°C to 40°C
Operating Humidity 10%–90% RH
Dimensions (W × D × H) 442.4 × 285.4 × 43.7 mm
Weight 4.3 kg
Certifications CE, FCC, IC
HS Code 85176990
