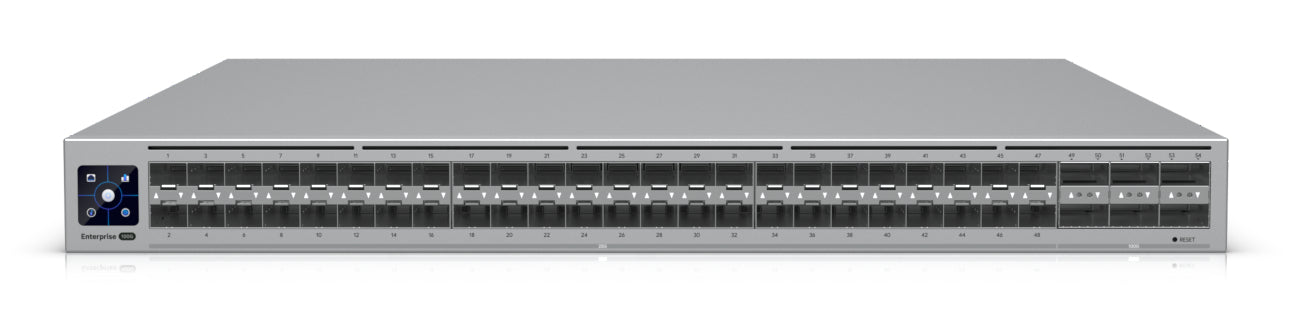

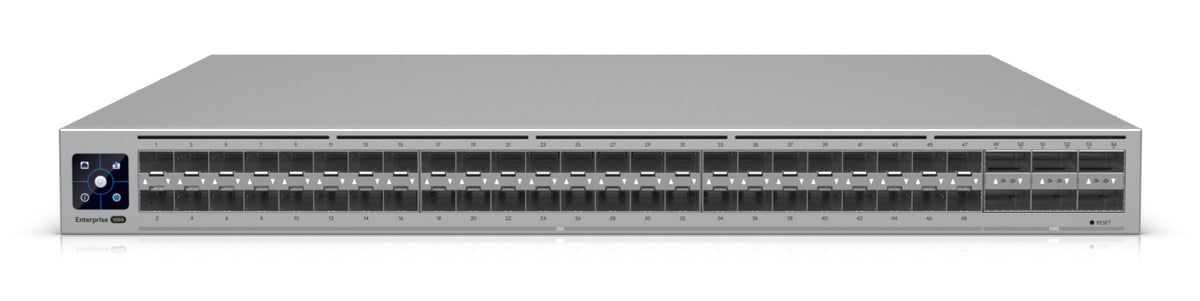

Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

Vendor: Ubiquiti
SKU: ECS-AGGREGATION
£0.00
£0.00
Subtotal: £0.00

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

£0.00
Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

Ubiquiti UniFi ECS-Aggregation Managed L2/L3 1U Grey

£0.00
Description
Description
x
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Product Type Managed Aggregation Switch
Switch Type Managed
Switch Layer Layer 2 / Layer 3 (L2/L3)
RJ-45 Ports None
SFP Slots None
SFP28 Ports 48 × SFP28
QSFP28 Ports 6 × QSFP28
Installed SFP Modules N/A
Installed SFP+ Modules N/A
PoE Support No
PoE Power per Port N/A
Total PoE Budget N/A
Switching Capacity 3600 Gbps (3.6 Tbps)
Forwarding Rate 2300 Mpps
Throughput 1800 Gbps (1.8 Tbps)
Jumbo Frames Supported
Static Routing N/A
VLAN Support N/A
Spanning Tree Protocol N/A
Port Mirroring Yes
Link Aggregation Yes
Flow Control Yes
Broadcast Storm Control Yes
10G Support Yes
IGMP Snooping Yes
Loop Protection Yes
MAC Address Filtering Yes
DHCP Features DHCP Guarding, DHCP Relay, DHCP Snooping
Multicast Support Yes
Form Factor 1U Rack Mount
Rack Mountable Yes
Product Color Grey
LED Indicators Yes
Power Supply Dual Internal Power Supplies Included
Power Source AC
AC Input Voltage 100–240 V
Power Consumption (Max) 340 W
Operating Temperature -5°C to 40°C
Operating Humidity 10%–95% RH
Dimensions (W × D × H) 442.4 × 496 × 43.7 mm
Weight 9.9 kg
Certifications N/A
