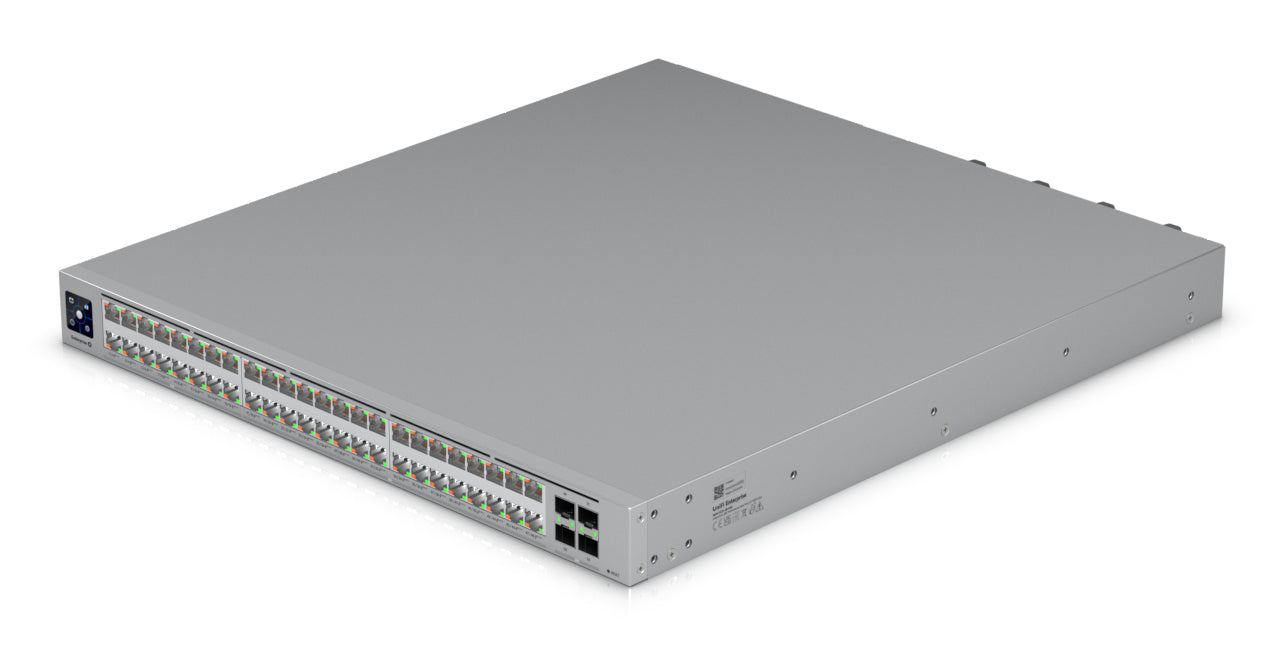

Ubiquiti UniFi ECS-48-PoE Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey
Vendor:
Ubiquiti
SKU:
ECS-48-POE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xEnterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2 / Layer 3 (L2/L3) |
| Management Features | QoS, Multicast Support, Reset Button |
| RJ-45 Ports | 48 × Multi-Gig Ethernet (16 × 2.5GbE, 32 × 10GbE) |
| Ethernet Port Speeds | 10/100/1000/2500/5000/10000 Mbps |
| SFP Ports | 4 × SFP |
| SFP28 Ports | 4 × SFP28 |
| Power Connector | AC-in Jack |
| PoE Support | Yes |
| PoE Type | PoE+, PoE++ (4PPoE) |
| PoE Power per Port | Up to 90 W |
| Total PoE Budget | 2150 W |
| Switching Capacity | 920 Gbps |
| Forwarding Rate | 684 Mpps |
| Throughput | 460 Gbps |
| Packet Buffer Memory | 8 MB |
| MAC Address Table | 128,000 Entries |
| IPv4 Routes | 256,000 |
| VLAN Support | Yes |
| Maximum VLANs | 1,000 |
| Voice VLAN | Yes |
| Link Aggregation | Yes |
| Port Mirroring | Yes |
| Flow Control | Yes |
| Rate Limiting | Yes |
| Broadcast Storm Control | Yes |
| Loop Protection | Yes |
| IGMP Snooping | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Snooping |
| Networking Standards | IEEE 802.1X, IEEE 802.3bt |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Housing Material | SGCC Steel |
| Product Color | Grey |
| Display | LCM |
| LED Indicators | Activity, Link, Status |
| Cooling | 4 Fans with Redundant Fan Support |
| Power Source | AC |
| Power Supply | 2 × Internal Power Supplies Included |
| Redundant Power Supply (RPS) | Supported |
| Maximum Power Consumption | 2400 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442 × 496 × 43.7 mm |
| Weight | 9.46 kg |
| Package Contents | Rack Mount Kit, Rack Rails, Mounting Brackets, Power Cable |
| Compliance | CE, FCC, Industry Canada (IC) |
