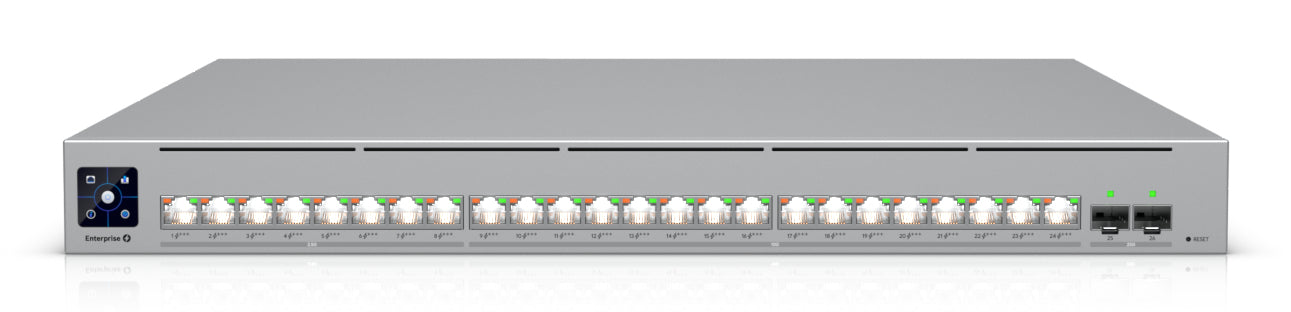

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Vendor: Ubiquiti
SKU: ECS-24-POE
£0.00
£0.00
Subtotal: £0.00

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

£0.00
Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

Ubiquiti UniFi ECS-24-POE network switch Managed L2/L3 10G Ethernet (100/1000/10000) Power over Ethernet (PoE) 1U Grey

£0.00
Description
Description
x
Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Product Type Managed Ethernet Switch
Switch Type Managed
Switch Layer Layer 2 / Layer 3 (L2/L3)
RJ-45 Ports 24 × 10G Ethernet (100/1000/10000)
2.5G Ethernet Ports 8 × 2.5G Ethernet
SFP Slots 2 × SFP
SFP28 Ports 2 × SFP28
PoE Support Yes
PoE Type PoE+, PoE++ (4PPoE)
PoE Power per Port Up to 90 W
Total PoE Budget 1050 W
Switching Capacity 460 Gbps
Forwarding Rate 342.24 Mpps
Throughput 230 Gbps
Packet Buffer Memory 8 MB
MAC Address Table 128,000 Entries
Jumbo Frames Supported
Static Routing Yes
IPv4 Routes 256,000
VLAN Support Yes
Voice VLAN Supported
Port Mirroring Yes
Link Aggregation Yes
Rate Limiting Yes
Flow Control Yes
Broadcast Storm Control Yes
IGMP Snooping Yes
Loop Protection Yes
DHCP Features DHCP Guarding, DHCP Relay, DHCP Snooping
Multicast Support Yes
Networking Standards IEEE 802.1X, IEEE 802.3bt
Ethernet LAN Data Rates 10/100/1000/2500/5000/10000 Mbps
10G Support Yes
Reset Button Yes
Display LCM
Form Factor 1U Rack Mount
Rack Mountable Yes
Housing Material SGCC
Product Color Grey
LED Indicators Activity, Link, Status
Cooling 4 Fans with Redundant Fan Support
Power Supply 2 × Power Supplies Included
Power Source AC
Redundant Power Supply (RPS) Yes
Power Consumption (Max) 2400 W
Power Connector AC-in Jack
AC Input Voltage 100–240 V
AC Input Frequency 50/60 Hz
Operating Temperature -5°C to 40°C
Operating Humidity 10%–90% RH
Dimensions (W × D × H) 442.4 × 496 × 43.7 mm
Weight 9.46 kg
Package Contents Rack Mount Kit, Rack Rails, Mounting Brackets, Power Cable
Compliance Certifications CE, FCC, Industry Canada (IC), NDAA
