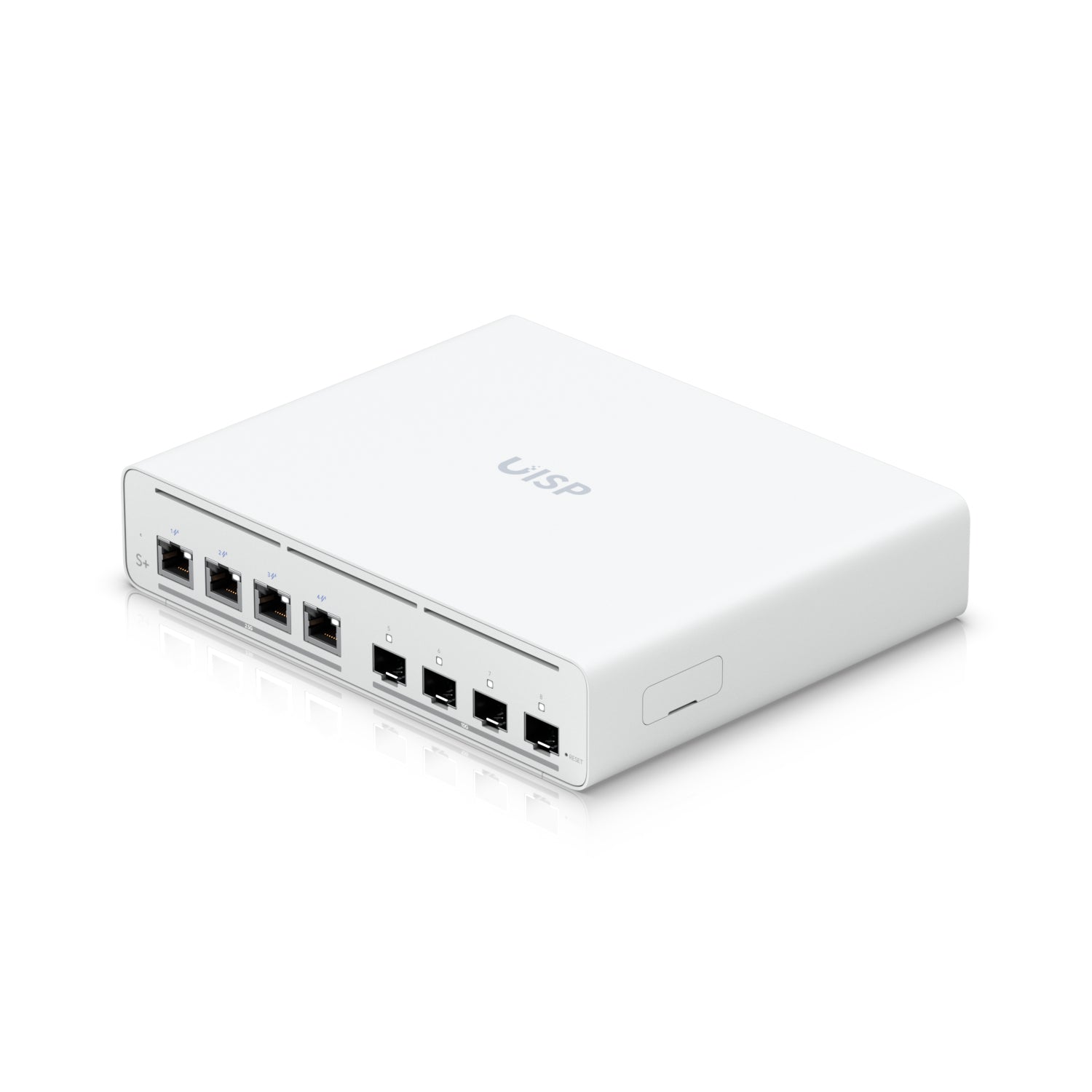

Ubiquiti UISP Switch Plus Managed 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U White
Vendor:
Ubiquiti
SKU:
UISP-S-PLUS-EU
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
x2.5 GbE PoE switch for ISP applications.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| RJ-45 Ports | 4 × 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet Ports | 4 |
| SFP+ Ports | 4 × SFP+ |
| 10G Support | No |
| Switching Capacity | 100 Gbps |
| Forwarding Rate | 74.4 Mpps |
| Throughput | 50 Gbps |
| DHCP Features | DHCP Snooping |
| Built-in Processor | Yes |
| Processor Manufacturer | ARM |
| Processor Model | ARM Cortex-A55 |
| Processor Frequency | 1.4 GHz |
| Memory Type | DDR4-SDRAM |
| Internal Memory | 1 GB |
| Flash Memory | 256 MB |
| PoE Support | Yes |
| PoE Ports | 4 |
| PoE Type | Passive PoE |
| PoE Voltage | 27 V |
| Total PoE Budget | 160 W |
| Form Factor | 1U |
| Wall Mountable | Yes |
| Rack Mountable | Yes |
| Product Color | White |
| Housing Material | ABS, Polycarbonate (PC), Steel |
| LED Indicators | LAN, System |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Power Consumption (Max) | 25 W |
| Input Current | 7.04 A |
| DC Input Voltage | 24–28 V |
| Operating Temperature | -10°C to 50°C |
| Operating Humidity | 5%–95% RH |
| Dimensions (W × D × H) | 210.4 × 170.2 × 43.7 mm |
| Weight | 1.75 kg |
| Certification | CE, FCC, IC |
| Package Contents | User Manual |
