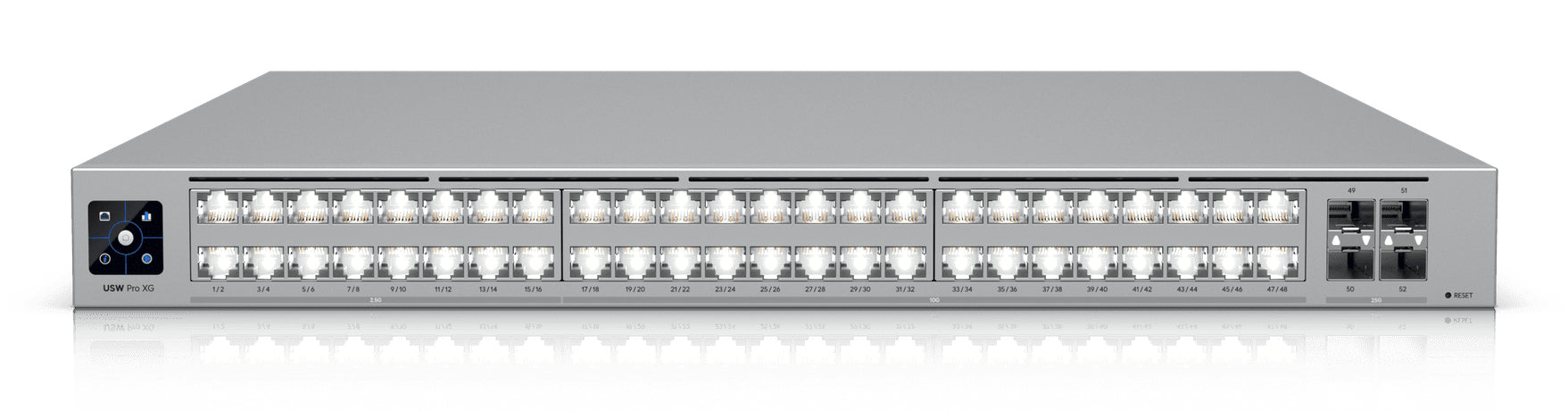

Ubiquiti Pro XG 48 Managed L3 10G Ethernet (100/1000/10000) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-XG-48-EU
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xProfessional-grade, 48-port Layer 3 Etherlighting™ switch with (32) 10 GbE, (16) 2.5 GbE, and (4) 25G SFP28 ports.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Reset Button | Yes |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| Web-Based Management | Yes |
| RJ-45 Ports | 48 × 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet Ports | 16 |
| 10G Ethernet Ports | 32 |
| SFP28 Ports | 4 × SFP28 |
| SFP/SFP+ Ports | None |
| PoE Support | No |
| Switching Capacity | 920 Gbps |
| Forwarding Rate | 684 Mpps |
| Throughput | 460 Gbps |
| MAC Address Table | 128,000 Entries |
| Packet Buffer Memory | 8 MB |
| VLAN Support | Yes (Up to 1000 VLANs) |
| Voice VLAN | Yes |
| Port Mirroring | Yes |
| Rate Limiting | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| Loop Protection | Yes |
| Static Routing | Yes |
| IPv4 Routes | 256,000 |
| ACL Support | Yes (256 IPv4 ACL Entries) |
| DHCP Features | DHCP Server, Relay, Snooping, Guarding |
| 10G Support | Yes |
| Ethernet Data Rates | 10/100/1000/2500/5000/10000 Mbps |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Product Color | Grey |
| Housing Material | SGCC |
| LED Indicators | Yes |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Redundant Power Supply | Yes |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442 × 480 × 44 mm |
| Weight | 7.5 kg |
| Compliance Certifications | NDAA, CE, FCC, IC |
| Package Contents | Rack Mount Kit, User Manual |
