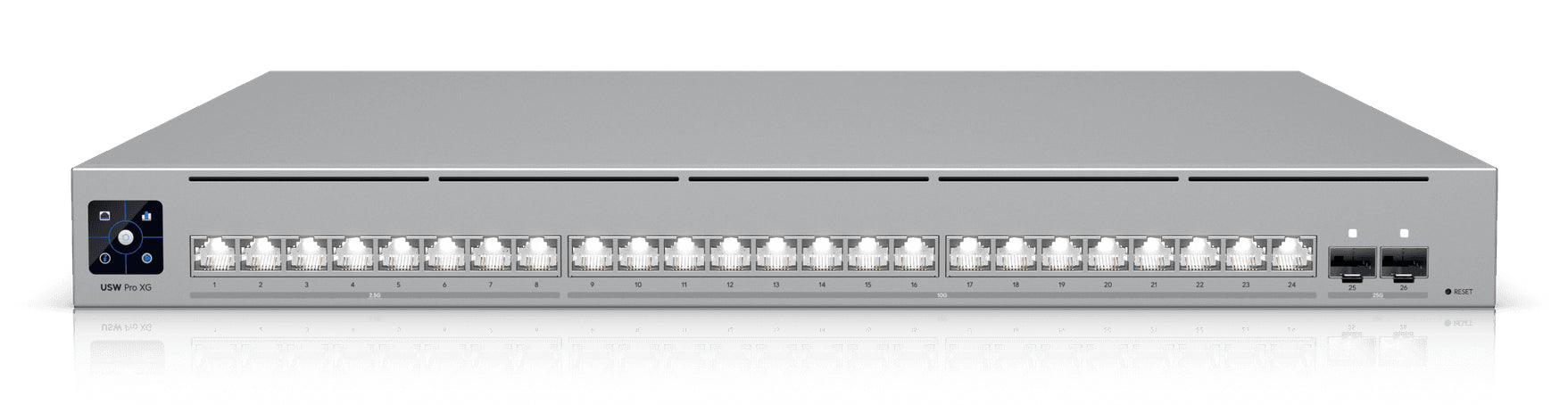

Ubiquiti Pro XG 24 Managed L3 10G Ethernet (100/1000/10000) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-XG-24-EU
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xProfessional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Reset Button | Yes |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| Web-based Management | Yes |
| RJ-45 Ports | 24 × 10G Ethernet (100/1000/10000) |
| 2.5G Ethernet Ports | 8 |
| 10G Ethernet Ports | 16 |
| SFP28 Ports | 2 |
| Installed SFP Modules | 0 |
| Installed SFP+ Modules | 0 |
| Networking Standards | IEEE 802.1X |
| Ethernet Data Rates | 10 / 100 / 1000 / 2500 / 5000 / 10000 Mbps |
| 10G Support | Yes |
| VLAN Support | Yes |
| Number of VLANs | 1000 |
| Voice VLAN | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Flow Control Support | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| IPv4 Routes | 256,000 |
| Static Routing | Yes |
| Access Control List (ACL) | Yes (256 IPv4 ACL Entries) |
| Loop Protection | Yes |
| DHCP Features | DHCP Server, DHCP Relay, DHCP Snooping, DHCP Guarding |
| Packet Buffer Memory | 8 MB |
| MAC Address Table | 128,000 Entries |
| Switching Capacity | 460 Gbps |
| Forwarding Rate | 342 Mpps |
| Throughput | 230 Gbps |
| Jumbo Frames Support | Yes |
| Multicast Support | Yes |
| PoE Support | No |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Product Color | Grey |
| Housing Material | SGCC |
| LED Indicators | Yes |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Redundant Power Supply | Yes |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 442 × 480 × 44 mm |
| Weight | 7.2 kg |
| Compliance Certifications | NDAA, CE, FCC, IC |
| Package Contents | Rack Mount Kit, User Manual |
