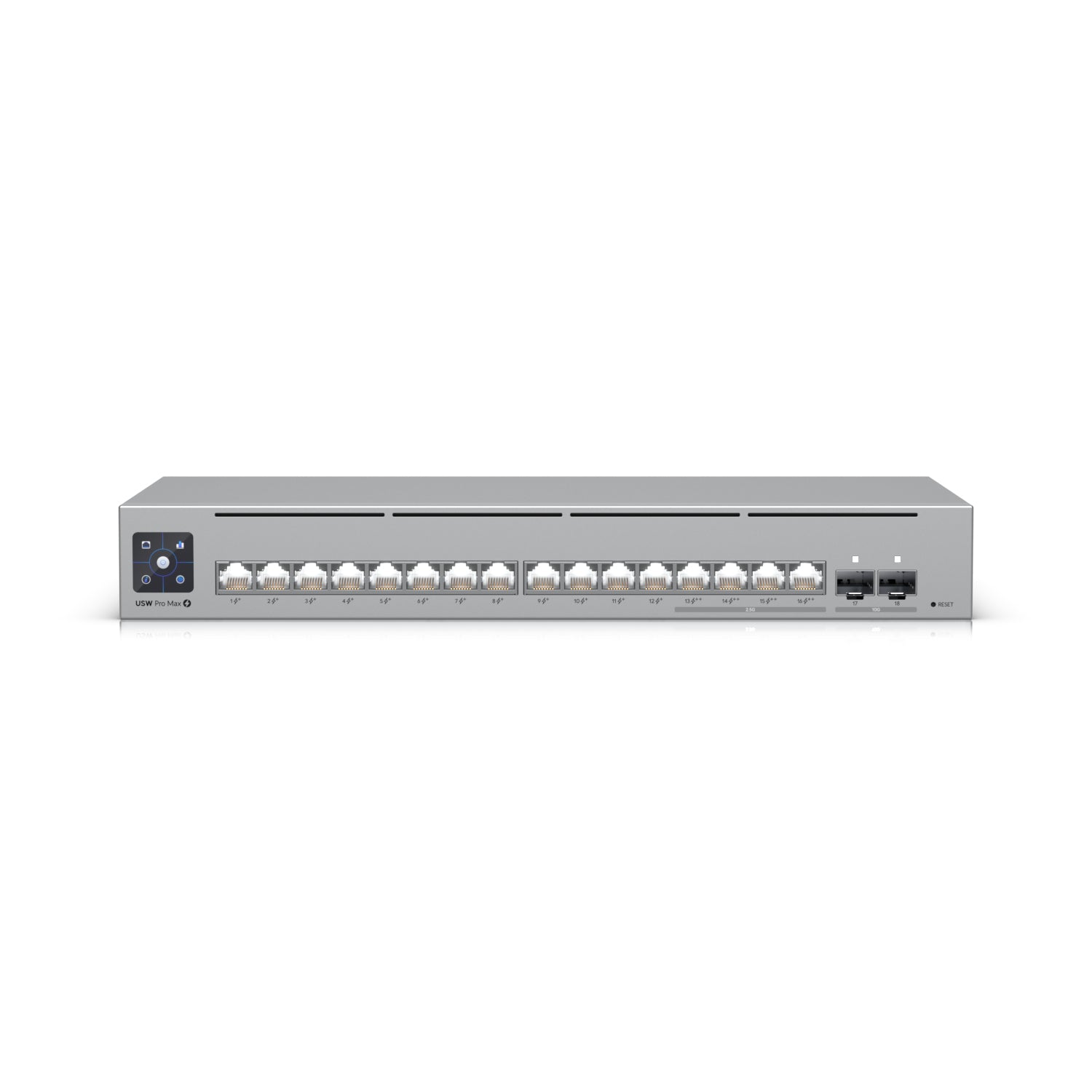

Ubiquiti Pro Max 16 PoE Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-MAX-16-POE
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xA 16-port, Layer 3 Etherlighting™ switch with 2.5 GbE, PoE++ output, and versatile mounting options.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| Multicast Support | Yes |
| RJ-45 Ports | 16 × Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (Copper) Ports | 12 |
| 2.5G Ethernet (Copper) Ports | 4 |
| SFP+ Slots | 2 × SFP+ |
| Installed SFP+ Modules | Not Specified |
| 10G Support | Yes |
| PoE Support | Yes |
| PoE+ Ports | 12 |
| PoE++ (4PPoE) Ports | 4 |
| PoE Power per Port | Up to 15 W |
| Total PoE Budget | 180 W |
| Switching Capacity | 84 Gbps |
| Throughput | 42 Gbps |
| Forwarding Rate | 62.496 Mpps |
| Jumbo Frames | Supported |
| VLAN Support | Yes |
| Voice VLAN | Yes |
| IGMP Snooping | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| Loop Protection | Yes |
| DHCP Features | DHCP Snooping, DHCPv6 Relay |
| Networking Standard | IEEE 802.1X |
| Form Factor | Rack Mount |
| Rack Mounting | Yes |
| Reset Button | Yes |
| Display Type | LCM |
| Product Color | Grey |
| Housing Material | Steel |
| LED Indicators | System |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | DC-in Jack |
| Power Consumption (Max) | 30 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| DC Input Voltage | 44–57 V |
| Redundant Power Supply (RPS) Support | Yes |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 325.1 × 160 × 43.7 mm |
| Weight | 2.1 kg |
| Package Contents | Manual, Power Cable, Mounting Brackets |
| Compliance Certifications | CE, FCC, Industry Canada (IC) |
