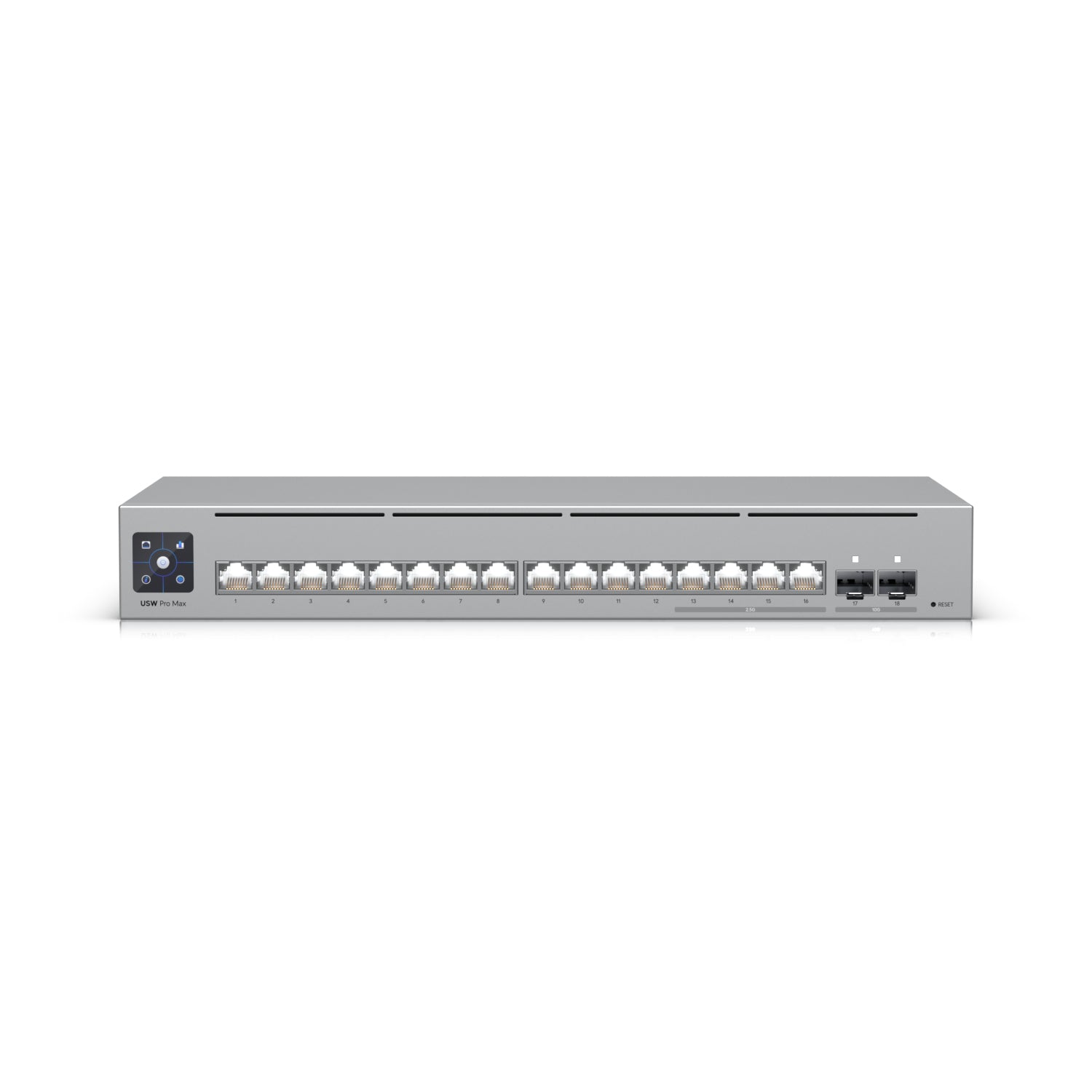

Ubiquiti Pro Max 16 L3 2.5G Ethernet (100/1000/2500) 1U Grey
Vendor:
Ubiquiti
SKU:
USW-PRO-MAX-16-EU
- £0.00
-
- £0.00
- Unit price
- per
Subtotal:
£0.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xA 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | Managed Ethernet Switch |
| Reset Button | Yes |
| Switch Type | Managed |
| Switch Layer | Layer 3 (L3) |
| RJ-45 Ports | 16 × 2.5G Ethernet (100/1000/2500) |
| Gigabit Ethernet Ports | 12 |
| 2.5G Ethernet Ports | 4 |
| SFP+ Ports | 2 × SFP+ |
| VLAN Support | Yes (Up to 1000 VLANs, Voice VLAN) |
| QoS Support | Yes |
| 10G Support | Yes |
| Link Aggregation | Yes |
| Port Mirroring | Yes |
| Rate Limiting | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| Static Routing | Yes |
| IPv4 Routes | 512 |
| Authentication | IEEE 802.1X |
| Access Control List (ACL) | Yes |
| DHCP Features | DHCP Guarding, DHCP Relay, DHCP Server, DHCP Snooping |
| Loop Protection | Yes |
| MAC Address Table | 16,000 Entries |
| Packet Buffer Memory | 1.5 MB |
| Switching Capacity | 84 Gbps |
| Forwarding Rate | 62 Mpps |
| Throughput | 42 Gbps |
| Jumbo Frame Support | Yes |
| PoE Support | No |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Stackable | Yes |
| Fanless Design | Yes |
| Display | LCM |
| Product Color | Grey |
| Housing Material | SGCC |
| LED Indicators | Link, Network, Speed, Status |
| Power Supply | Included |
| Power Source | AC/DC |
| Power Connector | AC/DC |
| Power Consumption (Max) | 25 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Input Voltage | 4.8–5.2 V |
| Input Current | 5 A |
| Redundant Power Supply | Yes (RPS Supported) |
| Heat Dissipation | 85.3 BTU/h |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Dimensions (W × D × H) | 325.1 × 160 × 43.7 mm |
| Weight | 1.95 kg |
| Compliance Certifications | CE, FCC, IC, NDAA |
| Package Contents | Rack Mount Kit, Power Cable |
