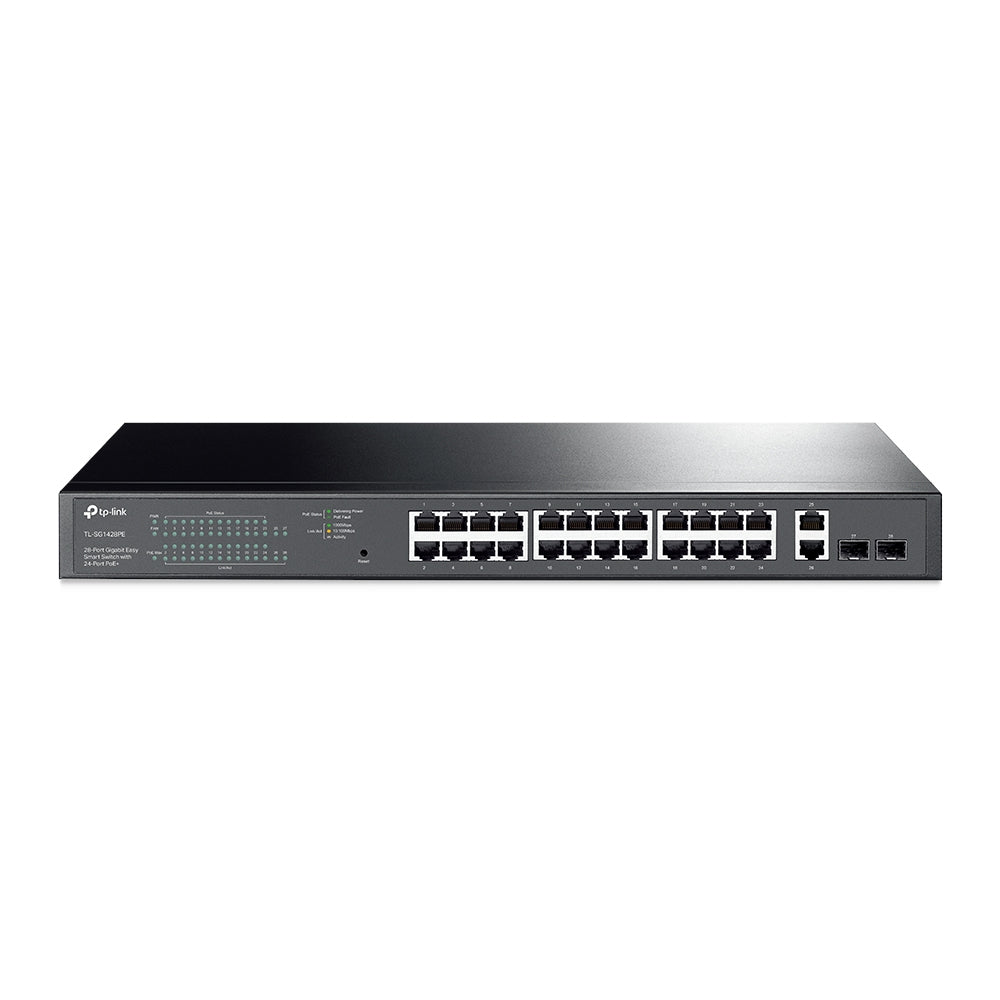

TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Vendor: TP-LINK
SKU: TL-SG1428PE
£151.46
£151.46
Subtotal: £151.46

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£151.46
TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

TP-Link TL-SG1428PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

£151.46
Description
Description
x
Professional High Power 28-Port Gigabit Easy Smart Switch with 24-Port PoE+ Easy to Use, Multi-Purpose PoE Switch with Powerful Performance Multiple Application Scenarios The TL-SG1428PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV. Dedicated 24 PoE+ Ports (250 W Budget) for Numerous Applications Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 250 W PoE power budget for the 24× gigabit PoE+ ports makes it has a wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, etc.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Switch Type Managed
Web-Based Management Yes
Quality of Service (QoS) Support Yes
Multicast Support Yes
Switch Layer L2
SFP Module Slots 2
Basic Switching RJ-45 Ethernet Ports 26
Basic Switching RJ-45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (Copper) Ports 26
Copper Ethernet Cabling Technology 10BASE-T, 100BASE-TX, 1000BASE-T
Cable Types Supported Cat3, Cat4, Cat5, Cat5e, Cat6
Networking Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
VLAN Support Yes
Rate Limiting Yes
Port Mirroring Yes
Number of VLANs 32
Link Aggregation Yes
Flow Control Support Yes
Broadcast Storm Control Yes
Auto MDI/MDI-X Yes
10G Support No
Auto-Negotiation Yes
Virtual LAN Features Port-based VLAN, Tagged VLAN
IGMP Snooping Yes
Fiber Ethernet Cabling Technology 1000BASE-X
Jumbo Frames 10000
Packet Buffer Memory 4.1 MB
MAC Address Table 8000 entries
Switching Capacity 56 Gbit/s
Store-and-Forward Yes
Number of Queues 4
Jumbo Frames Support Yes
Forwarding Rate 41.7 Mpps
Security Algorithms SNMP, SNMPv2, SNMPv3
Form Factor 1U
Product Colour Black
Rack Mounting Yes
Number of Fans 2 fan(s)
Certification CE, FCC, RoHS
Power Consumption (Max) 1039.03 W
Power Supply Included Yes
AC Input Voltage 100 - 240 V
AC Input Frequency 50 - 60 Hz
Power Source AC
Power over Ethernet (PoE) Power per Port 30 W
Power over Ethernet Plus (PoE+) Ports 24
Total Power over Ethernet (PoE) Budget 250 W
Power over Ethernet (PoE) Yes
Storage Temperature -40 - 70 °C
Storage Relative Humidity 5 - 90%
Operating Temperature 0 - 50 °C
Operating Relative Humidity 10 - 90%
Width 440 mm (17.3")
Depth 220 mm (8.66")
Height 44 mm (1.73")
Rack Mount Kit Yes
User Guide Yes
Cables Included AC
Package Width 336 mm (13.2")
Package Depth 528 mm (20.8")
Package Height 100 mm (3.94")
Package Weight 2.29 kg (5.05 lbs)
Harmonized System (HS) Code 85176990
