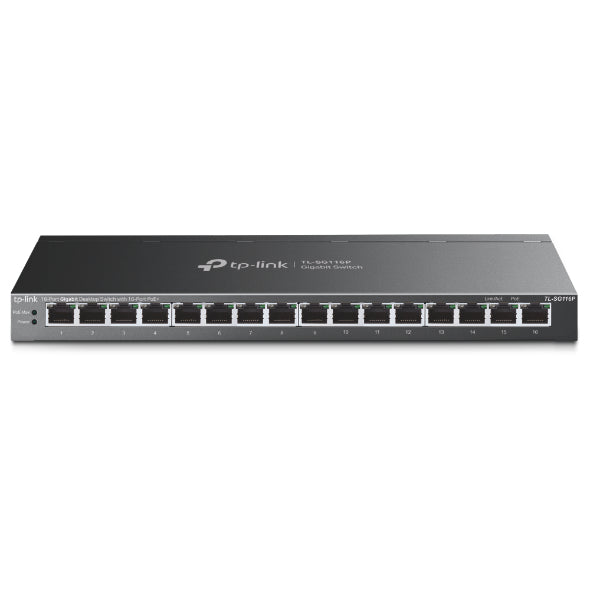

TP-Link TL-SG116P network switch Unmanaged Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Vendor:
TP-LINK
SKU:
TL-SG116P
- £115.76
-
- £115.76
- Unit price
- per
Subtotal:
£115.76
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
x16-Port Gigabit Desktop Switch with 16-Port PoE+ PORT: 16 Gigabit PoE+ Ports SPEC: 802.3at/af, 120 W PoE Power, Desktop Steel Case. FEATURE: Extend Mode for 250m PoE Transmitting, Priority Mode for Port1-4, Isolation Mode, PoE Auto Recovery, Plug and Play.
Technical Specs
x| Specification | Detail |
|---|---|
| Switch Type | Unmanaged |
| Quality of Service (QoS) Support | Yes |
| Basic Switching RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (Copper) Ports | 16 |
| Copper Ethernet Cabling Technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable Types Supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Cable Length Detection | Yes |
| Networking Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Full Duplex | Yes |
| VLAN Support | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 32 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Broadcast Storm Control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
| Virtual LAN Features | Protocol-based VLAN, Tagged VLAN |
| IGMP Snooping | Yes |
| Jumbo Frames | 9000 |
| Packet Buffer Memory | 4.1 MB |
| MAC Address Table | 8000 entries |
| Switching Capacity | 32 Gbit/s |
| Store-and-Forward | Yes |
| Number of Queues | 4 |
| Jumbo Frames Support | Yes |
| Forwarding Rate | 23.81 Mpps |
| Loop Protection | Yes |
| Product Colour | Black |
| Wall Mountable | Yes |
| Stackable | Yes |
| LED Indicators | Yes |
| Housing Material | Metal |
| Power Consumption (Max) | 144.28 W |
| Power Supply Included | Yes |
| AC Input Voltage | 220 V |
| AC Input Frequency | 50 Hz |
| Power Consumption (Typical) | 11.72 W |
| Input Current | 0.6 A |
| DC Input Voltage | 9 V |
| Power over Ethernet (PoE) | Yes |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90% |
| Heat Dissipation | 490.55 BTU/h |
| Width | 286 mm (11.3") |
| Depth | 111.7 mm (4.4") |
| Height | 25.4 mm (1") |
| Package Width | 227 mm (8.94") |
| Package Depth | 434 mm (17.1") |
| Package Height | 70 mm (2.76") |
| Package Weight | 2 kg (4.41 lbs) |
| Quick Start Guide | Yes |
| Auto-Negotiation | Yes |
| Housing Material | Metal |
| Packet Buffer Memory | 4.1 MB |
| LED Indicators | Yes |
