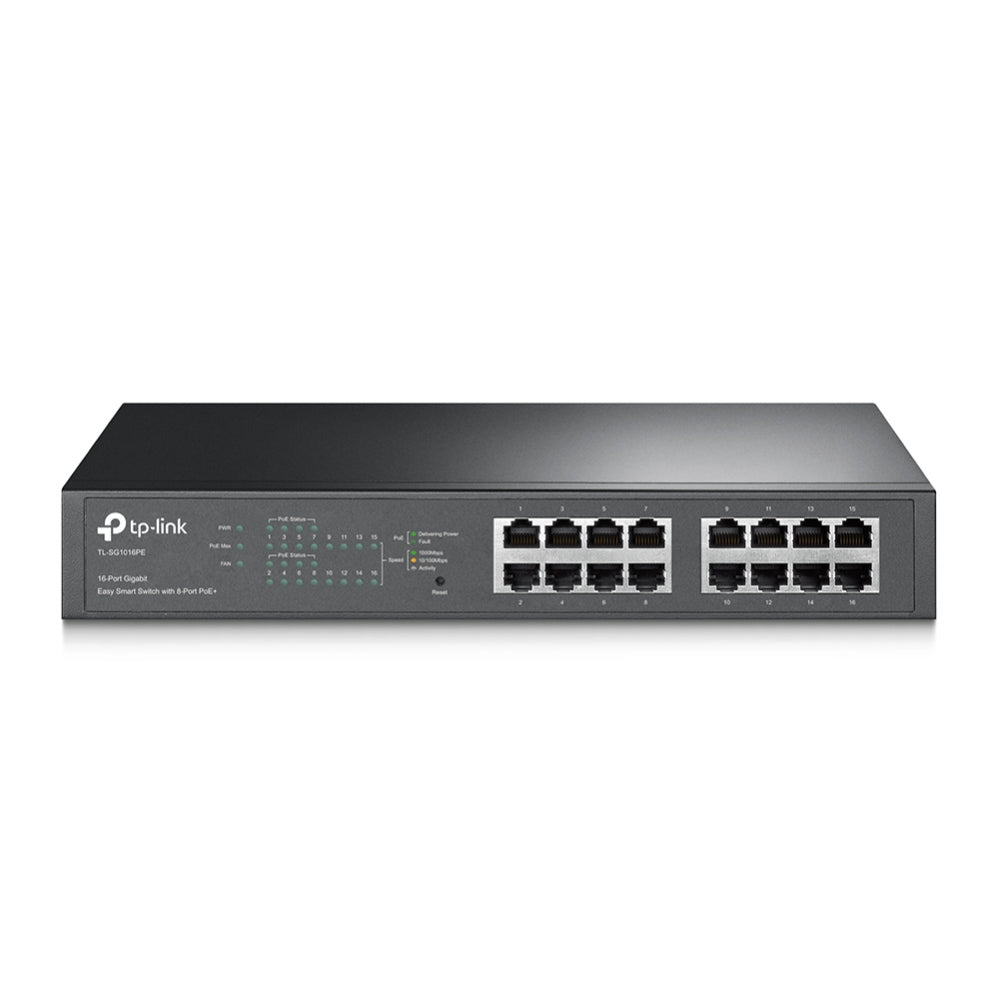

TP-Link TL-SG1016PE network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Vendor:
TP-LINK
SKU:
TL-SG1016PE
- £93.26
-
- £93.26
- Unit price
- per
Subtotal:
£93.26
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xThe TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 150 W*, up to 30 W per port, TL-SG1016PE powers more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE saves the power consumption, making it an eco-friendly solution for your business network.
Technical Specs
x| Specification | Detail |
|---|---|
| Switch Type | Managed |
| Web-Based Management | Yes |
| Quality of Service (QoS) Support | Yes |
| Switch Layer | L2 |
| Basic Switching RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Installed SFP Modules | 0 |
| Installed SFP+ Modules | 0 |
| Gigabit Ethernet (Copper) Ports | 16 |
| Copper Ethernet Cabling Technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable Types Supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Networking Standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Full Duplex | Yes |
| VLAN Support | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Broadcast Storm Control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G Support | No |
| Auto-Negotiation | Yes |
| Virtual LAN Features | Port-based VLAN, Tagged VLAN |
| IGMP Snooping | Yes |
| Jumbo Frames | 10000 |
| Throughput | 23.8 Mpps |
| MAC Address Table | 8000 entries |
| Switching Capacity | 32 Gbit/s |
| Store-and-Forward | Yes |
| Number of Queues | 4 |
| Jumbo Frames Support | Yes |
| Loop Protection | Yes |
| Static Port Security | Yes |
| Product Colour | Black |
| Stackable | No |
| LED Indicators | Yes |
| Rack Mounting | Yes |
| Number of Fans | 1 fan(s) |
| Certification | FCC, CE, RoHS |
| Power Consumption (Max) | 124.4 W |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50 - 60 Hz |
| PoE Power per Port | 30 W |
| PoE+ Ports Quantity | 8 |
| Total PoE Budget | 150 W |
| Power over Ethernet (PoE) | Yes |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90% |
| Width | 294 mm (11.6") |
| Depth | 180 mm (7.09") |
| Height | 44 mm (1.73") |
| Rack Mount Kit | Yes |
| Cables Included | AC |
| Harmonized System (HS) Code | 85176990 |
