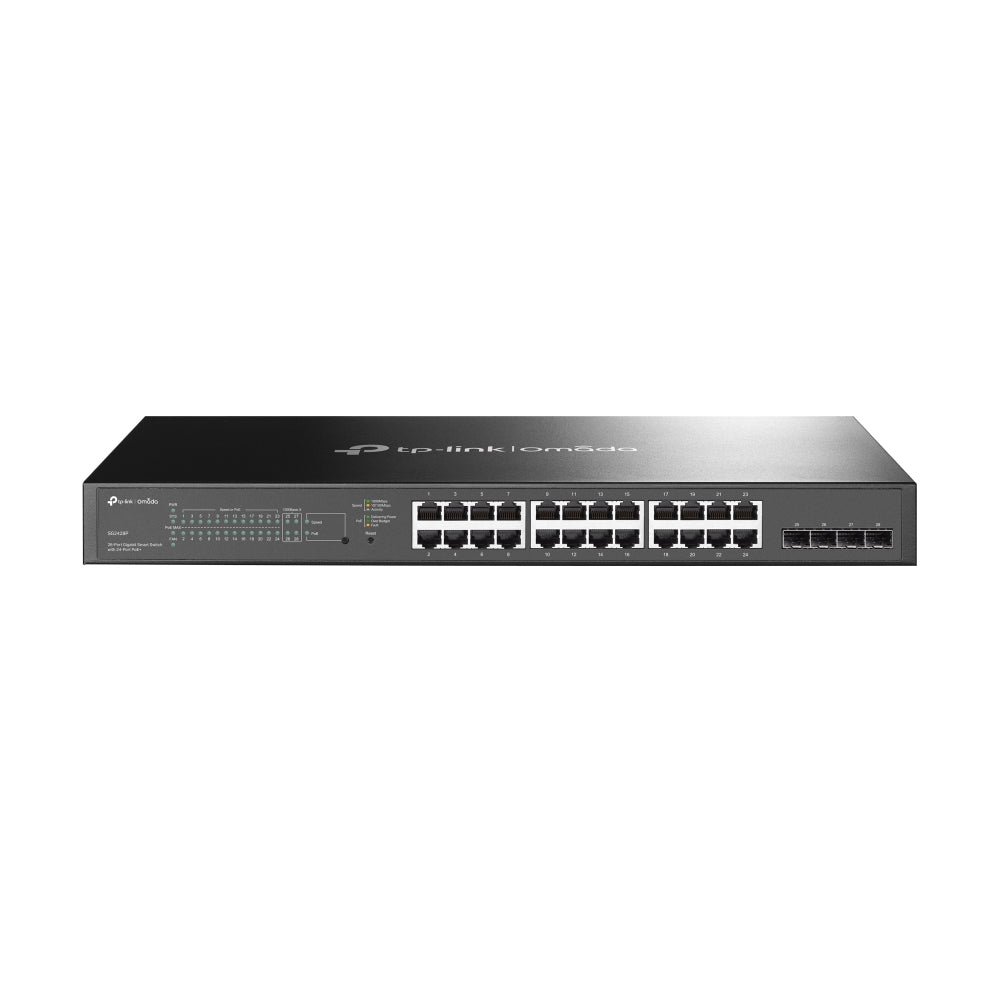

TP-Link Omada TL-SG2428P Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Vendor:
TP-LINK
SKU:
SG2428P
- £191.08
-
- £191.08
- Unit price
- per
Subtotal:
£191.08
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xTP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Technical Specs
x| Specification | Detail |
|---|---|
| ARP Inspection | Yes |
| Switch Type | Managed |
| Web-Based Management | Yes |
| System Event Log | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| MIB Support | Yes |
| Switch Layer | L2/L2+ |
| SFP Module Slots Quantity | 4 |
| Basic Switching RJ-45 Ethernet Ports Quantity | 24 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Installed SFP Modules Quantity | 0 |
| Installed SFP+ Modules Quantity | 0 |
| Gigabit Ethernet (Copper) Ports Quantity | 24 |
| Copper Ethernet Cabling Technology | 10BASE-T, 1000BASE-T |
| Cable Types Supported | Cat3, Cat4, Cat5, Cat5e |
| Networking Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Broadcast Storm Control | Yes |
| 10G Support | No |
| Virtual LAN Features | MAC address-based VLAN, Protocol-based VLAN, Voice VLAN |
| IGMP Snooping | Yes |
| Fiber Ethernet Cabling Technology | 1000BASE-X |
| Jumbo Frames | 9000 |
| Packet Buffer Memory | 4.1 MB |
| MAC Address Table | 8000 entries |
| Switching Capacity | 56 Gbit/s |
| Number of Queues | 8 |
| Jumbo Frames Support | Yes |
| Forwarding Rate | 41.66 Mpps |
| IP-MAC-Port Binding | Yes |
| BPDU Filtering/Protection | Yes |
| SSH/SSL Support | Yes |
| Security Algorithms | HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSH-2, SSL/TLS |
| Access Control List (ACL) | Yes |
| Queue Scheduling Algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Authentication Type | RADIUS |
| DHCP Features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client |
| Management Protocols | SNMPv1/v2c/v3, SNTP |
| Form Factor | 1U |
| Product Colour | Black |
| Rack Mounting | Yes |
| Number of Fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Firmware Upgradeable | Yes |
| Power Consumption (Max) | 301.1 W |
| Power Supply Included | Yes |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Source | AC |
| PoE Power per Port | 30 W |
| PoE+ Ports Quantity | 24 |
| Total PoE Budget | 250 W |
| Power over Ethernet (PoE) | Yes |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 50 °C |
| Operating Relative Humidity | 10 - 90% |
| Heat Dissipation | 1052.94 BTU/h |
| Width | 17.3" (440 mm) |
| Depth | 8.66" (220 mm) |
| Height | 1.73" (44 mm) |
| Rack Mount Kit | Yes |
| User Guide | Yes |
| Cables Included | AC |
