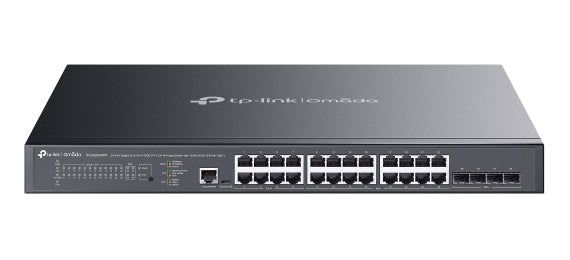

TP-Link Omada SG3428XMPP network switch Managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Vendor:
TP-LINK
SKU:
SG3428XMPP
- £431.82
-
- £431.82
- Unit price
- per
Subtotal:
£431.82
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xEmpowering the High-Power Devices with Gigabit PoE++ Ports Easily Build a Whole 10G Multi-gigabit Network Software Defined Networking (SDN) with Cloud Access Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Technical Specs
x| Specification | Detail |
|---|---|
| Product Type | L2+ Managed PoE+ Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2+ (L2+) |
| Web-Based Management | Yes |
| Cloud Managed | Yes |
| QoS Support | Yes |
| Multicast Support | Yes |
| ARP Inspection | Yes |
| RJ-45 Ports | 24 × Gigabit Ethernet (10/100/1000) |
| SFP+ Ports | 4 × SFP+ |
| Console Port | RJ-45 / Micro-USB |
| 10G Support | Yes |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Port Mirroring | Yes |
| Link Aggregation | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Packet Buffer Memory | 12 MB |
| MAC Address Table | 16,000 entries |
| Jumbo Frames | 9000 bytes |
| Store-and-Forward | Yes |
| ACL Support | Yes |
| MAC Address Filtering | Yes |
| IP-MAC-Port Binding | Yes |
| SSH/SSL Support | Yes |
| DHCP Features | DHCP Client, DHCP Relay, DHCP Server |
| PoE Support | Yes |
| PoE+ Ports | 16 |
| PoE++ Ports | 8 |
| PoE Power per Port | 30 W |
| Total PoE Budget | 500 W |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Product Color | Black |
| LED Indicators | Yes |
| Cooling | 3 Fans |
| Power Supply | Included |
| Power Source | AC |
| Power Consumption (Max) | 486.2 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5%–90% RH |
| Heat Dissipation | 1658.78 BTU/h |
| Dimensions (W × D × H) | 440 × 330 × 44 mm |
| Certification | CE, FCC, RoHS |
| Package Contents | Quick Start Guide, AC Cable |
