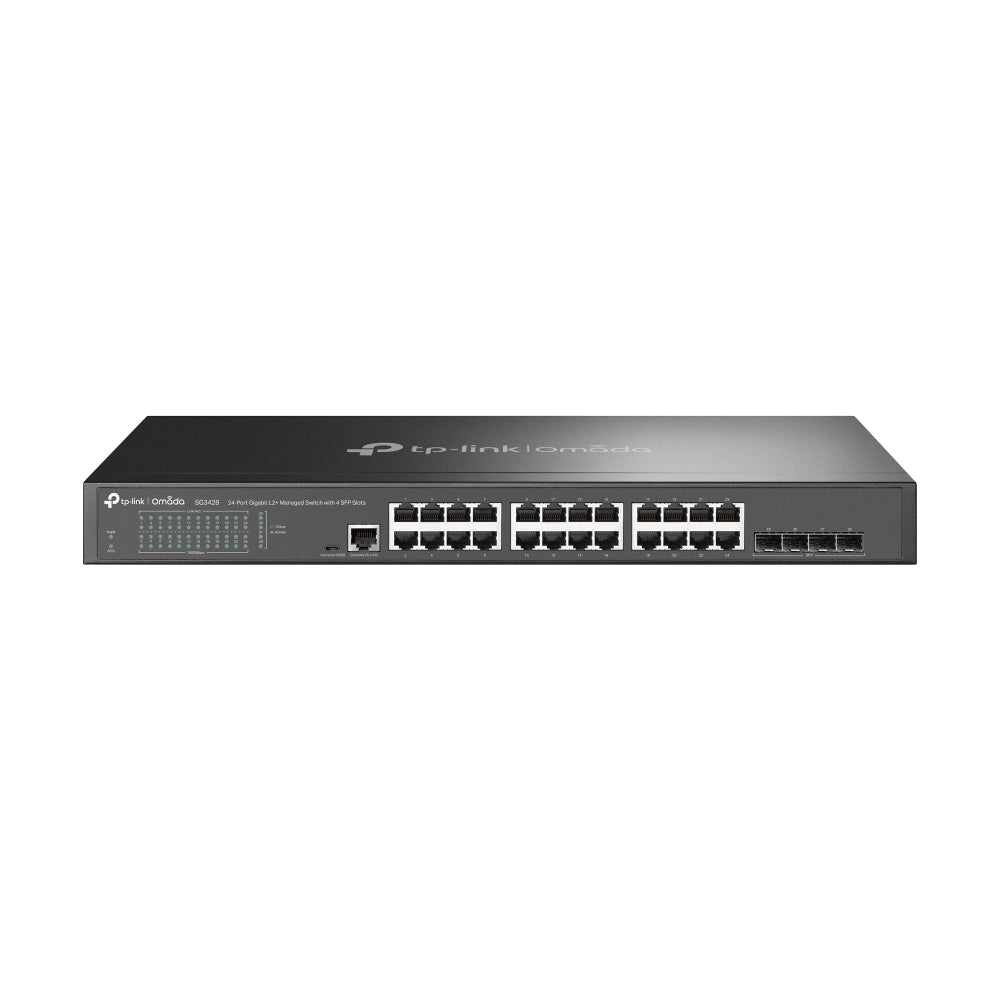

TP-Link Omada SG3428 network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) 1U Black
Vendor:
TP-LINK
SKU:
SG3428
- £134.15
-
- £134.15
- Unit price
- per
Subtotal:
£134.15
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xTP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-ofService (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM and DDM functions help facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ managed Switches provide a reliable, secure solution for enterprise, campus and ISP networks.
Technical Specs
x| Specification | Detail |
|---|---|
| ARP Inspection | Yes |
| Switch Type | Managed |
| Web-Based Management | Yes |
| System Event Log | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| MIB Support | Yes |
| Switch Layer | L2/L3 |
| Configuring Location Settings (CLI) | Yes |
| Cloud-Managed | Yes |
| SFP Module Slots | 4 |
| Basic Switching RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Installed SFP Modules | 0 |
| Installed SFP+ Modules | 0 |
| Gigabit Ethernet (Copper) Ports | 24 |
| Console Port | RJ-45/Micro-USB |
| Networking Standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Head-of-Line (HOL) Blocking | Yes |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| IP Routing | Yes |
| Flow Control Support | Yes |
| Ethernet LAN Data Rates | 10, 100, 1000 Mbit/s |
| Broadcast Storm Control | Yes |
| 10G Support | No |
| Policy-Based Routing | Yes |
| Virtual LAN Features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IPv6 Routes | 48 |
| IPv4 Routes | 48 |
| IGMP Snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Jumbo Frames | 9000 |
| Number of Static Routes | 48 |
| Packet Buffer Memory | 12 MB |
| MAC Address Table | 16000 entries |
| Switching Capacity | 56 Gbit/s |
| Store-and-Forward | Yes |
| Jumbo Frames Support | Yes |
| Static Route | Yes |
| Forwarding Rate | 41.66 Mpps |
| MLD Snooping | Yes |
| Loop Protection | Yes |
| IP-MAC-Port Binding | Yes |
| BPDU Filtering/Protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Static Port Security | Yes |
| SSH/SSL Support | Yes |
| MAC Address Filtering | Yes |
| Access Control List (ACL) | Yes |
| Authentication Type | AAA, RADIUS, TACACS+ |
| DHCP Features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Management Protocols | SNMPv1/v2c/v3, SNTP |
| IPv4 & IPv6 Features | IPv4/IPv6 access-control list (ACL), IPv6 Telnet, IPv6 ping, IPv6 tracert |
| Form Factor | 1U |
| Product Colour | Black |
| LED Indicators | Yes |
| Rack Mounting | Yes |
| Number of Fans | 0 fan(s) |
| Power Consumption (Max) | 20.6 W |
| Power Supply Included | No |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Source | AC |
| Power over Ethernet (PoE) | No |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 45 °C |
| Operating Relative Humidity | 10 - 90% |
| Heat Dissipation | 70.3 BTU/h |
| Width | 440 mm (17.3") |
| Depth | 180 mm (7.09") |
| Height | 44 mm (1.73") |
| Quick Start Guide | Yes |
| Cables Included | LAN (RJ-45) |
