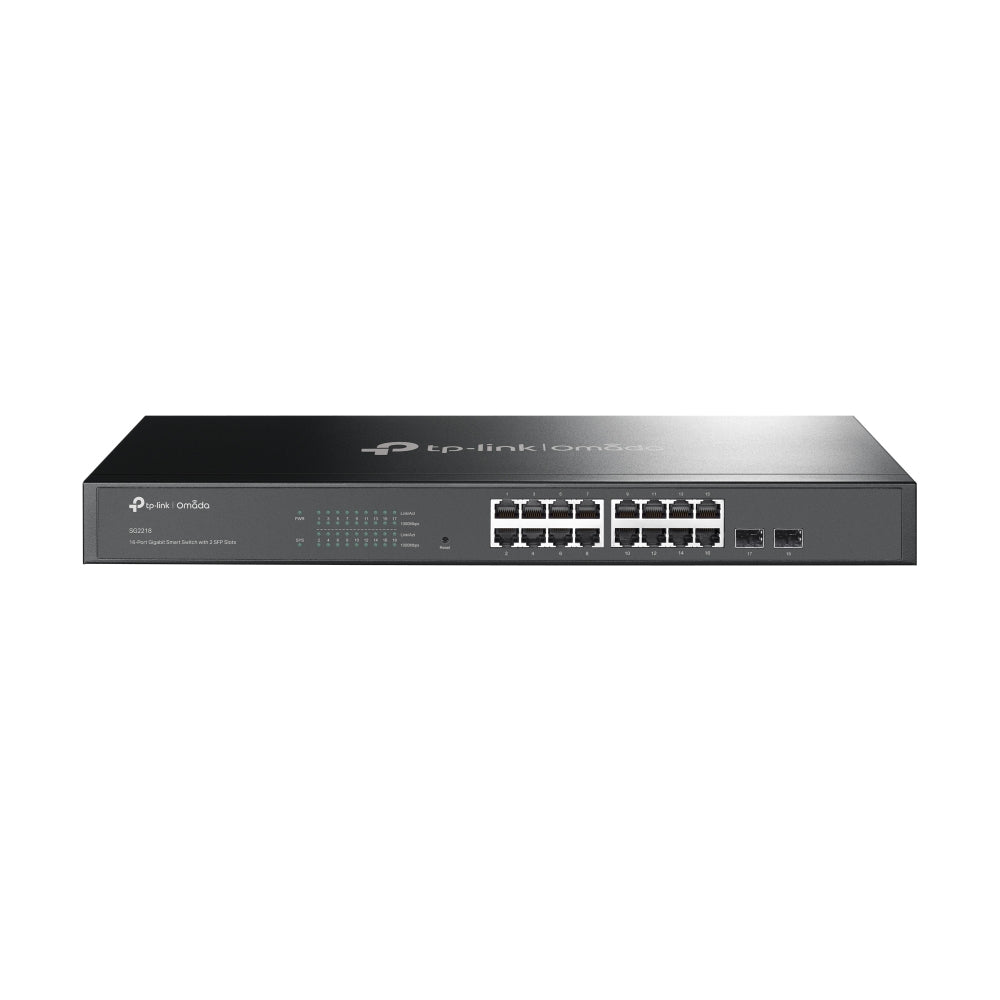

TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

Vendor: TP-LINK
SKU: SG2218
£102.78
£102.78
Subtotal: £102.78

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

£102.78
TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

TP-Link Omada SG2218 network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) 1U Black

£102.78
Description
Description
x
TP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
ARP Inspection Yes
Switch Type Managed
Web-Based Management Yes
System Event Log Yes
Quality of Service (QoS) Support Yes
Multicast Support Yes
MIB Support Yes
Switch Layer L2/L2+
Cloud-Managed Yes
SFP Module Slots 2
Basic Switching RJ-45 Ethernet Ports 16
Basic Switching RJ-45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Installed SFP Modules 0
Installed SFP+ Modules 0
Gigabit Ethernet (Copper) Ports 16
Networking Standards IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z
VLAN Support Yes
Spanning Tree Protocol Yes
Rate Limiting Yes
Port Mirroring Yes
Number of VLANs 4000
Link Aggregation Yes
Flow Control Support Yes
Ethernet LAN Data Rates 10, 100, 1000 Mbit/s
Broadcast Storm Control Yes
10G Support No
Virtual LAN Features Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
IGMP Snooping Yes
GARP VLAN Registration Protocol (GVRP) Yes
Jumbo Frames 9000
Number of Static Routes 32
Number of IP Interfaces 16
Packet Buffer Memory 4.1 MB
MAC Address Table 8000 entries
Switching Capacity 36 Gbit/s
Store-and-Forward Yes
Jumbo Frames Support Yes
Static Route Yes
Forwarding Rate 26.8 Mpps
MLD Snooping Yes
Loop Protection Yes
BPDU Filtering/Protection Yes
SSH/SSL Support Yes
Access Control List (ACL) Yes
DHCP Features DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Management Protocols SNMPv1/v2c/v3, SNTP
Form Factor 1U
Product Colour Black
LED Indicators Yes
Rack Mounting Yes
Certification CE, FCC, RoHS
Fanless Yes
Power Consumption (Max) 12.3 W
Power Supply Included Yes
AC Input Voltage 100 - 240 V
AC Input Frequency 50/60 Hz
Power Source AC
Power over Ethernet (PoE) No
Storage Temperature -40 - 70 °C
Storage Relative Humidity 5 - 90%
Operating Temperature 0 - 40 °C
Operating Relative Humidity 10 - 90%
Heat Dissipation 41.97 BTU/h
Width 440 mm (17.3")
Depth 180 mm (7.09")
Height 44 mm (1.73")
Quick Start Guide Yes
Cables Included AC, LAN (RJ-45)
