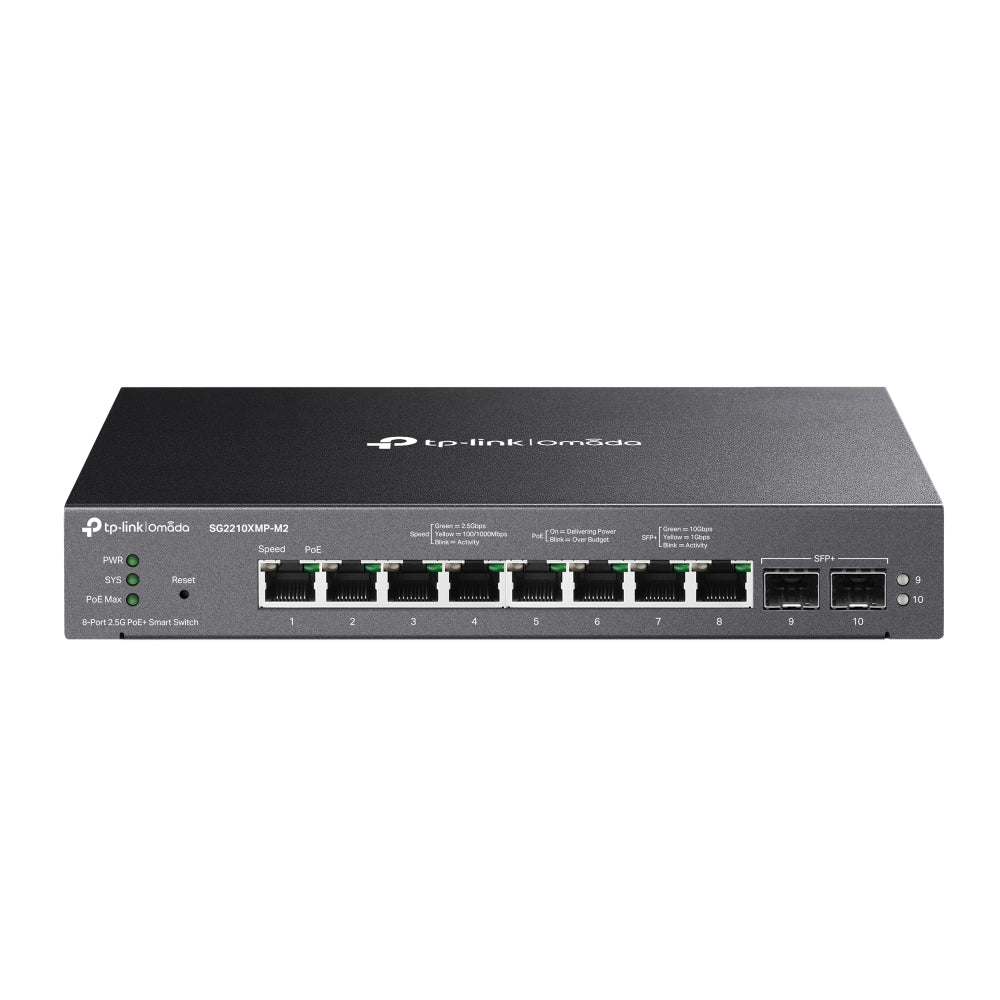

TP-Link Omada SG2210XMP-M2 network switch Managed L2/L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) Desktop/Wall-Mounting Black
Vendor:
TP-LINK
SKU:
SG2210XMP-M2
- £191.08
-
- £191.08
- Unit price
- per
Subtotal:
£191.08
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
x SG2210XMP-M2 is a 2.5G multi-gigabit switch with eight 2.5G PoE+ ports and two 10G uplink ports, ideal for connecting multi-gigabit WiFi 7/6 access points. Up to 160 W PoE budget, fanless design with compact and durable metal casing, and desktop/wall-mounting design make it suited for different environments. High-performance static routing, advanced security features, a selection of Layer 2 management options, and integration into the Omada SDN (Software-Defined Networking) meet the demand of reliable business networking.
Technical Specs
x| Specification | Detail |
|---|---|
| Reset Button | Yes |
| ARP Inspection | Yes |
| Switch Type | Managed |
| Web-Based Management | Yes |
| System Event Log | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| MIB Support | Yes |
| Switch Layer | L2/L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-Managed | Yes |
| SFP+ Module Slots Quantity | 2 |
| Basic Switching RJ-45 Ethernet Ports Quantity | 8 |
| Basic Switching RJ-45 Ethernet Ports Type | 2.5G Ethernet (100/1000/2500) |
| Installed SFP Modules Quantity | 0 |
| Installed SFP+ Modules Quantity | 0 |
| Power Connector | AC/DC |
| Networking Standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3x |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Ethernet LAN Data Rates | 10, 100, 1000, 2500 Mbit/s |
| Broadcast Storm Control | Yes |
| 10G Support | No |
| Virtual LAN Features | Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP Snooping | Yes |
| Jumbo Frames | 9000 |
| Packet Buffer Memory | 9 MB |
| MAC Address Table | 16000 entries |
| Switching Capacity | 80 Gbit/s |
| Jumbo Frames Support | Yes |
| Static Route | Yes |
| Forwarding Rate | 59.52 Mpps |
| Loop Protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Security Algorithms | SNMP, SNMPv2, SNMPv3 |
| Access Control List (ACL) | Yes |
| Authentication Type | RADIUS |
| DHCP Features | DHCP relay, DHCP server, DHCPv6 client, DHCPv6 snooping |
| Multicast Support | Yes |
| Wall Mountable | Yes |
| Form Factor | Desktop/Wall-Mounting |
| Product Colour | Black |
| LED Indicators | Yes |
| Rack Mounting | Yes |
| Power Consumption (Max) | 180.1 W |
| Power Supply Included | Yes |
| Power Source | AC |
| Power over Ethernet Plus (PoE+) Ports Quantity | 8 |
| Total Power over Ethernet (PoE) Budget | 160 W |
| Power over Ethernet (PoE) | Yes |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90% |
| Heat Dissipation | 614.58 BTU/h |
| Width | 8.9" (226 mm) |
| Depth | 5.16" (131 mm) |
| Height | 1.38" (35 mm) |
| Quick Start Guide | Yes |
| Sustainability Compliance | Yes |
| Compliance Certificates | CE, Federal Communications Commission (FCC), RoHS |
