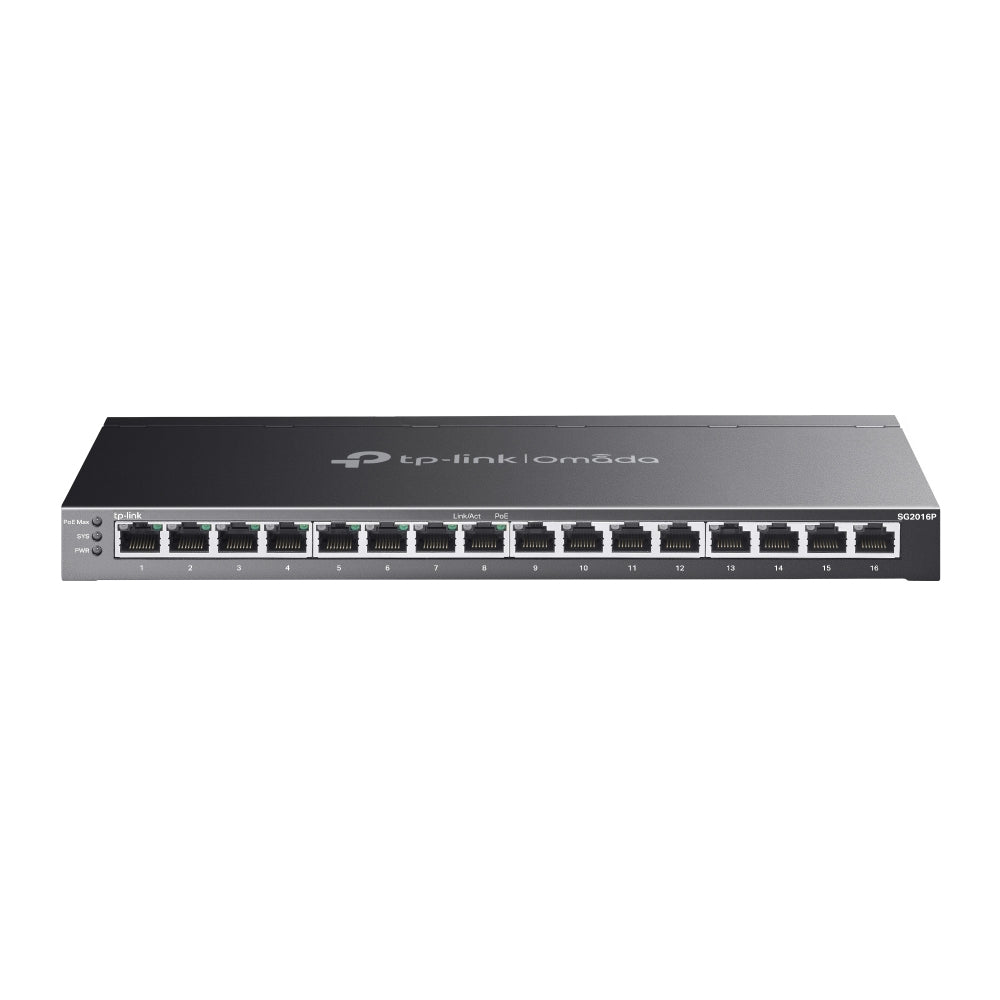

TP-Link Omada SG2016P network switch Managed L2/L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Vendor:
TP-LINK
SKU:
SG2016P
- £124.40
-
- £124.40
- Unit price
- per
Subtotal:
£124.40
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xTP-Link’s brand new Omada smart switches provide huge upgrade comparing with previous versions. The switches can be managed by Omada SDN Controller, which provides professional and reliable one-step solutions. Integrated L2 and L2+ features such as 802.1Q VLAN, QoS, IGMP Snooping and static routing provide cost-effective networking solutions for small and medium-sized businesses without sacrificing enhanced usability and strong performance.
Technical Specs
x| Specification | Detail |
|---|---|
| ARP Inspection | Yes |
| Switch Type | Managed |
| Web-Based Management | Yes |
| System Event Log | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| MIB Support | RFC1213, RFC1493, RFC2674, RFC2620, RFC2618, RFC2925, RFC1757 |
| Switch Layer | L2/L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-Managed | Yes |
| Basic Switching RJ-45 Ethernet Ports | 16 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Installed SFP Modules | 0 |
| Installed SFP+ Modules | 0 |
| Power Connector | DC-in jack |
| Copper Ethernet Cabling Technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking Standards | IEEE 802.11w, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Ethernet LAN Data Rates | 10, 100, 1000 Mbit/s |
| Broadcast Storm Control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G Support | No |
| Auto-Negotiation | Yes |
| Virtual LAN Features | Multicast VLAN, Tagged VLAN, Voice VLAN |
| IGMP Snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Jumbo Frames | 9000 |
| Packet Buffer Memory | 4.1 MB |
| MAC Address Table | 8000 entries |
| Switching Capacity | 32 Gbit/s |
| Number of Queues | 8 |
| Jumbo Frames Support | Yes |
| Forwarding Rate | 23.81 Mpps |
| MLD Snooping | MLD v1, MLD v2 |
| IP-MAC-Port Binding | Yes |
| BPDU Filtering/Protection | Yes |
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| SSH/SSL Support | Yes |
| Security Algorithms | EAP-MD5, HTTPS, SNMP, SNMPv2, SNMPv3, SSH, SSL/TLS |
| MAC Address Filtering | Yes |
| Access Control List (ACL) | Yes |
| Queue Scheduling Algorithms | SP, Weighted Round Robin (WRR) |
| MAC Address Entries | Dynamic MAC address entries, Static MAC address entries |
| DHCP Features | DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Supported Network Protocols | ICMP, TCPv6, UDPv6, Ping6, Tracert6, Telnet (v6), TFTP, TCP/UDP, DSCP/IP, SSLv3, TLS 1.2 |
| IPv4 & IPv6 Features | Dual stack IPv4/IPv6 |
| Product Colour | Black |
| LED Indicators | PoE, Power, System |
| Rack Mounting | Yes |
| Certification | CE, FCC, RoHS |
| Firmware Upgradeable | Yes |
| Fanless | Yes |
| Power Consumption (Max) | 146.5 W |
| DC Input Voltage | 53.5 V |
| Power Source | DC/PoE |
| Power over Ethernet Plus (PoE+) Ports | 8 |
| Total Power over Ethernet (PoE) Budget | 120 W |
| Power over Ethernet (PoE) | Yes |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 10 - 90% |
| Heat Dissipation | 499.98 BTU/h |
| Width | 286 mm (11.3") |
| Depth | 111.7 mm (4.4") |
| Height | 25.4 mm (1") |
| Manual | Yes |
| Cables Included | AC |
