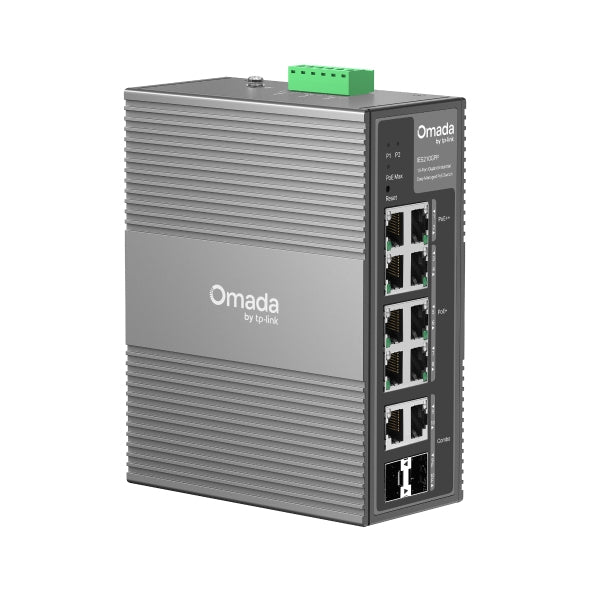

TP-Link Omada IES210GPP network switch Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail Gray
Vendor:
TP-LINK
SKU:
IES210GPP
- £186.13
-
- £186.13
- Unit price
- per
Subtotal:
£186.13
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xOmada Industrial 10-Port Gigabit Easy Managed PoE++ Switch Industrial-Grade Protection Built for Harsh Environments
Features
x- Features 10 Gigabit ports, including 2 PoE++ ports, 6 PoE+ ports, and 2 RJ45/SFP combo ports for flexible network connectivity.
- Provides a 240W total PoE budget for powering multiple compatible network devices.
- Supports an operating temperature range of 40°C to 75°C for reliable performance in demanding environments.
- 12–57V DC 1+1 redundant power inputs provide enhanced power reliability and continuous operation.
- Industrial-grade IP40 aluminum casing provides durable protection for demanding networking environments.
- Offers abundant features designed specifically for CCTV networking applications and surveillance deployments.
- Easy centralized management simplifies network configuration, monitoring, and administration.
- DIN-rail and wall-mounting options provide flexible installation for industrial and professional environments.
Technical Specs
x| Specification | Detail |
|---|---|
| Switch Type | Managed |
| Web-Based Management | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| Cloud-Managed | Yes |
| Basic Switching RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Combo SFP Ports | 2 |
| Networking Standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt |
| VLAN Support | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 4000 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Ethernet LAN Data Rates | 10, 100, 1000 Mbit/s |
| Broadcast Storm Control | Yes |
| Auto MDI/MDI-X | Yes |
| 10G Support | No |
| Auto-Negotiation | Yes |
| IGMP Snooping | Yes |
| Jumbo Frames | 15000 |
| Packet Buffer Memory | 4000 MB |
| MAC Address Table | 8000 entries |
| Switching Capacity | 20 Gbit/s |
| Store-and-Forward | Yes |
| Jumbo Frames Support | Yes |
| Forwarding Rate | 14.88 Mpps |
| Loop Protection | Yes |
| DHCP Features | DHCP client |
| Product Colour | Gray |
| LED Indicators | Yes |
| Form Factor | DIN rail |
| Rack Mounting | Yes |
| DC Input Voltage | 12 - 57 V |
| Power Source | DC |
| Power over Ethernet Plus (PoE+) Ports | 6 |
| Total Power over Ethernet (PoE) Budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet 4PPoE (PoE++) Ports | 2 |
| Width | 155 mm (6.1") |
| Depth | 120 mm (4.72") |
| Height | 60 mm (2.36") |
