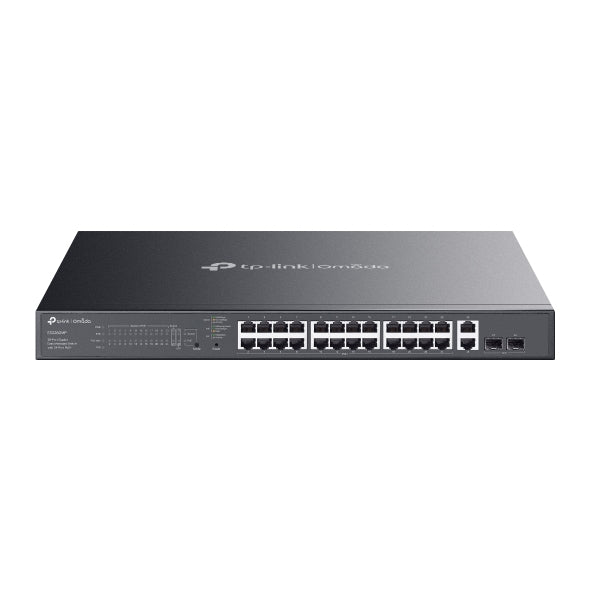

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Vendor: TP-LINK
SKU: ES228GMP
£209.88
£209.88
Subtotal: £209.88

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£209.88
TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES228GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£209.88
Description
Description
x
Omada Cloud Essentials — A Free and Easy Cloud-Based Network Management Omada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Switch Type Managed
Web-Based Management Yes
Quality of Service (QoS) Support Yes
Multicast Support Yes
Switch Layer L2
Unified Static Configuration Yes
Cloud-Managed Yes
SFP Module Slots Quantity 2
Basic Switching RJ-45 Ethernet Ports Quantity 26
Basic Switching RJ-45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (Copper) Ports Quantity 26
Copper Ethernet Cabling Technology 10BASE-T, 100BASE-X, 1000BASE-T, 1000BASE-X
Networking Standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN Support Yes
Port Mirroring Yes
Number of VLANs 32
Link Aggregation Yes
Flow Control Support Yes
Ethernet LAN Data Rates 10, 100, 1000 Mbit/s
Broadcast Storm Control Yes
Auto MDI/MDI-X Yes
10G Support No
Fast Leave Yes
Virtual LAN Features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP Snooping Yes
Jumbo Frames 15000
Packet Buffer Memory 4 MB
MAC Address Table 8000 entries
Switching Capacity 56 Gbit/s
Store-and-Forward Yes
Jumbo Frames Support Yes
Forwarding Rate 41.66 Mpps
Queue Scheduling Algorithms Weighted Round Robin (WRR)
DHCP Features DHCP client
Product Colour Black
LED Indicators Yes
Housing Material Metal
Rack Mounting Yes
Number of Fans 2 fan(s)
Certification FCC, CE, RoHS
Noise Level 46.2 dB
Mean Time Between Failures (MTBF) 224143 h
Flash Memory 64 MB
Firmware Upgradeable Yes
Fanless No
Power Consumption (Max) 454.8 W
Power Supply Included Yes
Surge Protection Voltage 6 kV
AC Input Voltage 100 - 240 V
AC Input Frequency 50/60 Hz
Surge Protection Yes
Power Source AC
PoE Power per Port 30 W
PoE+ Ports Quantity 24
Total PoE Budget 384 W
Power over Ethernet (PoE) Yes
PoE Type Supported PoE+
Storage Temperature -40 - 70 °C
Storage Relative Humidity 5 - 90%
Operating Temperature -5 - 45 °C
Operating Relative Humidity 10 - 90%
Heat Dissipation 1546.15 BTU/h
Width 17.3" (440 mm)
Depth 13" (330 mm)
Height 1.73" (44 mm)
Rack Mount Kit Yes
Quick Start Guide Yes
Manual Yes
Cables Included AC
Compliance Certificates CE, Federal Communications Commission (FCC), RoHS
