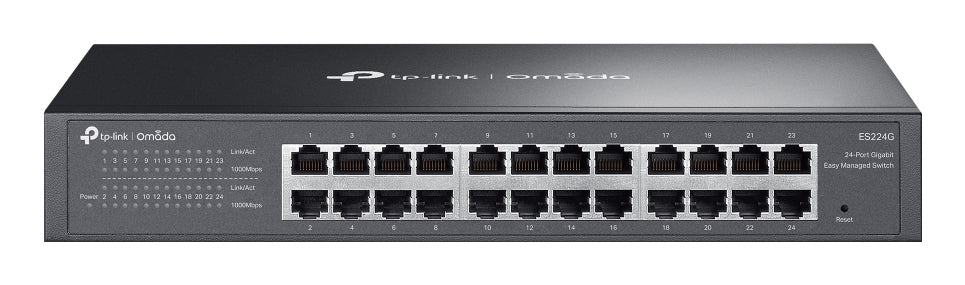

TP-Link Omada ES224G network switch Managed L2 Gigabit Ethernet (10/100/1000) Black
Vendor:
TP-LINK
SKU:
ES224G
- £76.84
-
- £76.84
- Unit price
- per
Subtotal:
£76.84
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xOmada Cloud Essentials is a free, easy-to-use version of the Omada Cloud-based Controller. It provides cloud-based centralized management and monitoring for the Omada networking system, covering access points, switches, and gateways, ideal for surveillance networks and small businesses.
Technical Specs
x| Specification | Detail |
|---|---|
| Switch Type | Managed |
| Web-Based Management | Yes |
| Quality of Service (QoS) Support | Yes |
| Multicast Support | Yes |
| Switch Layer | L2 |
| Unified Static Configuration | Yes |
| Cloud-Managed | Yes |
| Basic Switching RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports Type | Gigabit Ethernet (10/100/1000) |
| Installed SFP Modules | 0 |
| Installed SFP+ Modules | 0 |
| Gigabit Ethernet (Copper) Ports | 24 |
| VLAN Support | Yes |
| Port Mirroring | Yes |
| Number of VLANs | 32 |
| Link Aggregation | Yes |
| Flow Control Support | Yes |
| Broadcast Storm Control | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
| Fast Leave | Yes |
| Virtual LAN Features | MTU VLAN, Port-based VLAN |
| IGMP Snooping | Yes |
| Jumbo Frames | 15000 |
| Packet Buffer Memory | 4 MB |
| MAC Address Table | 8000 entries |
| Switching Capacity | 48 Gbit/s |
| Store-and-Forward | Yes |
| Jumbo Frames Support | Yes |
| Forwarding Rate | 35.7 Mpps |
| Queue Scheduling Algorithms | Weighted Round Robin (WRR) |
| DHCP Features | DHCP client |
| Firmware Upgradeable | Yes |
| Fanless | Yes |
| Product Colour | Black |
| Rack Mounting | Yes |
| Power Supply Included | Yes |
| Surge Protection | Yes |
| Surge Protection Voltage | 6 kV |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Power Source | AC |
| Storage Temperature | -40 - 70 °C |
| Storage Relative Humidity | 5 - 90% |
| Operating Temperature | -5 - 50 °C |
| Operating Relative Humidity | 10 - 90% |
| Width | 294 mm (11.6") |
| Depth | 140 mm (5.51") |
| Height | 44 mm (1.73") |
| Rack Mount Kit | No |
| User Guide | Yes |
| Cables Included | AC |
| Compliance Certificates | CE, Federal Communications Commission (FCC), RoHS |
