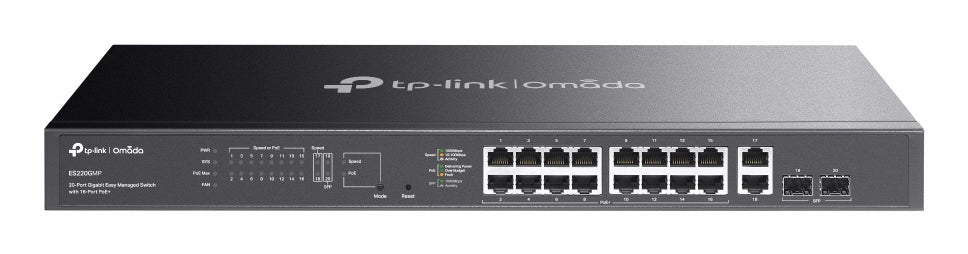

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

Vendor: TP-LINK
SKU: ES220GMP
£150.80
£150.80
Subtotal: £150.80

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£150.80
TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

TP-Link Omada ES220GMP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black

£150.80
Description
Description
x
Omada Cloud Essentials - A Free and Easy Cloud-Based Network Mnagement Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.
Features
Features
x
Technical Specs
Technical Specs
x
Specification Detail
Switch Type Managed
Web-Based Management Yes
Quality of Service (QoS) Support Yes
Switch Layer L2
Unified Static Configuration Yes
Cloud-Managed Yes
SFP Module Slots 2
Basic Switching RJ-45 Ethernet Ports 18
Basic Switching RJ-45 Ethernet Ports Type Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (Copper) Ports 18
Power Connector AC-in jack
Networking Standards IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
VLAN Support Yes
Port Mirroring Yes
Number of VLANs 32
Link Aggregation Yes
Flow Control Support Yes
Auto MDI/MDI-X Yes
10G Support No
Auto-Negotiation Yes
Fast Leave Yes
Zero Touch Provisioning (ZTP) Yes
Virtual LAN Features MTU VLAN, Port-based VLAN, Tagged VLAN
IGMP Snooping Yes
Jumbo Frames 15000
Packet Buffer Memory 4 MB
MAC Address Table 8000 entries
Switching Capacity 40 Gbit/s
Store-and-Forward Yes
Jumbo Frames Support Yes
Forwarding Rate 29.76 Mpps
Loop Protection Yes
Queue Scheduling Algorithms Weighted Round Robin (WRR)
DHCP Features DHCP client
Product Colour Black
Stackable No
LED Indicators Yes
Rack Mounting Yes
Number of Fans 2 fan(s)
Noise Level 41.5 dB
Mean Time Between Failures (MTBF) 310550.7 h
Flash Memory 64 MB
Firmware Upgradeable Yes
Power Consumption (Max) 289.7 W
Power Supply Included Yes
Surge Protection Voltage 6 kV
AC Input Voltage 100 - 240 V
AC Input Frequency 50/60 Hz
Surge Protection Yes
Power Source AC
Power over Ethernet (PoE) Power per Port 30 W
Power over Ethernet Plus (PoE+) Ports 16
Total Power over Ethernet (PoE) Budget 250 W
Power over Ethernet (PoE) Yes
Power over Ethernet (PoE) Type Supported PoE+
Storage Temperature -40 - 70 °C
Storage Relative Humidity 5 - 90%
Operating Temperature -5 - 50 °C
Operating Relative Humidity 10 - 90%
Heat Dissipation 984.88 BTU/h
Width 440 mm (17.3")
Depth 180 mm (7.09")
Height 44 mm (1.73")
Rack Mount Kit Yes
User Guide Yes
Cables Included AC
Package Type Box
Compliance Certificates CE, Federal Communications Commission (FCC), RoHS
