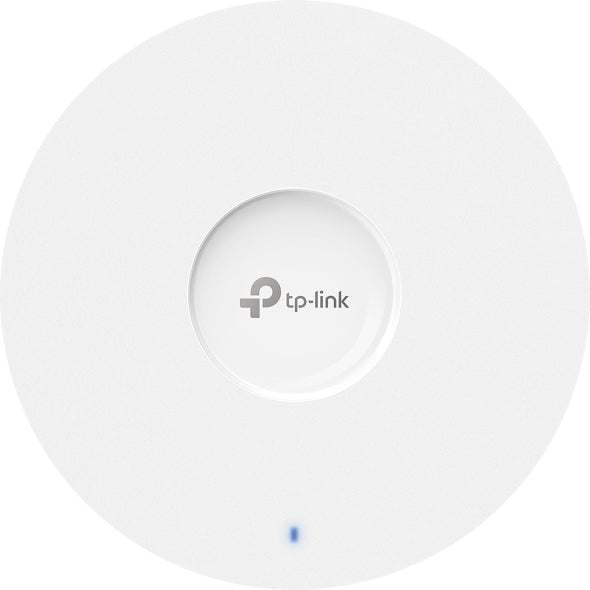

TP-Link Omada EAP683 UR wireless access point 6000 Mbit/s White Power over Ethernet (PoE)

Ethernet LAN Data Rates

10/100/1000/2500 Mbit/s

Maximum Data Transfer Rate

6000 Mbit/s

Maximum Data Transfer Rate (2.4 GHz)

1148 Mbit/s

Maximum Data Transfer Rate (5 GHz)

4804 Mbit/s

Supported Frequency Band

2.4–6 GHz

2.4 GHz Support

Yes

5 GHz Support

Yes

6 GHz Support

No

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax, IEEE 802.3at

Maximum Number of Users

510

MIMO Support

Yes

MIMO Type

Multi-User MIMO

Automatic Channel Selection

Yes

Automatic Channel Scanning

Yes

Fast Roaming

Yes

Band Steering

Yes

Airtime Fairness (ATF)

Yes

Beamforming

Yes

VLAN Support

Yes

Rate Limiting

Yes

Quality of Service (QoS)

Yes

Syslog

Yes

Firmware Upgradeable

Yes

Security Protocols

HTTPS, SNMP, SNMPv2, SNMPv3, SSH

MAC Address Filtering

Yes

Access Control List (ACL)

Yes

SSID Features

Multiple SSIDs

USB 2.0 Ports

0

Ethernet LAN (RJ-45) Ports

1

DC-In Jack

Yes

Power over Ethernet (PoE)

Yes

DC Voltage

12 V

Placement

Ceiling, Wall

Product Colour

White

Reset Button

Yes

LED Indicators

Yes

Antenna Type

Internal

Maximum Antenna Gain

5 dBi

Antenna Direction

Omni-directional

Width

220 mm

Depth

220 mm

Height

32.5 mm

Operating Temperature

0–40 °C

Storage Temperature

-40–70 °C

Operating Relative Humidity

10–90%

Storage Relative Humidity

5–90%

Quick Start Guide

Yes

Mounting Kit

Yes

Package Type

Box

Quantity per Pack

1 pc
