| Specification | Detail |
|---|---|

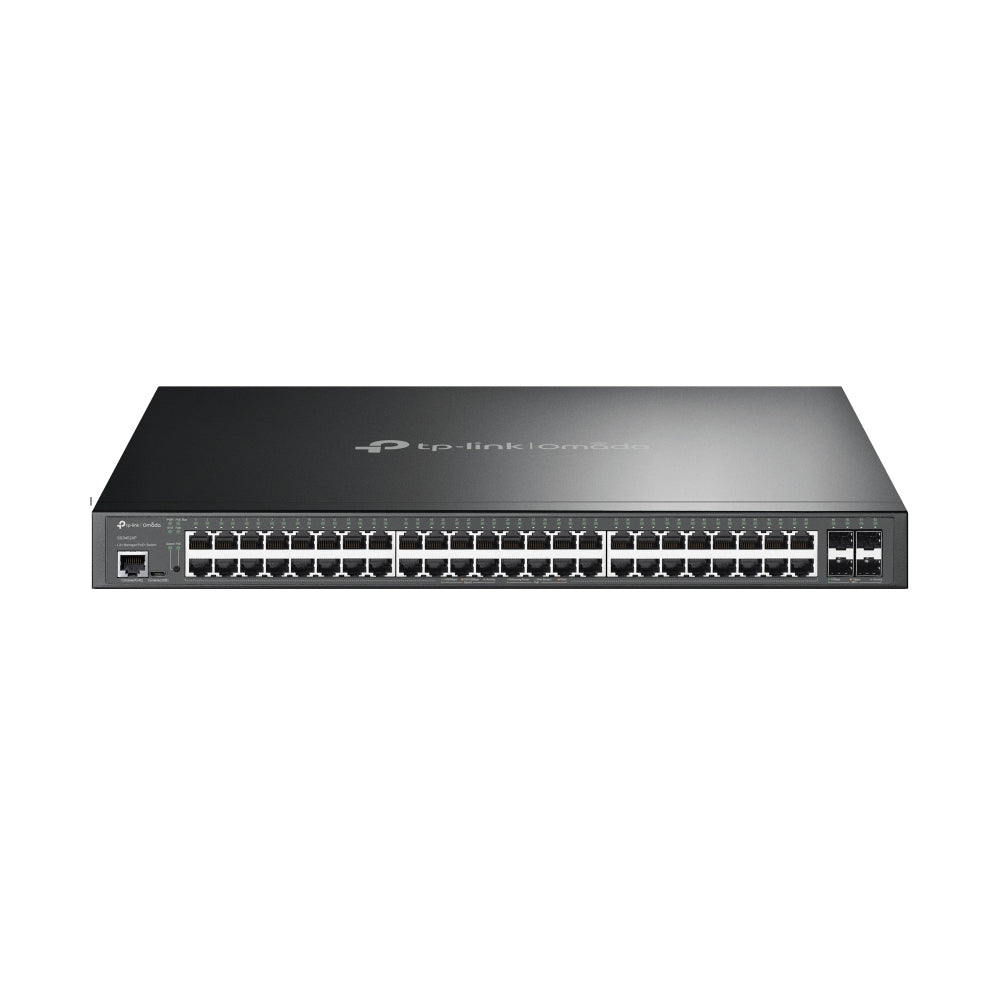

| Product Type | L2+ Managed PoE+ Switch |
| Switch Type | Managed |
| Switch Layer | Layer 2+ (L2+) |
| Web-Based Management | Yes |
| Cloud Management | Yes |
| QoS Support | Yes |
| Multicast Support | Yes |
| ARP Inspection | Yes |
| RJ-45 Ports | 48 × Gigabit Ethernet (10/100/1000) |
| SFP+ Ports | 4 × SFP+ |
| Console Port | RJ-45 / Micro-USB |
| 10G Support | Yes |
| VLAN Support | Yes |
| Spanning Tree Protocol | Yes |
| Rate Limiting | Yes |
| Port Mirroring | Yes |
| Link Aggregation | Yes |
| Flow Control | Yes |
| Broadcast Storm Control | Yes |
| IGMP Snooping | Yes |
| Jumbo Frames | 9000 Bytes |
| Packet Buffer Memory | 12 MB |
| MAC Address Table | 16,000 entries |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.9 Mpps |
| Store-and-Forward | Yes |
| ACL Support | Yes |
| MAC Address Filtering | Yes |
| IP-MAC-Port Binding | Yes |
| SSH/SSL Support | Yes |
| DHCP Features | DHCP Client, DHCP Relay, DHCP Server |
| PoE Support | Yes |
| PoE+ Ports | 48 |
| PoE Power per Port | 30 W |
| Total PoE Budget | 500 W |
| Form Factor | 1U Rack Mount |
| Rack Mountable | Yes |
| Product Color | Black |
| LED Indicators | Yes |
| Cooling | 3 Internal Fans |
| Power Supply | Included |
| Power Source | AC |
| Power Connector | AC-in Jack |
| Power Consumption (Max) | 635.7 W |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50/60 Hz |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10%–90% RH |
| Storage Temperature | -40°C to 70°C |
| Storage Humidity | 5%–90% RH |
| Heat Dissipation | 2169.2 BTU/h |
| Dimensions (W × D × H) | 440 × 330 × 44 mm |
| Certification | CE, FCC, RoHS |
| Package Contents | Quick Start Guide, AC Cable |
