| Specification | Detail |
|---|---|

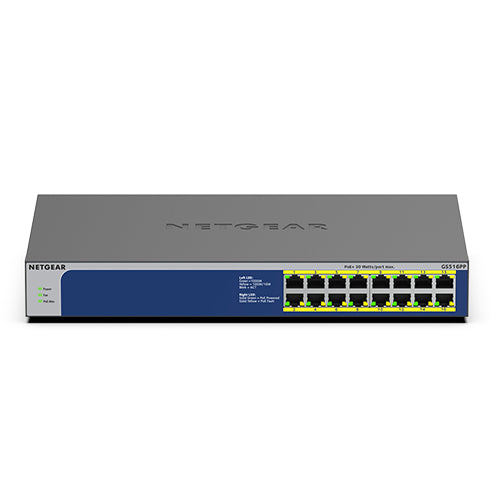

| Product Type | Unmanaged Gigabit PoE+ Switch |
| Switch Type | Unmanaged |
| Quality of Service (QoS) Support | Yes |
| RJ-45 Ports | 16 × Gigabit Ethernet (10/100/1000) |
| Copper Ethernet Cabling Technology | 10GBASE-T, 100BASE-T, 1000BASE-T |
| Networking Standards | IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u |
| Full Duplex | Yes |
| Half Duplex | Yes |
| Auto MDI/MDI-X | Yes |
| 10G Support | No |
| Packet Forwarding Rate (1 Gbps) | 1.448 Mpps |
| Jumbo Frames | 9216 |
| Jumbo Frames Support | Yes |
| Latency (1 Gbps) | 12 µs |
| Packet Buffer Memory | 0.192 MB |
| MAC Address Table | 8,000 entries |
| Switching Capacity | 32 Gbps |
| Queue Scheduling Algorithms | Weighted Round Robin (WRR) |
| Product Color | Blue, Grey |
| Housing Material | Metal |
| LED Indicators | Activity, Fan Fail, Link, PoE, Power, Speed |
| Rack Mounting | Yes |
| Number of Fans | 2 |
| MTBF | 2,415,333.9 hours |
| Maximum Power Consumption | 316.1 W |
| Power Supply Included | Yes |
| AC Input Voltage | 100–240 V |
| AC Input Frequency | 50–60 Hz |
| PoE Support | Yes |
| PoE+ Ports | 16 |
| PoE Power per Port | 30 W |
| Total PoE Budget | 260 W |
| PoE Type Supported | PoE+ |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -20°C to 70°C |
| Operating Humidity | 10%–90% RH |
| Storage Humidity | 10%–95% RH |
| Operating Altitude | 0–3000 m |
| Dimensions (W × D × H) | 330 × 207 × 43 mm |
| Weight | 2.3 kg |
| HS Code | 85176990 |
| Certifications | FCC, ICES-003, EN 55024/55032/55035, AS/NZS CISPR 32, VCCI, BSMI, KCC, UL, CB, LVD |
