| Specification | Detail |
|---|---|

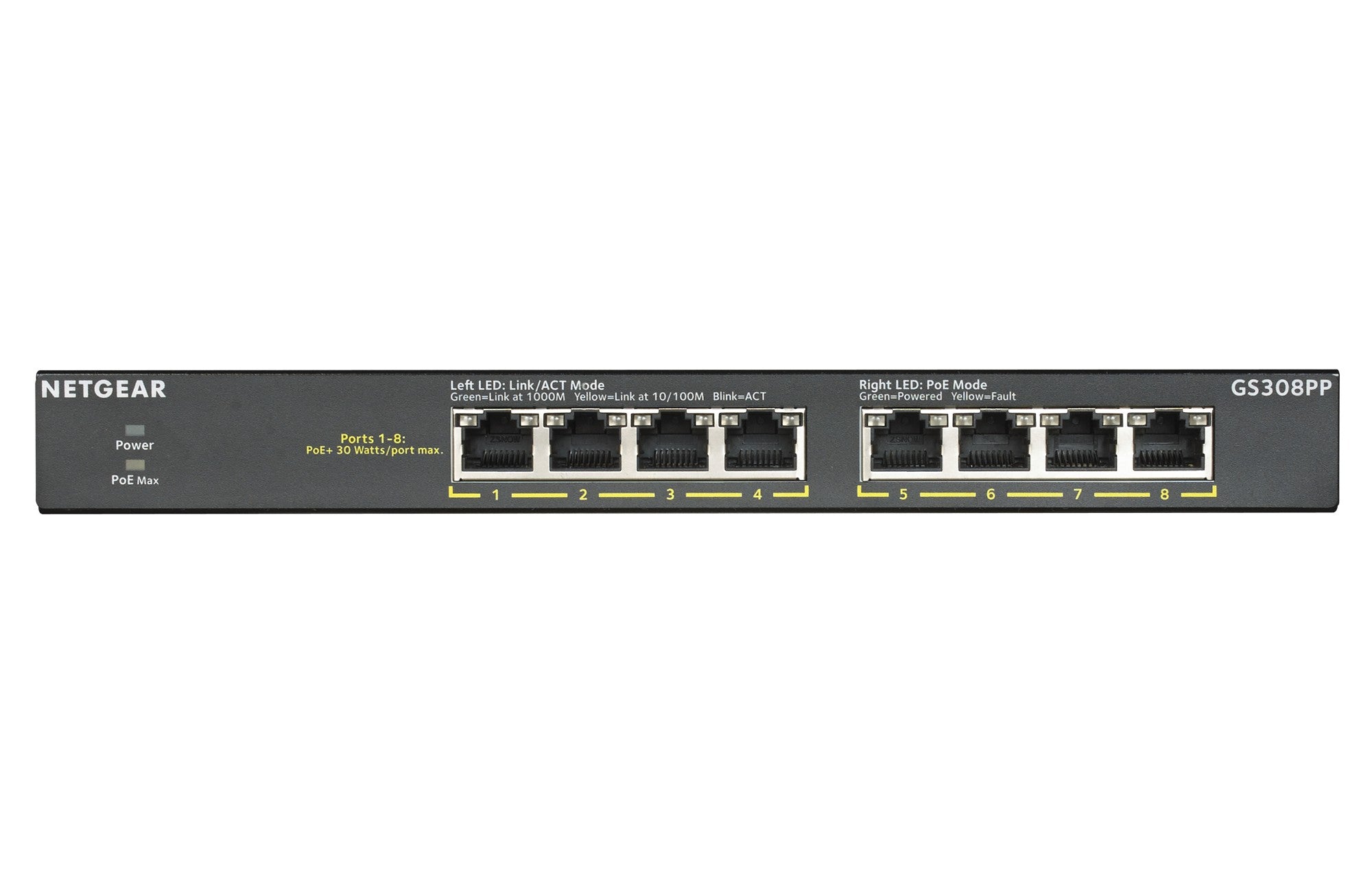

| Product Type | Unmanaged Gigabit PoE+ Switch |
| Switch Type | Unmanaged |
| Quality of Service (QoS) Support | Yes |
| RJ-45 Ports | 8 × Gigabit Ethernet (10/100/1000) |
| Auto-Sensing | Yes |
| Networking Standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Full Duplex | Yes |
| Flow Control Support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-Negotiation | Yes |
| 10G Support | No |
| Packet Forwarding Rate (1 Gbps) | 1.448 Mpps |
| Jumbo Frames | 9216 |
| Jumbo Frames Support | Yes |
| Latency (1 Gbps) | 3 µs |
| Packet Buffer Memory | 0.192 MB |
| MAC Address Table | 4,000 entries |
| Switching Capacity | 16 Gbps |
| Wall Mountable | Yes |
| Rack Mountable | Yes |
| Product Color | Black |
| Housing Material | Metal |
| LED Indicators | Activity, Link, PoE, Power, Speed |
| MTBF | 2,752,476 hours |
| Power Connector | DC-in jack |
| Maximum Power Consumption | 87.9 W |
| Input Current | 1.66 A |
| DC Input Voltage | 54 V |
| PoE Support | Yes |
| PoE+ Ports | 8 |
| PoE Power per Port | 30 W |
| Total PoE Budget | 130 W |
| PoE Type Supported | PoE+ |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 0%–90% RH |
| Storage Temperature | -20°C to 70°C |
| Operating Altitude | 0–3000 m |
| Heat Dissipation | 300.6 BTU/h |
| Certifications | CE Mark, FCC Part 15 Class A, IC Class A, RCM, VCCI, BSMI, KC |
| Dimensions (W × D × H) | 236 × 102 × 27 mm |
| Weight | 600 g |
| HS Code | 85176990 |
