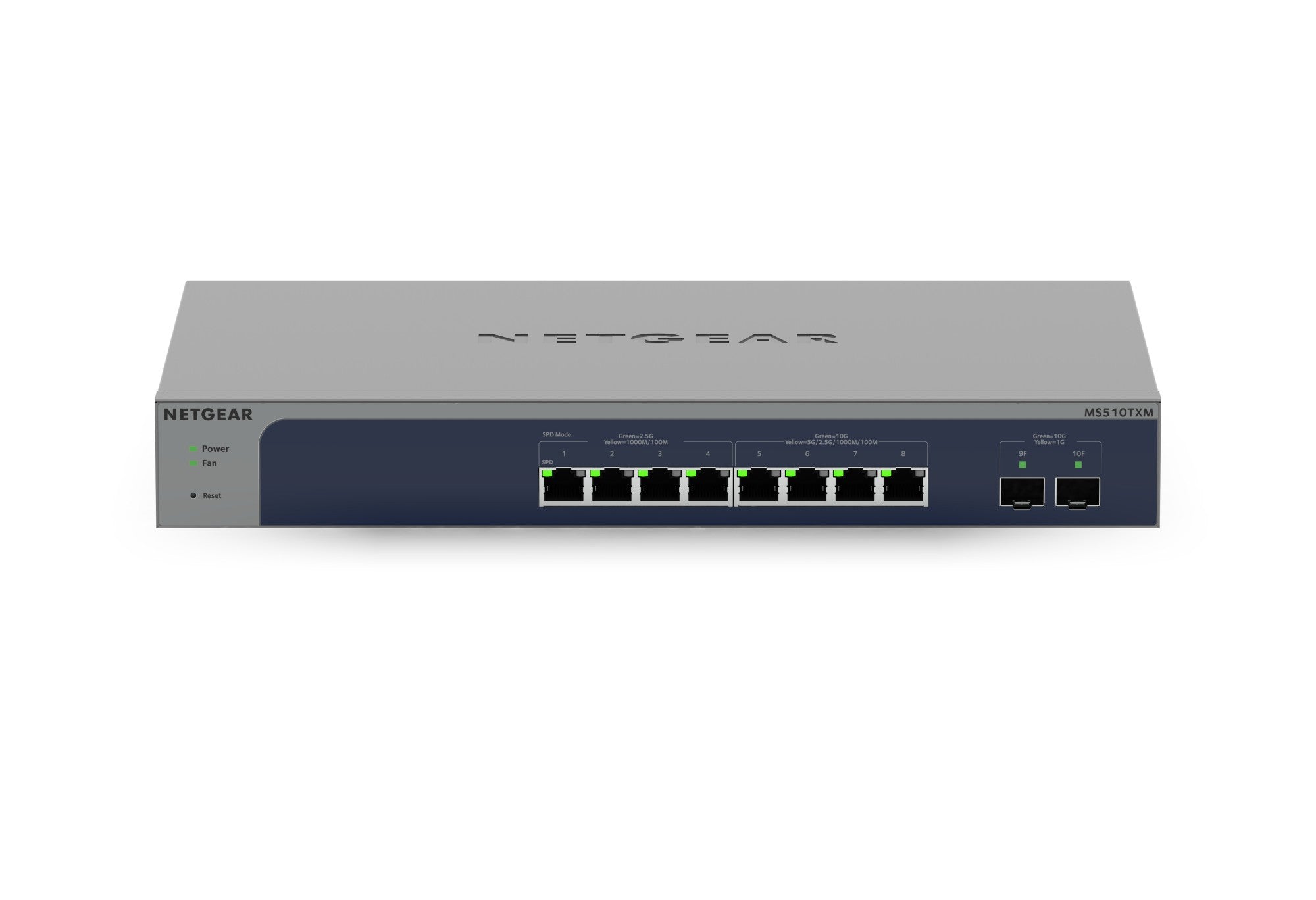

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

Vendor: Netgear
SKU: MS510TXM-100EUS
£0.00
£0.00
Subtotal: £0.00

Delivery

Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.

Standard £5.00 - 3 to 5 business days

Express £15.00 - 1 to 2 business days

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

£0.00
NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

NETGEAR 8-Port Multi-Gigabit/10g Ethernet Smart Managed Pro Switch with 2 SFP+ Ports (MS510TXM)

£0.00
Description
Description
x
NETGEAR Smart Managed Pro Switches with Optional Remote/Cloud Management The NETGEAR® MS510TXM 8-Port Multi-Gigabit/10G Smart Managed Pro Switch offers 4 ports 1G/2.5G and 4 ports multi-gig/10G with 2 dedicated 10 Gigabit fiber ports for WiFi 6 AP connectivity, IP surveillance and mobility. MS510TXM can be managed remotely by NETGEAR Insight and includes 1-year of Insight Premium or Pro subscription with purchase.
Features
Features
x
  • Multi-speed Ethernet ports provide flexible, auto-adaptive wired connectivity for multi-Gigabit devices.
  • Features 2 × 10G SFP+ fiber uplinks supporting 1G/10GBASE-X fiber SFP+ connectivity for high-speed network expansion.
  • Supports quiet desktop operation as well as rack-mounted installation for flexible deployment.
  • Layer 3 static routing supports up to 32 IPv4 and IPv6 routes for efficient network traffic management.
  • Easy-to-use web browser-based management GUI simplifies network configuration, monitoring, and administration.
  • NETGEAR Insight Cloud management activation enables convenient cloud-based network management, with a 1-year Insight subscription included.
  • Energy Efficient Ethernet (IEEE 802.3az) helps reduce power consumption and maximize energy savings.
Technical Specs
Technical Specs
x
Specification Detail
Product Type L2+ Managed Switch
Switch Type Managed
Switch Layer L2+
Web-Based Management Yes
System Event Log Yes
Quality of Service (QoS) Support Yes
Multicast Support Yes
Cloud-Managed Yes
SFP+ Module Slots 2
RJ-45 Ports 8 × 10G Ethernet (100/1000/10000)
Networking Standards IEEE 802.1D, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x
VLAN Support Yes
Number of VLANs 256
Port Mirroring Yes
Broadcast Storm Control Yes
10G Support Yes
IGMP Snooping Yes
Jumbo Frames 10000
Packet Buffer Memory 2 MB
MAC Address Table 32,000 entries
Switching Capacity 140 Gbps
Number of Queues 8
Multicast Groups Filtered 256
ACL Support Yes
Queue Scheduling Algorithms WRR+SP
Password Protection Yes
DHCP Features DHCPv6 Snooping
Product Color Grey
LED Indicators Activity, Fan Fail, Link, Power, Speed
Rack Mountable Yes
Number of Fans 2
Processor Built-in
Processor Frequency 1000 MHz
Internal Memory 256 MB
Flash Memory 64 MB
Firmware Upgradeable Yes
Noise Level 25 dB
MTBF 1,059,519 hours
Maximum Power Consumption 47 W
Power Supply Included Yes
Power Source AC
PoE Support No
Operating Temperature 0°C to 50°C
Operating Humidity 0%–95% RH
Storage Temperature -20°C to 70°C
Storage Humidity 0%–95% RH
Operating Altitude 0–3000 m
Non-Operating Altitude 0–3000 m
Heat Dissipation 160.458 BTU/h
Dimensions (W × D × H) 330 × 206 × 43 mm
Weight 2.08 kg
Rack Rails Yes
User Guide Yes
Cables Included AC
Harmonized System (HS) Code 85176990
