| Specification | Details |
|---|---|
| Graphics Memory | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Warranty | 3-year parts, 3-year labor, and 3-year onsite support with next business day response |
| Chipset | Intel C741 |
| Storage Controller | HPE MR408i-o (12 Gb/s SAS) |
| RAID Support | Yes |
| SSD Interface | SATA 6 Gb/s (Serial ATA/600) |
| SSD Configuration | 2 × 480 GB SSD |
| Total SSD Capacity | 960 GB |
| Number of SSDs | 2 |
| Memory Type | DDR5 SDRAM, Registered (Buffered), ECC |
| Standard Memory | 64 GB |
| Maximum Memory Supported | 2.04 TB |
| Memory Slots Occupied | 2 |
| Weight | 16.71 kg |
| Form Factor | 1U Rack |
| Dimensions (H × W × D) | 42.8 × 434.6 × 605.1 mm |
| Internal 2.5-inch Bays | 8 |
| Total Expansion Bays | 9 |
| Media Drive Bays | 1 |
| SFF Bays | 8 |
| Total Expansion Slots | 2 |
| Hot-Swappable Bays | Yes |
| PCI Express | 1 × x16 FHHL PCIe Gen5 and 1 × OCP 3.0 slot (standard), 1 × optional x16 FHHL PCIe Gen5 |
| VGA Port | Yes (1) |
| Network (RJ-45) Ports | 2 |
| USB Ports | 4 |
| Remote Management | HPE iLO 6 |
| Supported Operating Systems | CentOS, Citrix XenServer, Oracle Linux, Windows Server, SUSE Linux Enterprise Server, Ubuntu, Red Hat Enterprise Linux |
| Product Type | Server |
| Product Line | HPE ProLiant |
| Product Series | DL320 Gen11 |

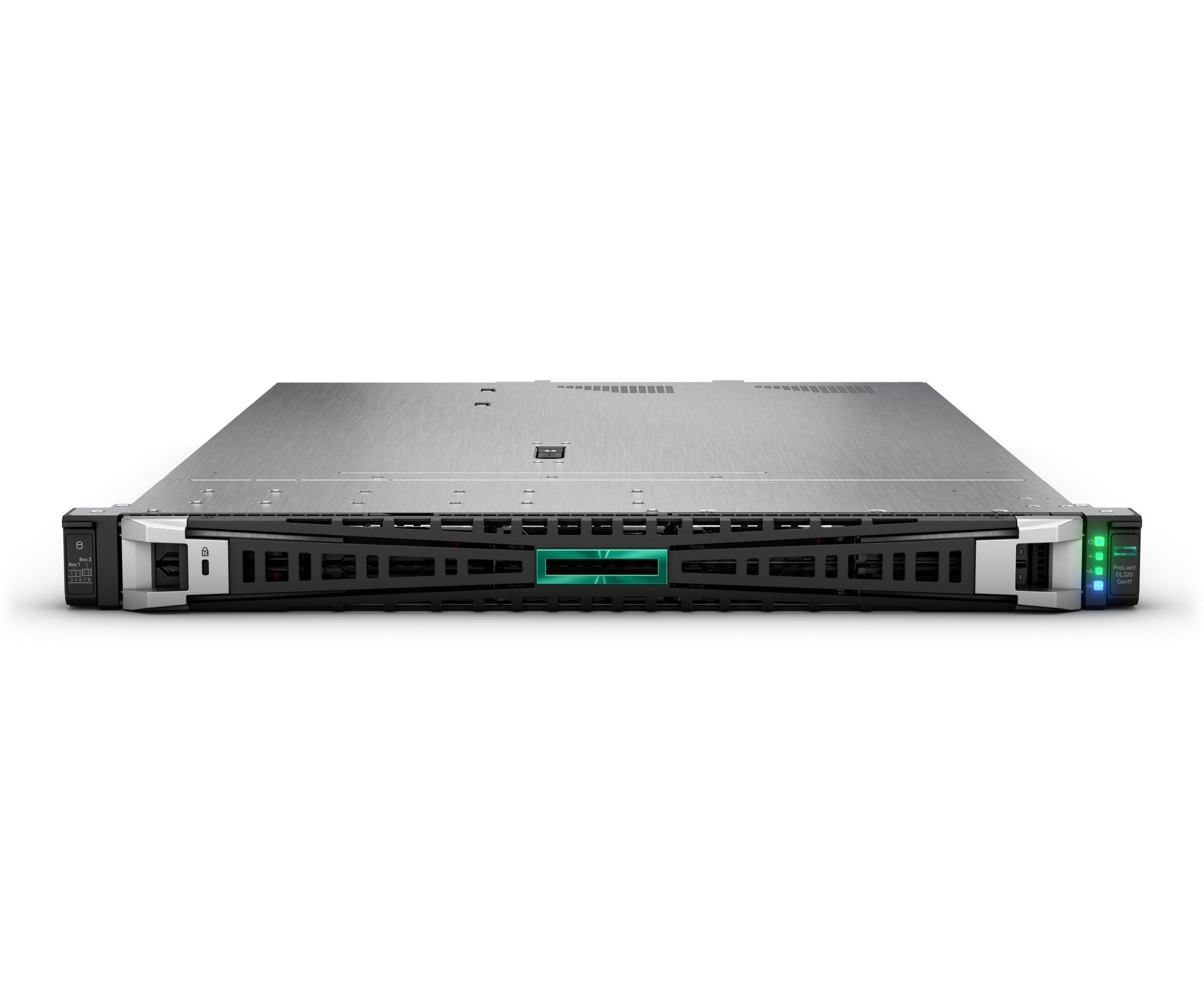

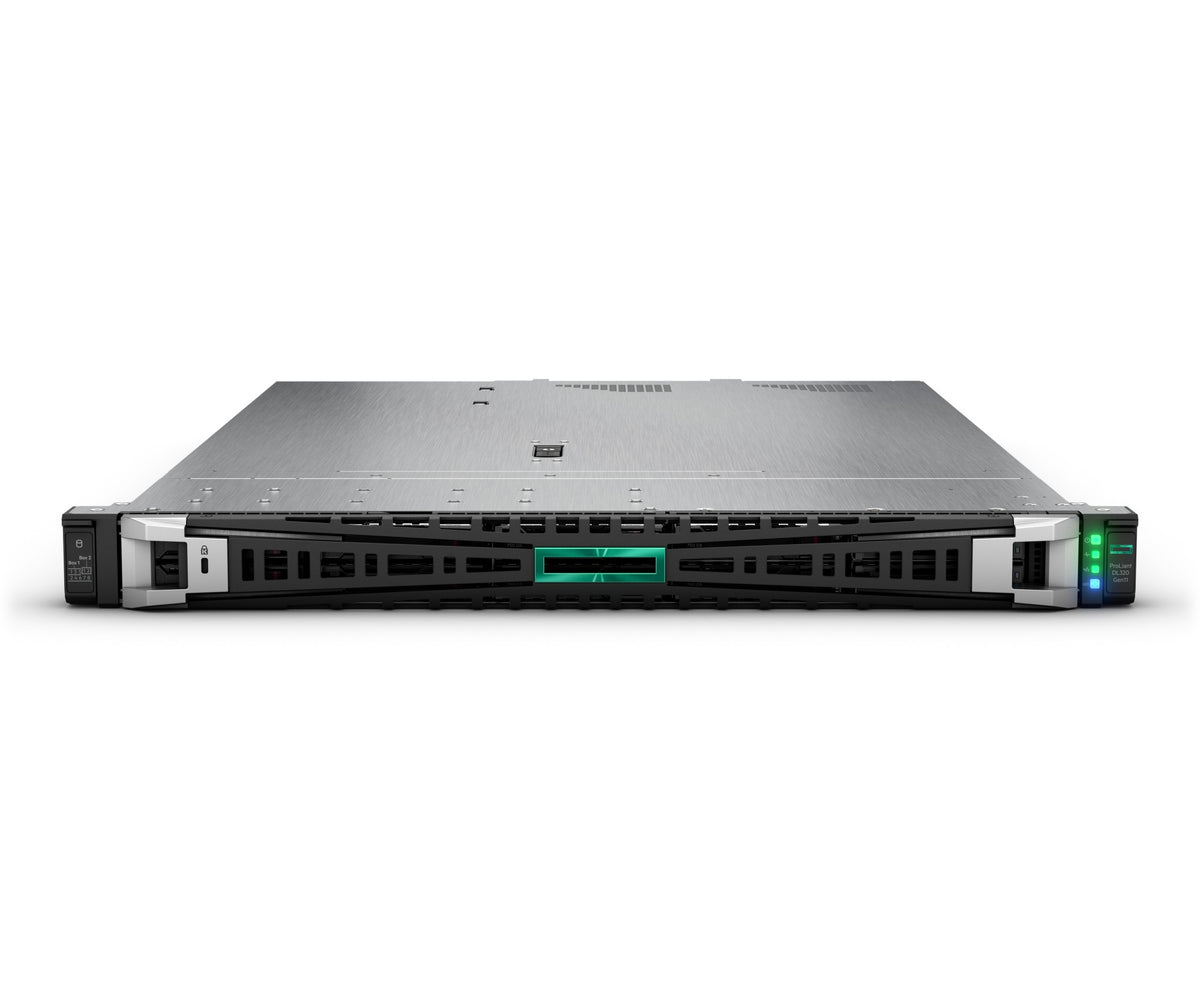

| Product Name | ProLiant DL320 Gen11 Server |
| Manufacturer Part Number | P77243-425 |
| Brand | HPE |
| Manufacturer | Hewlett Packard Enterprise |
| Processor | Intel Xeon Gold 4514Y |
| Processor Generation | 5th Gen |
| Processor Speed | 2.0 GHz |
| Processor Cores | 16 (Hexadeca-core) |
| Processor Cache | 30 MB |
| Installed Processors | 1 |
| Supported Processors | 1 |
| Input Voltage | 120 V AC / 230 V AC |
| Power Source | Power Supply |
| Power Connector | C13/C14 |
| Power Supplies Installed | 2 |
| Power Supplies Supported | 2 |
| Redundant Power Supply | Yes |
| Hot-Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 1000 W (1 kW) |
| Package Contents | ProLiant DL320 Gen11 Server, Rail Kit, 6-ft IEC C13/C14 Jumper Cord |
| Security Features | UEFI Secure Boot, Secure Start, Tamper-Free Updates, Immutable Silicon Root of Trust, Firmware Rollback, FIPS 140-2 Validation, Secure NAND/Data Erase, Common Criteria Certification, PCI DSS Compliance Support, Embedded TPM 2.0, AES & 3DES Encryption, Bezel Locking Kit Option, CNSA Support, Chassis Intrusion Detection, Secure Recovery |
| Environmentally Friendly | Yes |
| Energy Star Certified | Yes (ENERGY STAR 4.0) |
| Energy Efficiency Compliance | Energy-related Products Directive (ErP Lot 9) |
| Environmental Compliance | Waste Electrical and Electronic Equipment (WEEE) |
