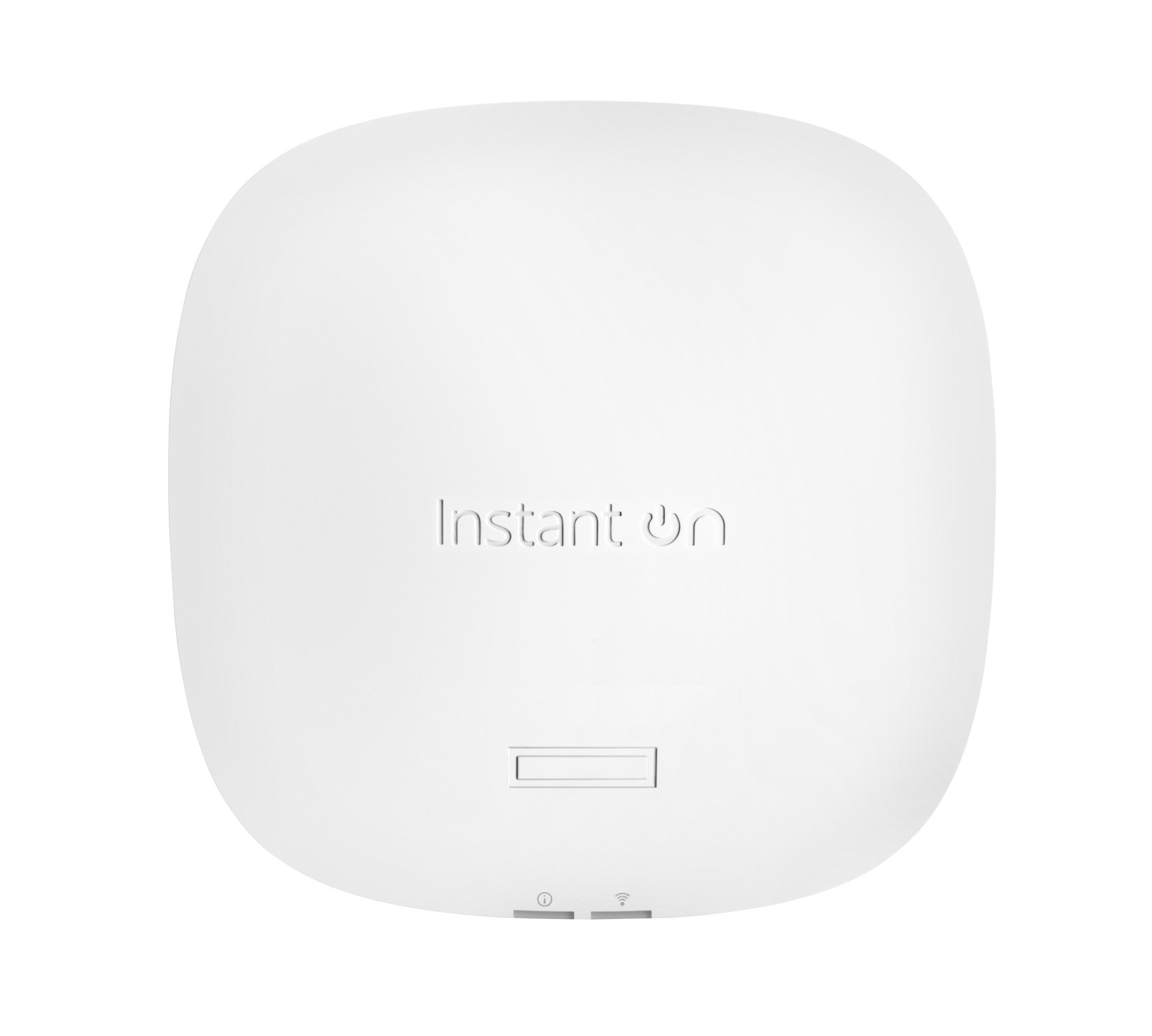

HPE Aruba Networking Networking Instant On Indoor Access Point Wi-Fi 6 4x4 (RW) AP25

Ethernet LAN Data Rate

2500 Mbit/s

Maximum Data Transfer Rate

4800 Mbit/s

Maximum Data Transfer Rate (2.4 GHz)

574 Mbit/s

Maximum Data Transfer Rate (5 GHz)

4800 Mbit/s

Supported Frequency Bands

2.4 GHz, 5 GHz

6 GHz Support

No

Wireless Standard

IEEE 802.11ax (Wi-Fi 6)

MIMO Support

Yes

MIMO Type

Multi-User MIMO

Maximum Number of Users

100

Bluetooth Low Energy (BLE)

Yes

Web-Based Management

Yes

I/O Ports

1 × 2.5 GbE Base-T uplink port, DC power connector, Bluetooth Low Energy (BLE), LED status indicators, Reset/LED control button, Kensington security slot

USB 2.0 Ports

1

Ethernet LAN (RJ-45) Ports

1

DC-In Jack

Yes

Security Algorithms

OWE, WPA2, WPA3

Cable Lock Slot

Yes

Cable Lock Slot Type

Kensington

Maximum Power Consumption

20.1 W

Power over Ethernet (PoE)

Yes

DC Voltage

12 V

Placement

Ceiling, Wall

Mounting

Ceiling/Wall mount clip

Product Colour

White

Reset Button

Yes

Antenna Type

Internal

Maximum Antenna Gain

4.5 dBi

Antenna Direction

Omni-directional

Certifications

Wi-Fi Alliance certified (WFA) 802.11ax (Wi-Fi 6), WPA2, WPA3

Width

203 mm

Depth

45 mm

Height

51 mm

Weight

1.18 kg

Operating Temperature

0–40 °C

Harmonized System (HS) Code

85176990
