| Specification | Details |
|---|---|
| Brand | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | 1300-12XT-2X |

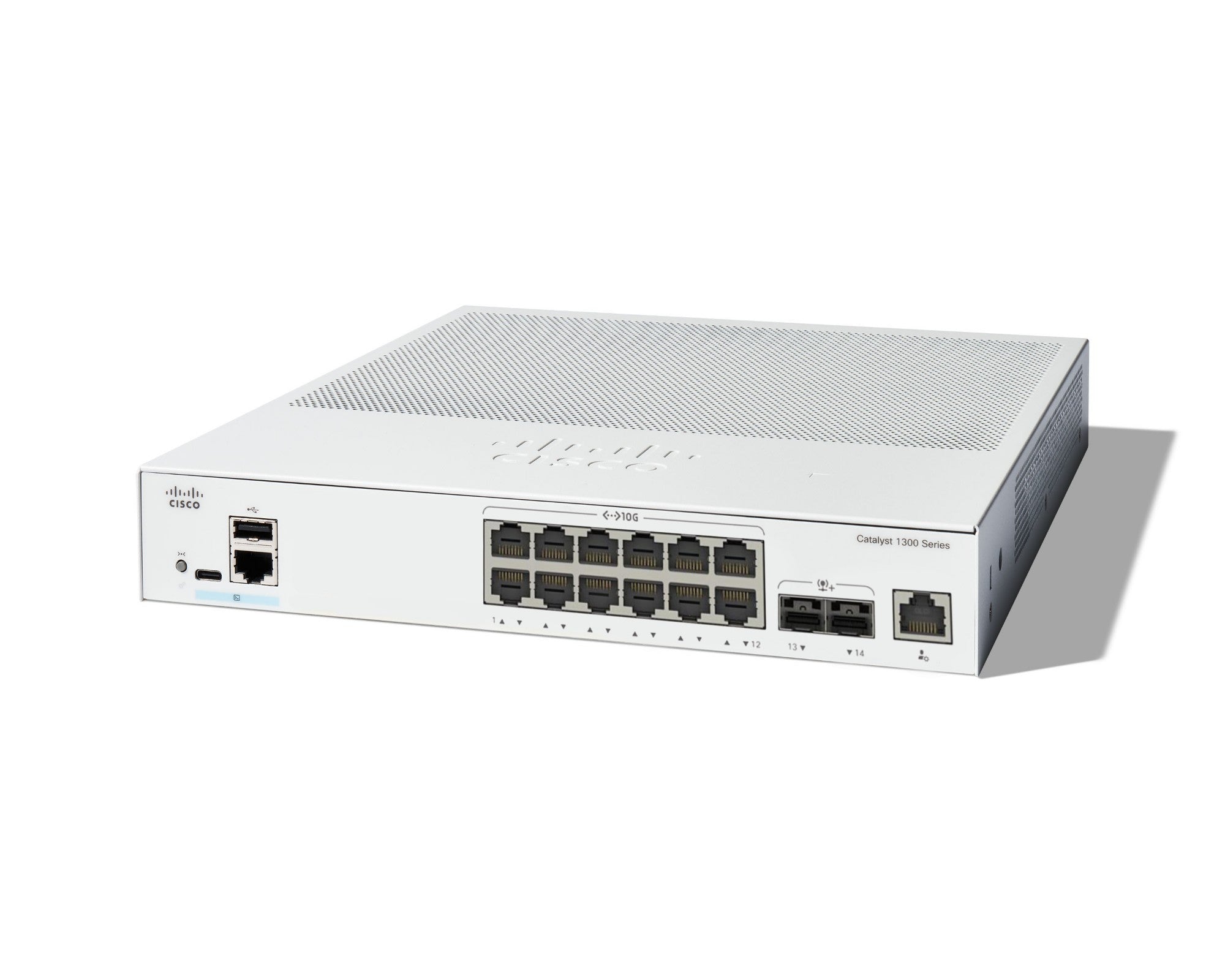

| Product Name | Catalyst 1300-12XT-2X Layer 3 Switch |
| Product Type | Layer 3 Switch |
| Manufacturer | Cisco Systems, Inc. |
| Manufacturer Part Number | C130012XT2X |
| Management | Managed |
| Layer Supported | Layer 3 |
| MTBF | 2,165,105 Hours |
| Features | Fanless |
| High Availability Supported | Yes |
| Application/Usage | Branch Office, Network, Business, Enterprise, Office |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment (WEEE) |
| Certifications & Standards | UL (UL 62368), CSA (CSA 22.2), CE Mark, FCC Part 15 (CFR 47) Class A |
| Package Contents | Catalyst 1300-12XT-2X Layer 3 Switch, Power Cord (Power Adapter for Select 8-Port and 16-Port SKUs), Pointer Card |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Total Network Ports | 12 |
| Port Details | 12 × 10BASE-T Gigabit Ethernet Network Ports; 2 × 10 Gigabit Ethernet SFP+ Expansion Slots; 1 × USB-C Console Port; 1 × USB Port; 1 × RJ-45 Port; 1 × RJ-45 Console Port |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 2 |
| Total Expansion Slots | 2 |
| Network Technology | 10GBase-T, 10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Networking Standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.1ab, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x |
| Power Source | Power Supply |
| Input Voltage | 120 V AC / 230 V AC |
| Frequency | 50 Hz / 60 Hz |
| Power Consumption | 56.70 W |
| Form Factor | Rack-mountable |
| Compatible Rack Unit | 1U |
| Dimensions (H × W × D) | 43.9 × 444.5 × 240 mm |
| Weight | 2.49 kg |
