| Specification | Details |
|---|---|
| Product Type | Layer 3 Switch |
| Brand | Cisco |
| Product Line | Catalyst |
| Product Series | 1300 |
| Product Model | C1300-24XTS |

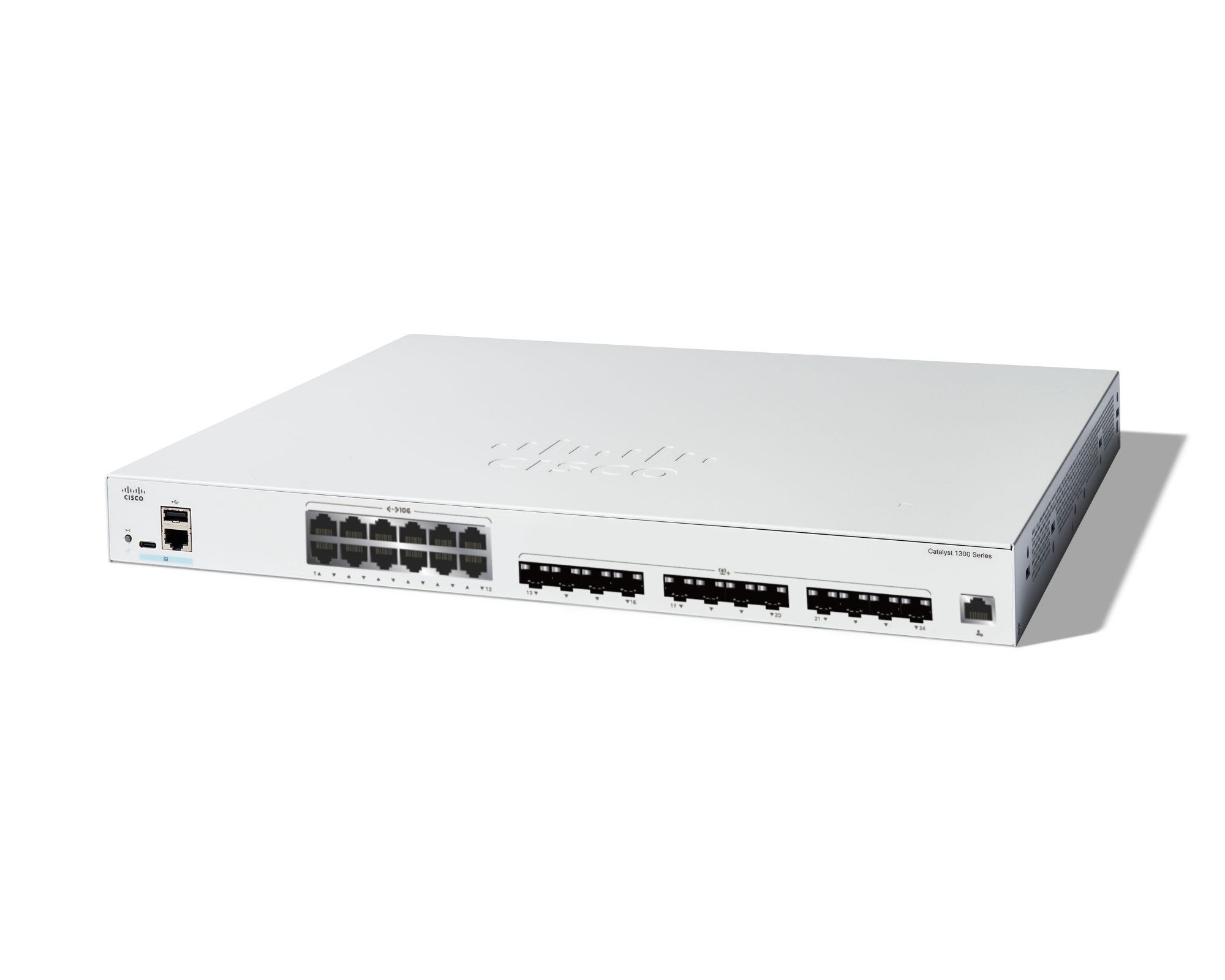

| Product Name | Catalyst 1300 C1300-24XTS Layer 3 Switch |
| Manufacturer | Cisco Systems, Inc. |
| Manufacturer Part Number | C130024XTS |
| Management | Manageable: Yes |
| High Availability | Yes |
| MTBF | 427,188 Hours |
| Expansion Slot Type | SFP+ |
| Number of SFP+ Slots | 12 |
| Total Expansion Slots | 12 |
| Network Ports | 12 × 10 Gigabit Ethernet Ports |
| Port Details | 12 × 10 Gigabit Ethernet SFP+ Expansion Slots, 12 × 10 Gigabit Ethernet Network Ports, 1 × Gigabit Ethernet Management Port, 1 × RJ-45 Console Port, 1 × USB Type-C Port |
| Network Technology | 10GBase-T, 10GBase-X |
| Maximum Data Transfer Rate | 1.25 GB/s |
| Ethernet Technology | 10 Gigabit Ethernet |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Layer Supported | Layer 3 |
| Networking Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3at, IEEE 802.3af, IEEE 802.3az, IEEE 802.3u |
| Power Source | PoE+ |
| Input Voltage | 120 V AC / 230 V AC |
| Frequency | 50 Hz / 60 Hz |
| Power Consumption | 86.70 W |
| PoE Support | Yes |
| PoE Budget | 195 W |
| Application/Usage | Office, Branch Office, Business, Campus, Enterprise, Network |
| Form Factor | Rack-mountable |
| Rack Size | 1U |
| Weight | 4.20 kg |
| Height | 43.9 mm |
| Width | 444.5 mm |
| Depth | 349.8 mm |
