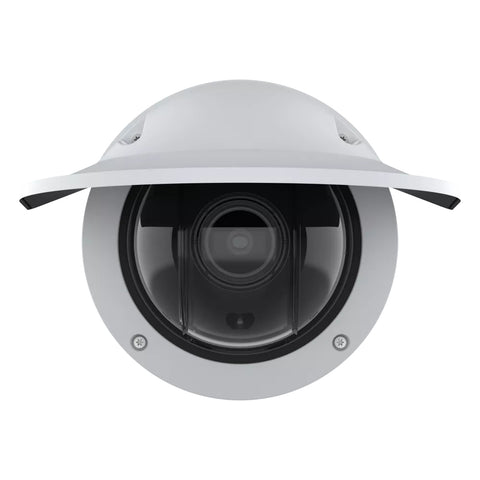

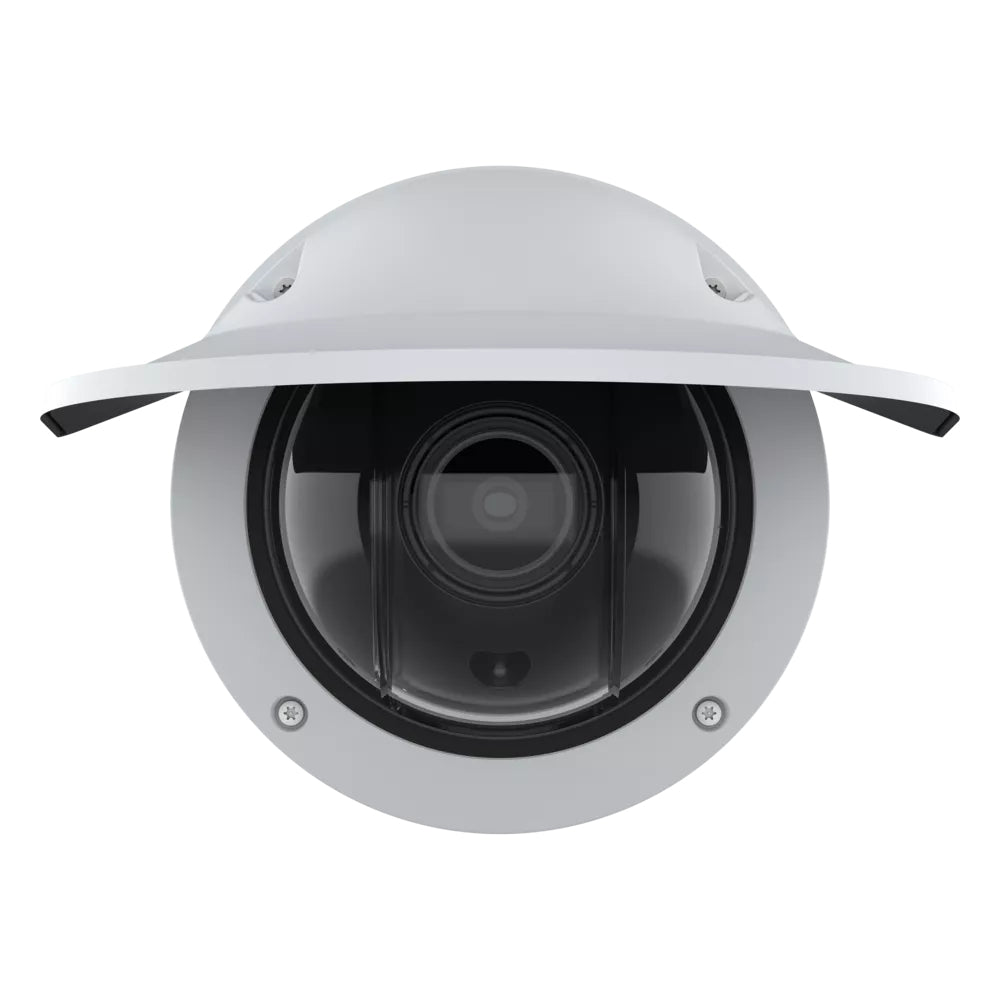

Axis Q3546-LVE Dome IP security camera Indoor & outdoor 2688 x 1512 pixels Ceiling/wall
Vendor:
Axis
SKU:
02971-001
- £1,196.00
-
- £1,196.00
- Unit price
- per
Subtotal:
£1,196.00
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xAXIS Q3546-LVE 4 Megapixel Indoor/Outdoor Network Camera - Colour - Dome - White - TAA Compliant - Infrared Night Vision - H.264B (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), AVI - 2688 x 1512 - 4.70 mm- 10 mm Varifocal Lens - 2.1x Optical - 120 fps - RGB CMOS - Gigabit Ethernet - Bracket Mount - IK10 - IP66, IP6K9K, IP69 - Vandal Resistant, Impact Resistant - Audio Support - Object Analytics, Built-in Cybersecurity, Noise Detection Built on ARTPEC-9, this AI-powered camera offers 4 MP resolutions and delivers outstanding image quality even in the harshest weather and environments. The IR-shielded dome prevents IR reflections ensuring clear, sharp video every time. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. For instance, it comes with AXIS Object Analytics preinstalled to detect and track objects. Made from high-grade aluminum, this robust camera is both vandal- and impact-resistant. Furthermore, Axis Edge Vault, a hardware-based cybersecurity platform, safeguards the device and protects sensitive information from unauthorized access
Features
x- Network camera - Helps achieve high-quality video results
- Up to 2688 x 1512 resolution for surveillance in real-time
- Features RGB CMOS sensor
- 10 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- f/1.1 maximum aperture for better light absorption and dependable, better-quality results
- 2.1x optical zoom for bringing the subject closer for maximum surveillance efficiency
- Infrared night vision type efficiently detects infrared waves that are invisible to the naked eye
- P-iris camera iris with dependable visual output with maximum feasibility and convenience
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
- PoE power source type for your network camera provides optimal performance with maximum usability
Technical Specs
x| Specification | Details |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL, FCC, ICES, CE, KC, VCCI, RCM, WEEE |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Protection features | Impact resistant, Vandal proof |
| LED indicators | Yes |
| International Protection (IP) code | IP66, IP6K9K |
| Housing material | Aluminum, Plastic |
| Minimum illumination | 0.01 lx |
| Tilt angle range | -42 - 80° |
| Pan range | -180 - 180° |
| Angle of rotation | 360° |
| Camera shutter speed | 1/49500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Camera pixel size | 2.9 µm |
| Lens viewing angle, horizontal | 101° |
| Lens viewing angle, vertical | 54° |
| Sensor type | CMOS |
| Optical sensor size | 1/1.8" |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Maximum aperture number | 1.2 |
| Minimum aperture number | 1.1 |
| Auto focus | Yes |
| Closest focusing distance | 0.5 m |
| Zoom capability | Yes |
| Optical zoom | 2.2x |
| Lens diameter | 1 cm |
| Focal length range | 4.7 - 10 mm |
| Recognize distance (wide) | 13 m |
| Recognize distance (tele) | 28 m |
| Observe distance (wide) | 26 m |
| Observe distance (tele) | 56 m |
| Identify distance (wide) | 6.4 m |
| Identify distance (tele) | 14 m |
| Detect distance (wide) | 65 m |
| Detect distance (tele) | 141 m |
| Night vision | Yes |
| Night vision distance | 60 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Flip & mirror | Yes |
| Image stabilizer | Yes |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 2688 x 1512 pixels |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1280 x 800 (WXGA), 2688 x 1512 |
| Frame rate | 120 fps |
| Video streaming | Yes |
| Total megapixels | 4 MP |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 4000 MB |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Privacy protection | Yes |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, Moving object |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, HTTPS, MSCHAPv2, PEAP, TLS |
| Active tampering alarm | Yes |
| Human and vehicle targets classification | Yes |
| Doesn't contain | CFR, PVC/BFR |
| Compliance certificates | REACH, RoHS, Trade Agreements Act (TAA) |
| Power source type | PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (typical) | 6.3 W |
| Operating temperature | -50 - 55 °C |
| Storage temperature | -40 - 65 °C |
| Operating relative humidity | 10 - 100% |
| Storage relative humidity | 5 - 95% |
| Width | 239 mm |
| Depth | 211 mm |
| Height | 183 mm |
| Weight | 2.36 kg |
| Number of cameras | 1 |
| Sun shield included | Yes |
