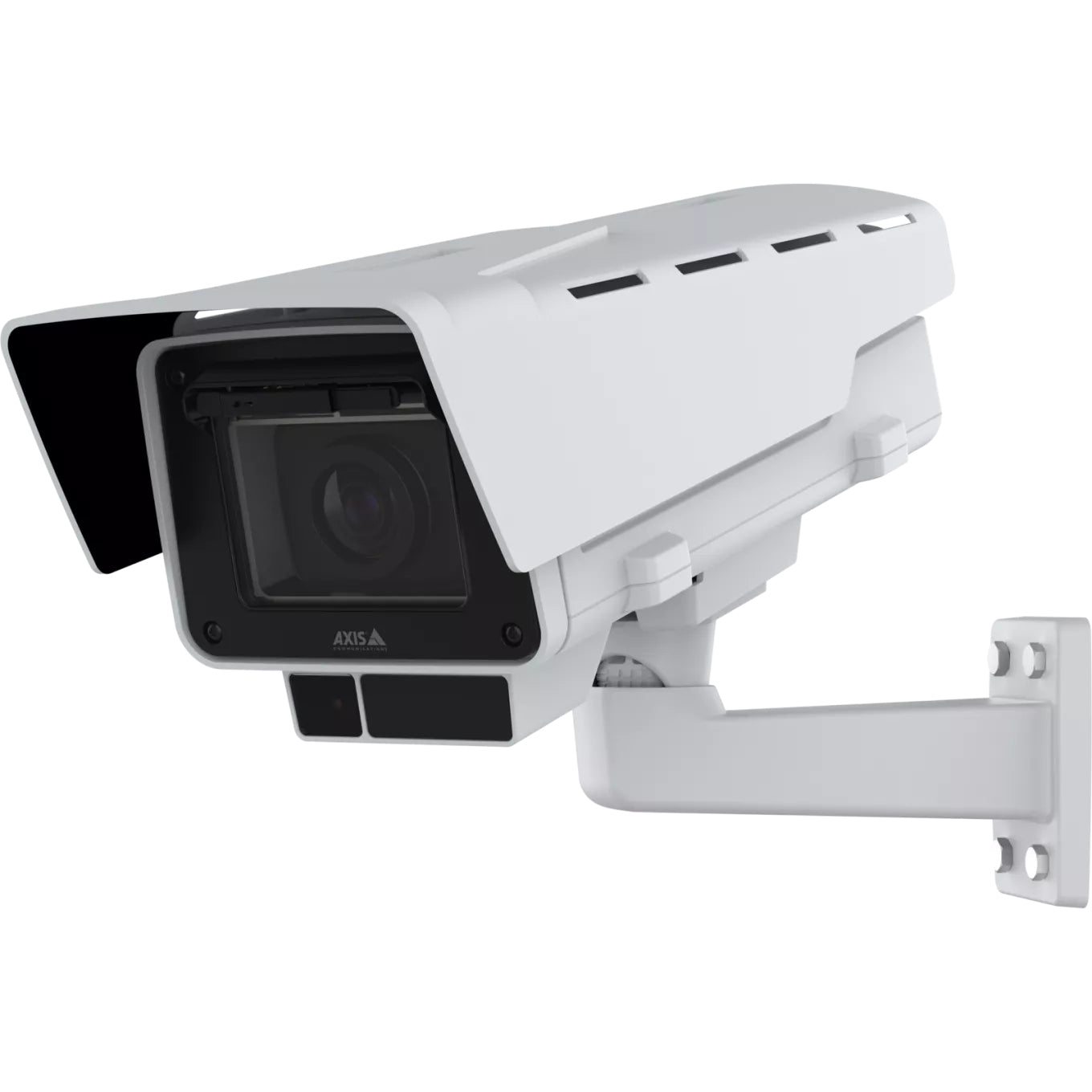

Axis Q1728-LE Box IP security camera Indoor & outdoor 3840 x 2160 pixels Wall
Vendor:
Axis
SKU:
03210-001
- £1,698.32
-
- £1,698.32
- Unit price
- per
Subtotal:
£1,698.32
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xAXIS Q1728-LE 8 Megapixel Outdoor 4K Network Camera - Colour - TAA Compliant - Infrared Night Vision - H.264B (MPEG-4 Part 10/AVC), H.264M (MPEG-4 Part 10/AVC), H.264H (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, Zipstream, H.265, H.264, H.264B, H.264M, H.264H - 3840 x 2160 - 5.90 mm- 13.30 mm Varifocal Lens - 2.3x Optical - 60 fps - RGB CMOS - Gigabit Ethernet - Wall Mount - IK10 - IP66, IP67 - Audio Support 8 MP, superior light-sensitivity, outdoor camera Built on ARTPEC-9, this AI-powered camera offers 4K and a large 1/1.2" sensor for outstanding performance even in low-light. A deep learning processing unit lets you run advanced features and powerful analytics on the edge. Preinstalled with AXIS Object Analytics, it detects and tracks objects. And AXIS Image Health Analytics notifies you if your image is blocked, degraded, underexposed, or redirected. Axis Zipstream with support for AV1 and H.264/H.265 significantly reduces bandwidth and storage needs. Furthermore, it's available with wide or tele lens, and a front window with carbon nanotube film heater guarantees great images every time.
Features
x- Network camera designed for reliable remote surveillance and real-time monitoring applications.
- Supports resolution of up to 3840 × 2160 for clear, detailed, and high-quality real-time surveillance footage.
- Features an RGB CMOS sensor for accurate image capture and dependable video performance.
- 13.30 mm maximum focal length provides dependable identification distances with improved surveillance coverage.
- f/1.6 maximum aperture delivers reliable, sharp, and detailed image output across suitable lighting conditions.
- 2.3x optical zoom brings subjects closer while maintaining image quality for enhanced surveillance efficiency.
- 4K recording delivers stunning, vivid, and highly detailed video results for advanced surveillance applications.
- Infrared night vision consumes minimal electrical power while providing high-quality nighttime surveillance footage.
- P-Iris technology provides precise iris control for dependable image output across changing lighting conditions.
- Varifocal lens enables flexible focal adjustment for enhanced surveillance productivity and adaptable monitoring.
Technical Specs
x| Specification | Detail |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| PTZ modes | Digital PTZ |
| PTZ protocols | Pelco-D |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE, EAC, FCC, ICES, KC, RCM, UL, VCCI, TAA |
| IK code | IK10 |
| Form factor | Box |
| Product colour | Black, White |
| Mounting type | Wall |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminum, Plastic |
| Minimum illumination | 0.01 lx |
| Camera shutter speed | 1/66500 - 2 s |
| Lens viewing angle, horizontal | 49 - 108° |
| Lens viewing angle, vertical | 27 - 58° |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Optical sensor size | 1/1.2" |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Maximum aperture number | 2.9 |
| Auto focus | Yes |
| Recognize distance (wide) | 665.4" (16.9 m) |
| Recognize distance (tele) | 1401.6" (35.6 m) |
| Observe distance (wide) | 1322.8" (33.6 m) |
| Observe distance (tele) | 2779.5" (70.6 m) |
| Identify distance (wide) | 334.6" (8.5 m) |
| Identify distance (tele) | 700.8" (17.8 m) |
| Detect distance (wide) | 3330.7" (84.6 m) |
| Detect distance (tele) | 7003.9" (177.9 m) |
| Closest focusing distance | 19.7" (0.5 m) |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Lens diameter | 0.512" (1.3 cm) |
| Focal length range | 5.9 - 13.3 mm |
| Night vision | Yes |
| Night vision distance | 50 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto |
| Bit rate control | Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 160 x 120, 2560 x 1600 (WQXGA), 2592 x 1944, 3840 x 2160 |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 8 MP |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Audio formats supported | AAC-LC, ADPCM, G.726, OPUS, PCM |
| Audio detection | Yes |
| Sample rates | 8 - 48 kHz |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, PTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog, Link-Local address (ZeroConf) |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash memory | 8000 MB |
| RAM capacity | 4000 MB |
| Terminal block port | Yes |
| RS-485 ports | 1 |
| Microphone in | Yes |
| DC-in jack | Yes |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Line crossing detection |
| Human and vehicle targets classification | Yes |
| Doesn't contain | CFR, PVC/BFR |
| Compliance certificates | REACH, RoHS |
| Power source type | DC, PoE |
| Power consumption (max) | 25.5 W |
| Power consumption (Power over Ethernet (PoE)) | 25.5 W |
| Power consumption (typical) | 7.8 W |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 7.01" (178 mm) |
| Depth | 16.9" (429 mm) |
| Height | 7.05" (179 mm) |
| Weight | 10.6 lbs (4.8 kg) |
| Number of cameras | 1 |
| Wiper included | Yes |
