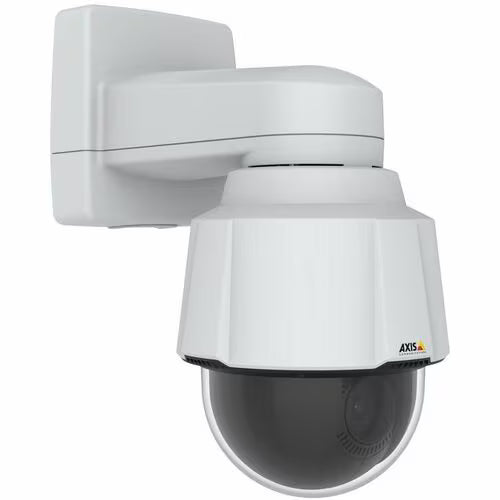

Axis P5654-E Mk II 50HZ Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Vendor:
Axis
SKU:
02914-001
- £1,561.04
-
- £1,561.04
- Unit price
- per
Subtotal:
£1,561.04
Couldn't load pickup availability
Delivery
Order by 4:30pm UK Time (excluding weekends and Bank Holidays) for UK Mainland next working day delivery. Shipping rates applicable only to UK Mainland Addresses and exclude Northern Ireland, Eire, Scottish Offshore, Scottish Highlands, Channel Islands and Isle of Man.
Standard £5.00 - 3 to 5 business days
Express £15.00 - 1 to 2 business days
Description
xAXIS P5654-E Mk II Full HD Network Camera - Colour - White - TAA Compliant - H.264 (MPEG-4 Part 10/AVC), H.265 (MPEG-H Part 2/HEVC), Motion JPEG, H.264, H.265, Zipstream, H.264B, H.264H, H.264M - 1920 x 1080 - 4 mm- 84.60 mm Varifocal Lens - 21x Optical - 60 fps - RGB CMOS - Fast Ethernet - Ceiling Mount - IK10 - IP66 - Weather Resistant, Impact Resistant This cost-effective PTZ camera offers great image quality in HDTV 1080p with 21x optical zoom and wide area coverage with 77° field of view. Thanks to Lightfinder 2.0 and Forensic WDR, it provides true colors and great detail in challenging light or near darkness. Including Axis Object Analytics, it can detect and classify people and vehicles- all tailored to specific needs. With IP66, NEMA 4X, and IK10 ratings, this robust and resistant camera can handle temperatures ranging from -30 °C to 50 °C (-22 °F to 122 °F). Furthermore, Axis Edge Vault safeguards your device and protects sensitive information from unauthorized access.
Features
x- For remote surveillance needs, this network camera is best suited
- Up to 1920 x 1080 video resolution
- Features RGB CMOS sensor
- 84.60 mm maximum focal length with sharp output to help identify and locate the object with added efficiency
- 21x optical zoom ensures maximum surveillance productivity without compromising quality
- Full HD recording format for a lively video quality experience with maximum dependability
- Auto camera iris automatically adjusts the iris in order to regulate and optimise the amount of light or infrared energy a camera receives
- Varifocal lens type for sharp, detailed focus to ensure maximum surveillance usability
- PoE+ power source type for your network camera better reliance and maximum energy dependability
- Ceiling Mount mount type ensures optimal results and maximum convenience
Technical Specs
x| Specification | Details |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | UL/cUL, UKCA, CE, KC, EAC, RCM, TAA |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling |
| International Protection (IP) code | IP66 |
| Housing material | Aluminum, Polycarbonate (PC) |
| Minimum illumination | 0.01 lx |
| Tilt angle range | 0 - 180° |
| Tilt speed | 350 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 350 °/sec |
| Camera shutter speed | 1/66500 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 77 - 3.6° |
| Lens viewing angle, vertical | 43.1 - 2° |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Number of lenses | 1 |
| Maximum aperture number | 4.5 |
| Auto focus | Yes |
| Recognize distance (wide) | 433.1" (11 m) |
| Recognize distance (tele) | 8858.3" (225 m) |
| Observe distance (wide) | 905.5" (23 m) |
| Observe distance (tele) | 17716.5" (450 m) |
| Identify distance (wide) | 236.2" (6 m) |
| Identify distance (tele) | 4330.7" (110 m) |
| Detect distance (wide) | 2244.1" (57 m) |
| Detect distance (tele) | 44094.5" (1120 m) |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 21x |
| Digital zoom | 12x |
| Focal length range | 4 - 84.6 mm |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 320 x 180 |
| Supported video modes | 1080p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3at |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS), IEEE 802.1AR |
| ROM capacity | 1024 MB |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ethernet LAN (RJ-45) ports | 1 |
| Doesn't contain | PVC |
| Compliance certificates | REACH, RoHS |
| Alert notification type | |
| Intelligent Video Surveillance (IVS) system features | Crossing line, Face detection, Human detection, Moving object, Vehicle detection |
| Video motion detection | Yes |
| Security algorithms | EAP-TLS, HTTPS, TLS |
| Pixel counter | Yes |
| Human and vehicle targets classification | Yes |
| Power source type | PoE |
| Power consumption (max) | 16 W |
| Power consumption (typical) | 8 W |
| Operating temperature (T-T) | -30 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 7.4" (188 mm) |
| Depth | 7.4" (188 mm) |
| Height | 8.54" (217 mm) |
| Weight | 5.51 lbs (2.5 kg) |
| License plate recognition | Yes |
| Number of cameras | 1 |
| Mounting kit | Yes |
