| Specification | Details |
|---|---|
| Infrared (IR) cut-off filter | Yes |
| Fog proof | Yes |

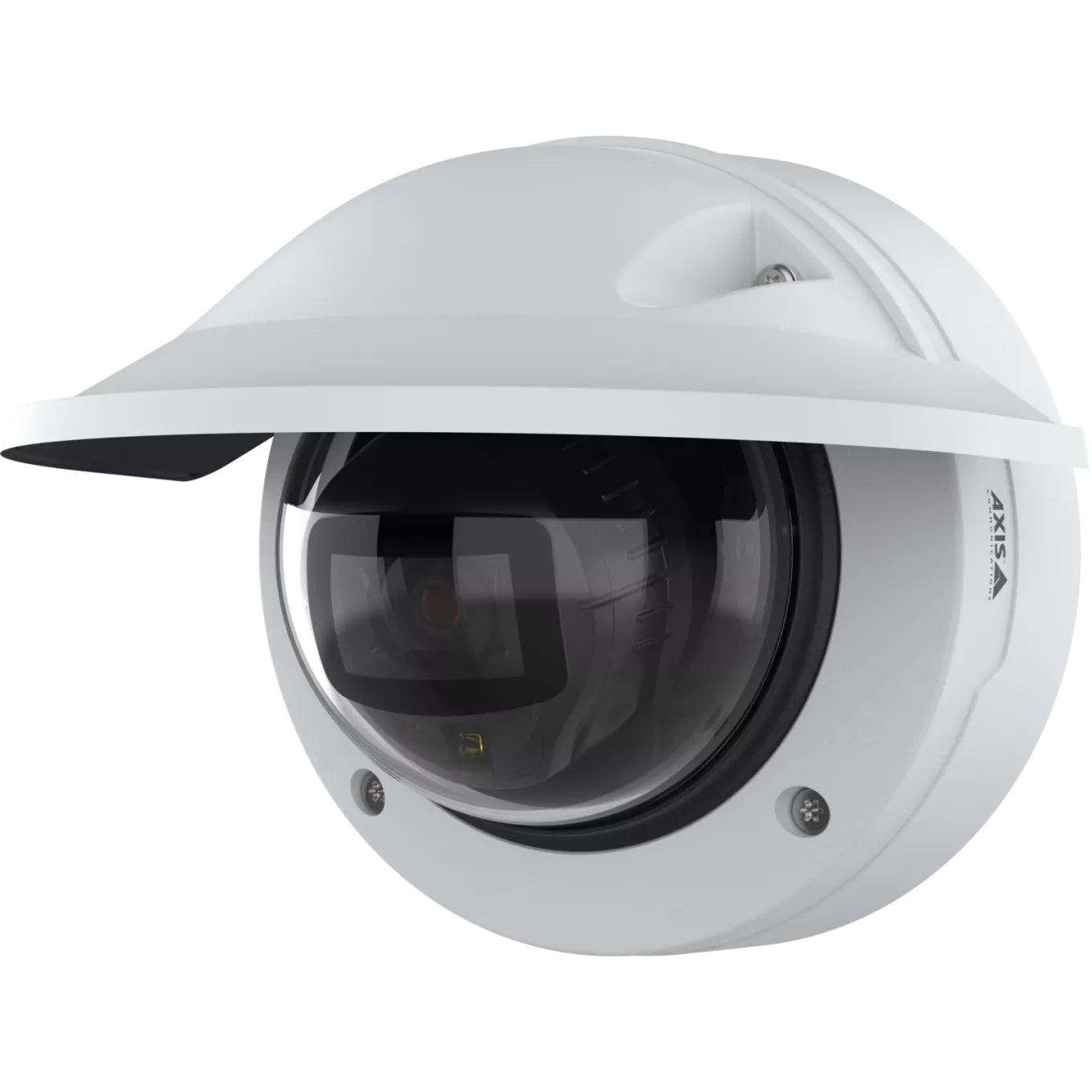

| Type | IP security camera |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Placement supported | Indoor & outdoor |
| Auto-tracking | Yes |
| Tour recording | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| People counting function | Yes |
| Weatherproof | Yes |
| IK code | IK10 |
| Form factor | Dome |
| Product colour | Black, White |
| Mounting type | Ceiling/wall |
| Protection features | Impact resistant, vandal-proof |
| LED indicators | Yes |
| International Protection (IP) code | IP66 |
| Housing material | Plastic, Polycarbonate (PC) |
| Minimum illumination | 0.02 lx |
| Tilt angle range | -50 - 80° |
| Pan range | -190 - 190° |
| Angle of rotation | 190° |
| Camera shutter speed | 1/37000 - 2 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 100° |
| Lens viewing angle, vertical | 52° |
| Progressive scan | Yes |
| Sensor type | CMOS |
| Optical sensor size | 1/2.8" |
| Number of sensors | 1 |
| Signal-to-Noise Ratio (SNR) (panoramic camera) | 55 dB |
| Number of lenses | 1 |
| Maximum aperture number | 2.7 |
| Auto focus | Yes |
| Recognize distance (wide) | 378" (9.6 m) |
| Recognize distance (tele) | 1063" (27 m) |
| Observe distance (wide) | 748" (19 m) |
| Observe distance (tele) | 2126" (54 m) |
| Identify distance (wide) | 189" (4.8 m) |
| Identify distance (tele) | 551.2" (14 m) |
| Detect distance (wide) | 1889.8" (48 m) |
| Detect distance (tele) | 5315" (135 m) |
| Closest focusing distance | 39.4" (1 m) |
| Minimum aperture number | 1.4 |
| Lens diameter | 0.394" (1 cm) |
| Focal length range | 3.4 - 9.8 mm |
| Night vision | Yes |
| Night vision distance | 40 m |
| LED type | IR |
| Infra-red wavelength | 850 nm |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Text caption overlay | Yes |
| Flip & mirror | Yes |
| Gain control type | Auto |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Maximum resolution | 1920 x 1080 pixels |
| Video formats supported | AV1, AVC, H.264, H.265, HEVC, M-JPEG, MPEG4 |
| Supported graphics resolutions | 1280 x 800, 1440 x 1080, 1920 x 1080 (HD 1080) |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Total megapixels | 2 MP |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Audio formats supported | AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM |
| Audio detection | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1AE, IEEE 802.1x, IEEE 802.3af |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIBII), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP, ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Internal memory | 2000 MB |
| Flash memory | 8 MB |
| Terminal block port | Yes |
| Microphone in | Yes |
| Doesn't contain | BFR, PVC |
| Compliance certificates | CE, EAC, EMC, FCC, ICES, KC, RCM, REACH, RoHS, TAA, UKCA, UL, VCCI, cUL |
| Privacy protection | Yes |
| Intelligent Video Surveillance (IVS) system features | Line crossing detection, moving object |
| Security algorithms | 256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP |
| Human and vehicle targets classification | Yes |
| Power source type | PoE |
| Power consumption (max) | 10 W |
| Power consumption (typical) | 3.4 W |
| Operating temperature (T-T) | -40 - 50 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 10 - 100% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 7.2" (183 mm) |
| Depth | 6.14" (156 mm) |
| Height | 4.21" (107 mm) |
| Weight | 29.6 oz (840 g) |
| Number of cameras | 1 |
| Manual | Yes |
